Gas control Panel technical datasheet

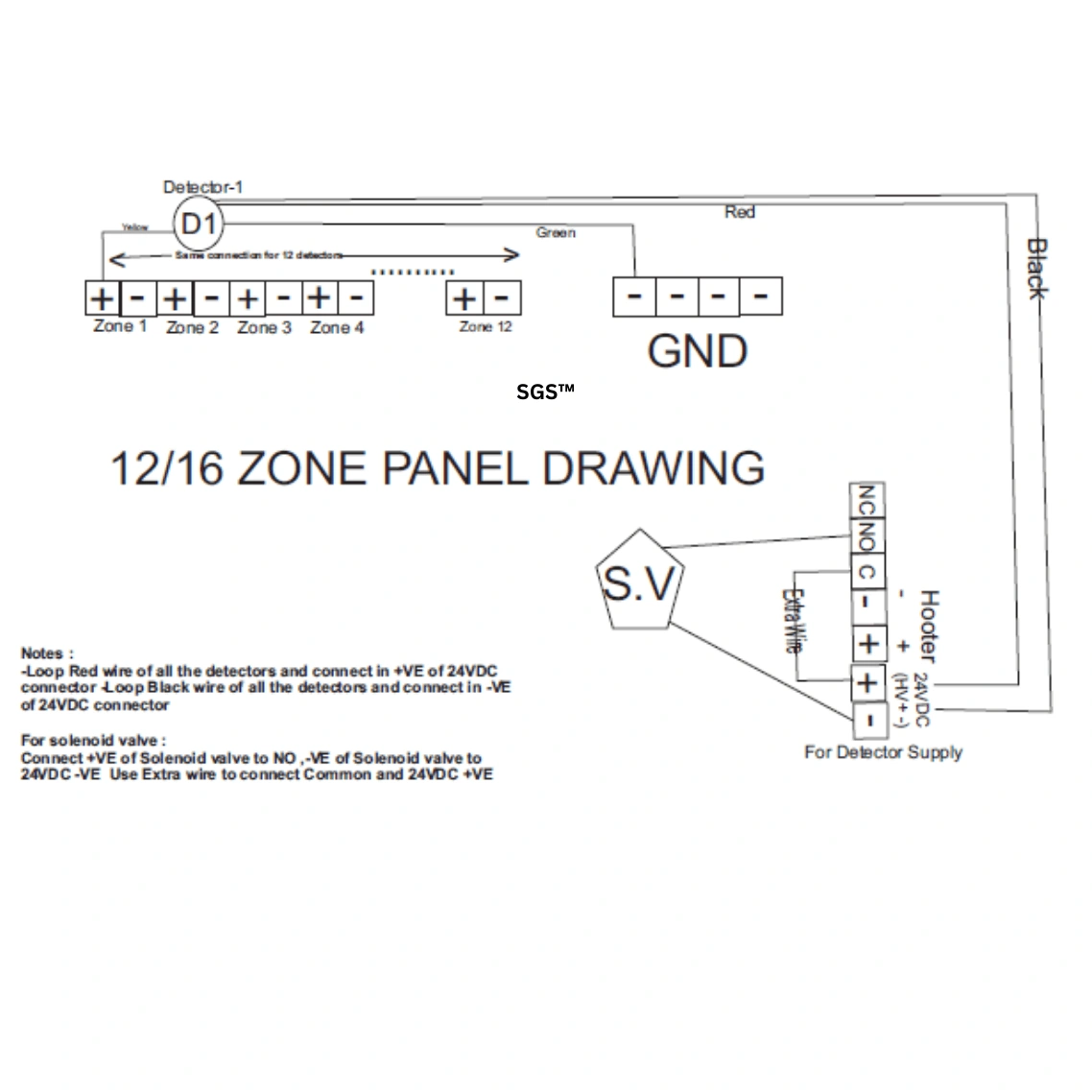

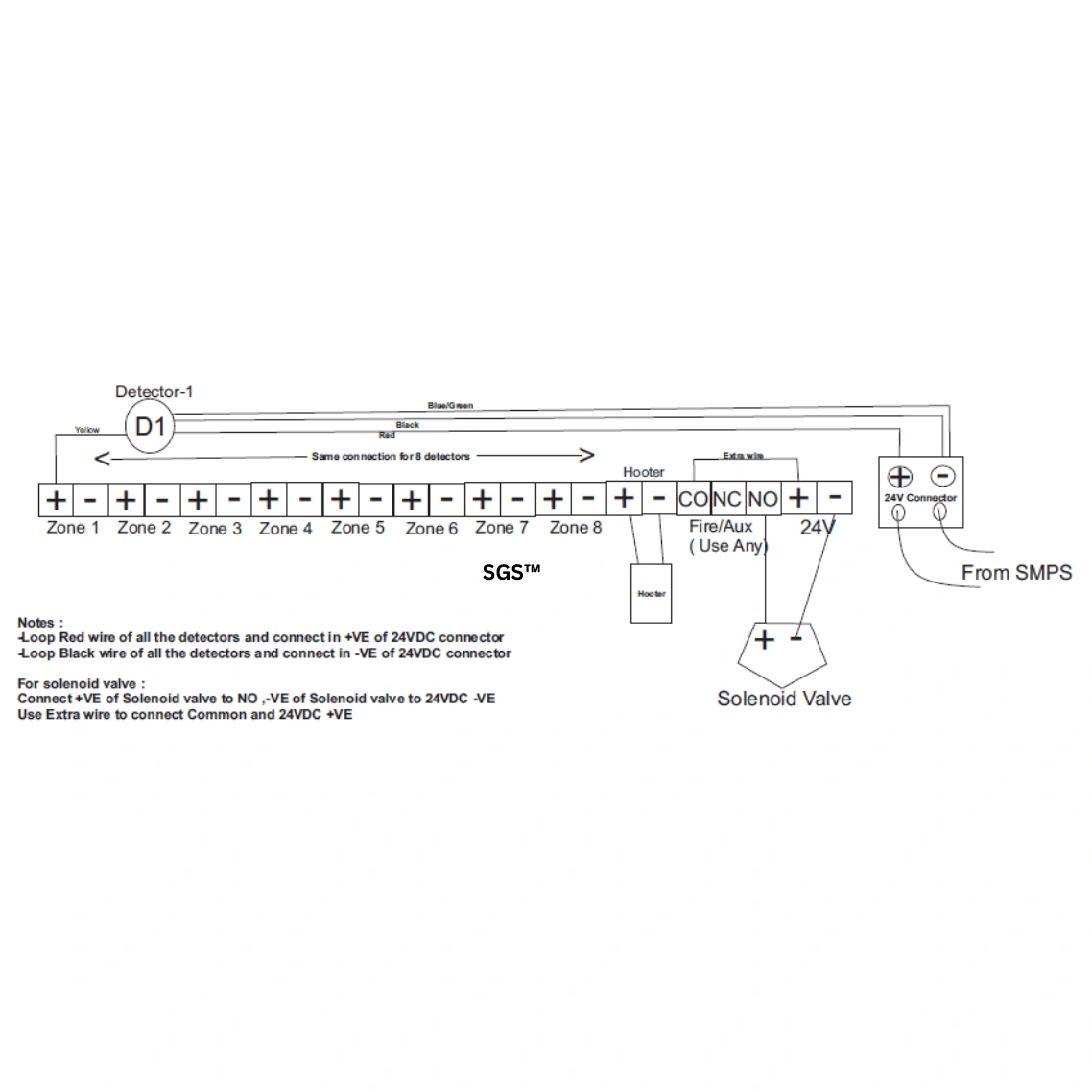

NEW GAS CONTROL PANEL DRAWING 4to16

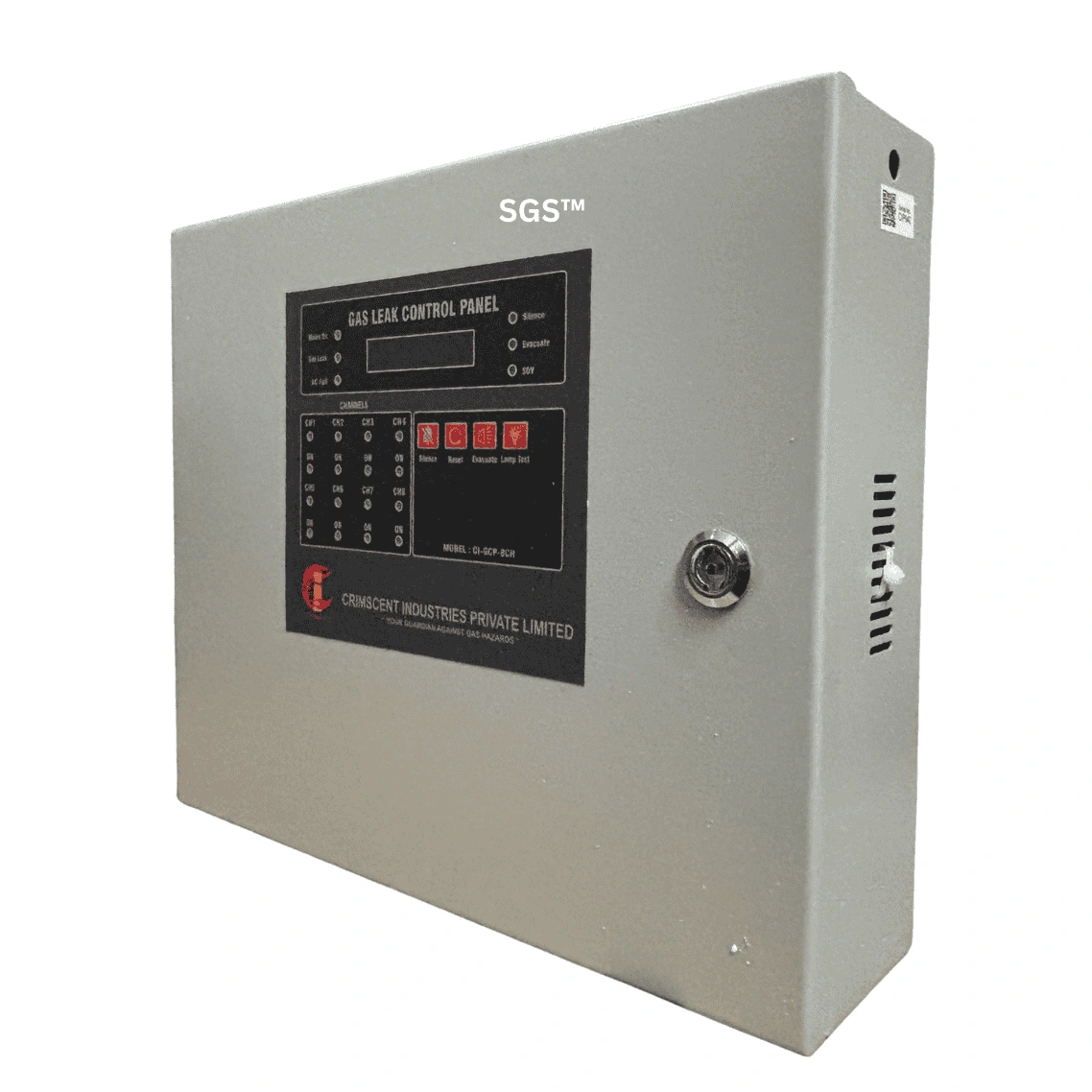

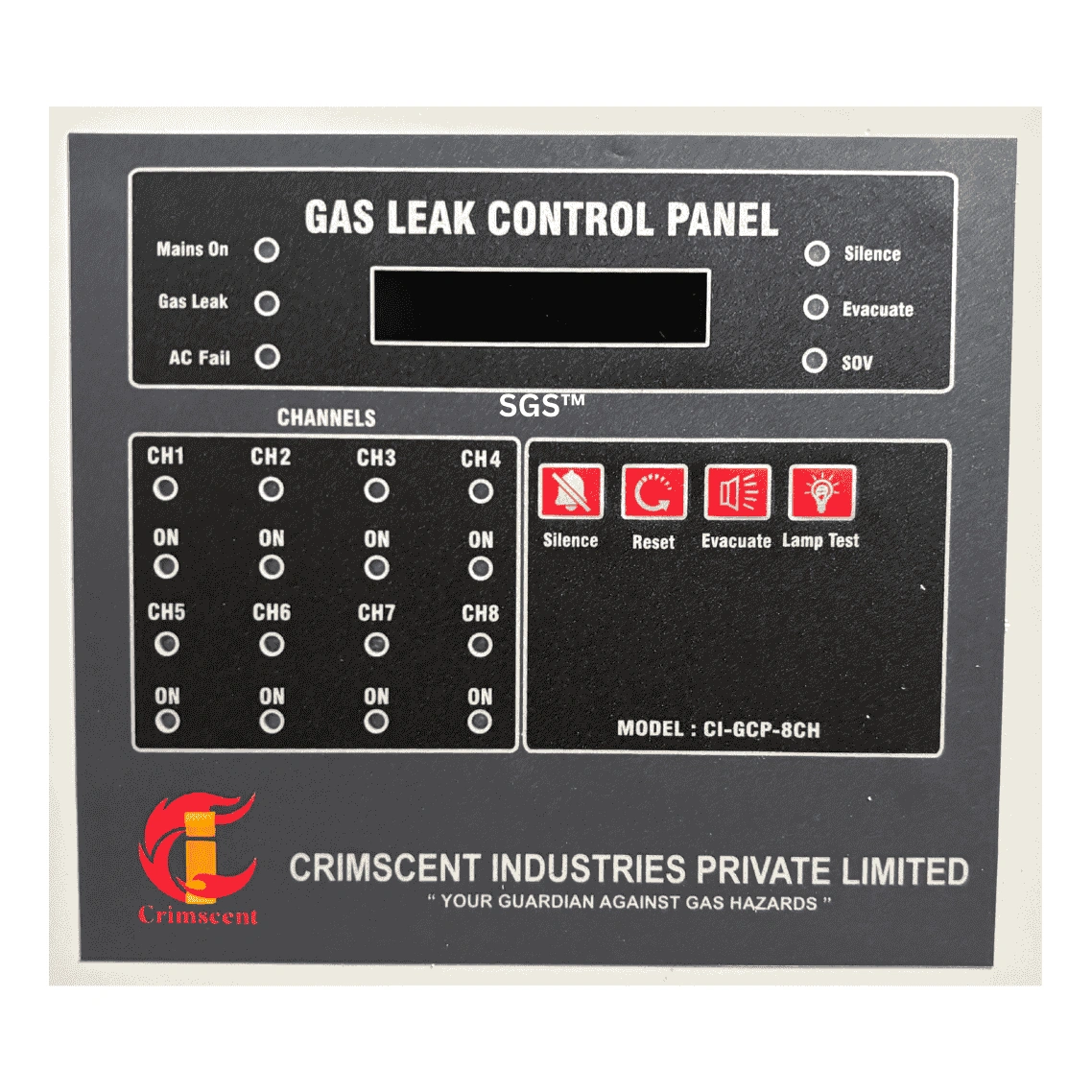

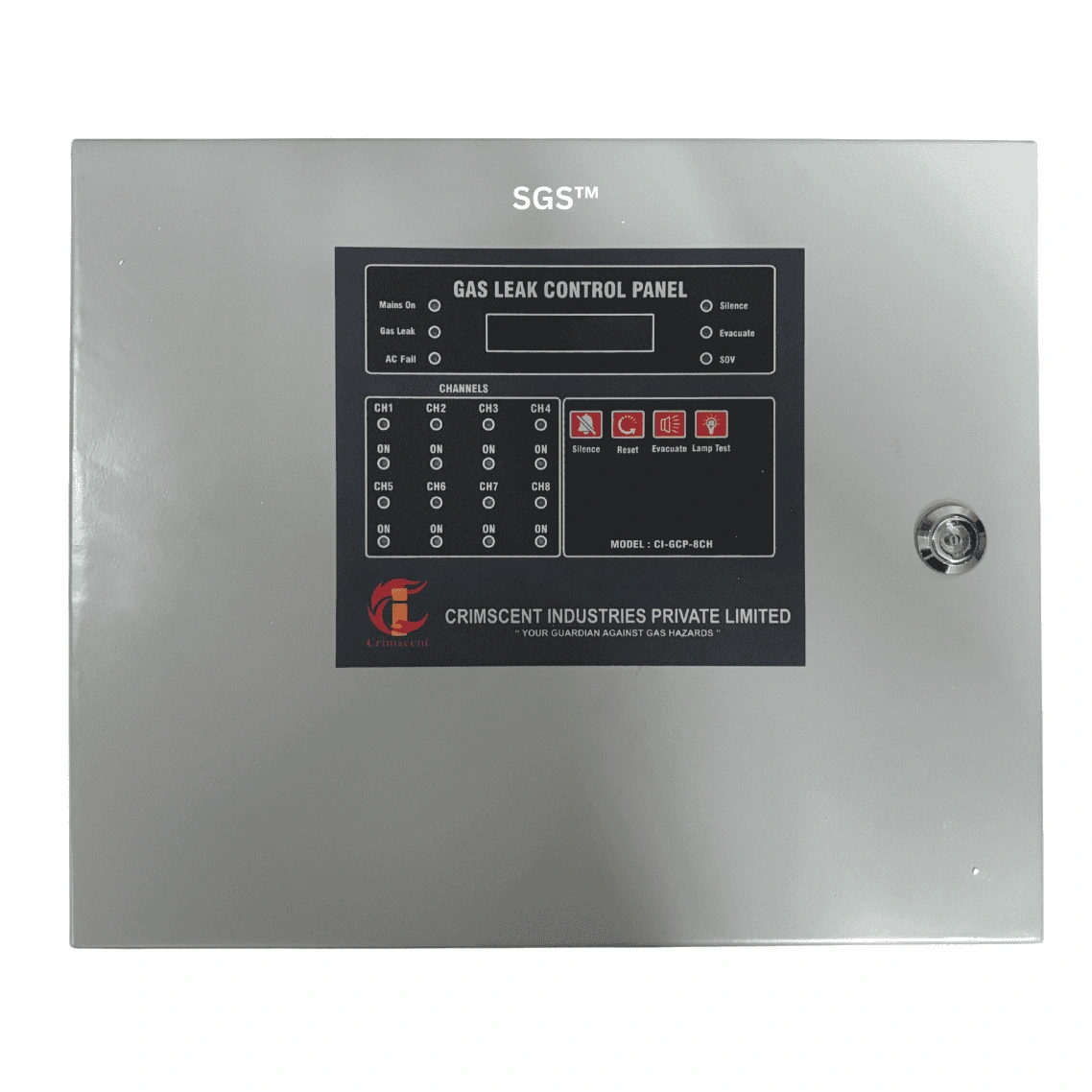

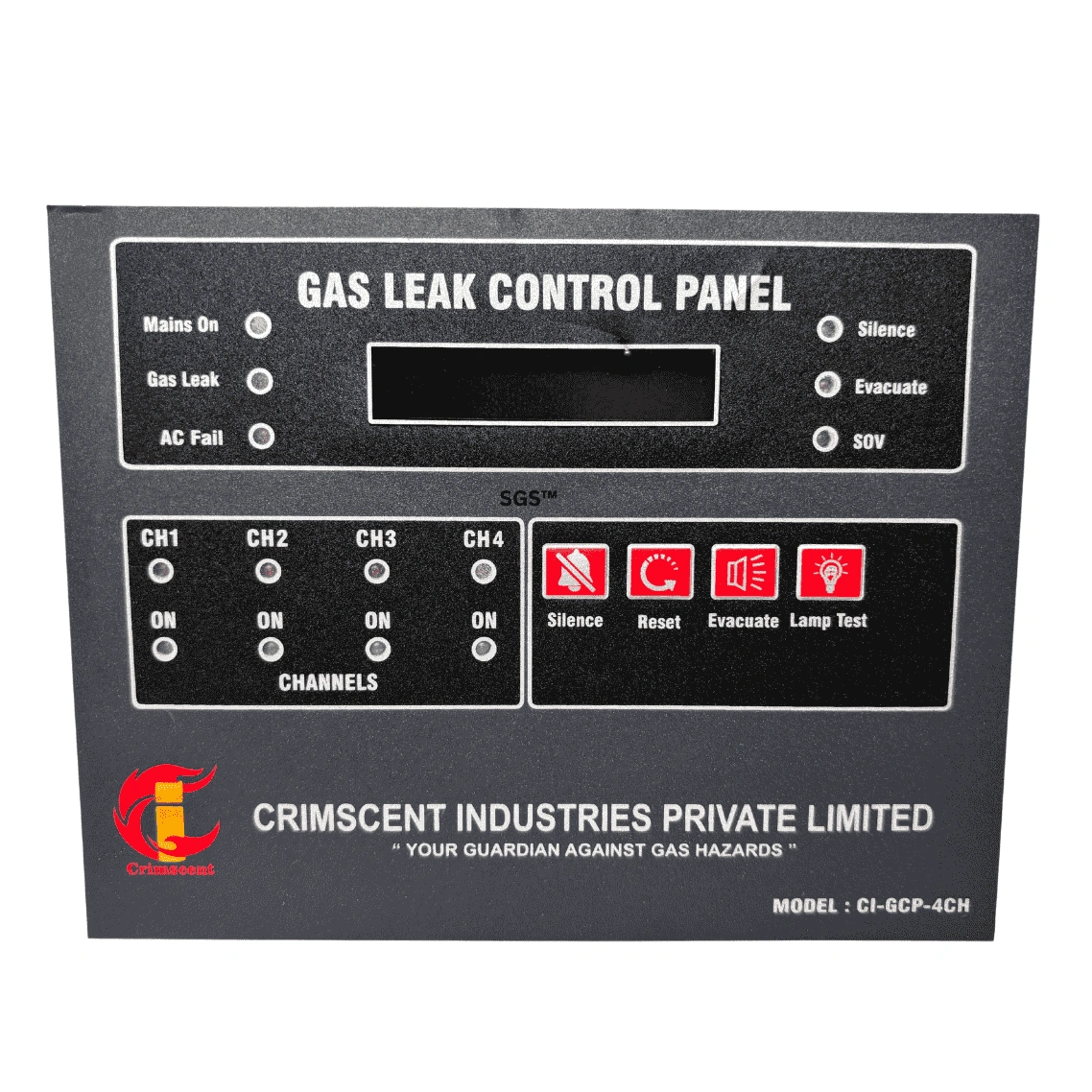

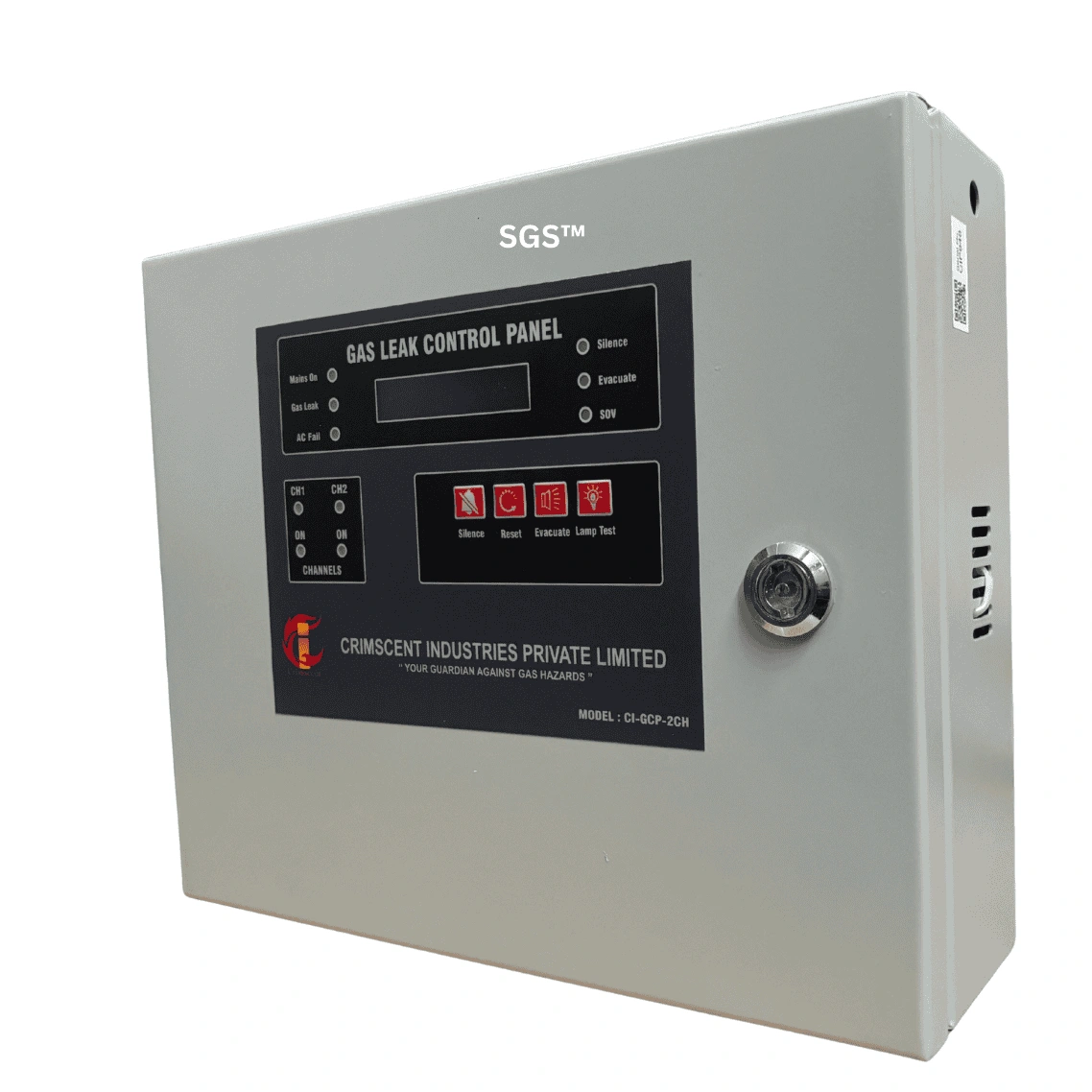

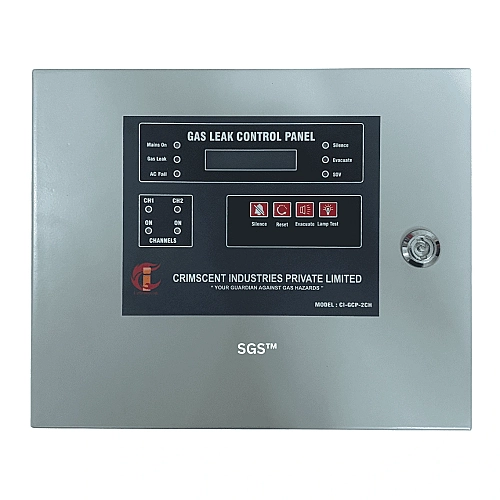

Crimscent Gas Leak Control Panel is an advanced multi-zone gas detection and safety control system designed for industrial and commercial environments. It provides centralized monitoring with automatic solenoid shut-off and hooter alarm activation for gas leak emergencies.
The Crimscent Gas Leak Control Panel is a centralized gas leak detection and control system designed for industrial and commercial safety applications.
It provides real-time monitoring across multiple zones, allowing quick detection and response to gas leakage conditions in different areas of a facility.

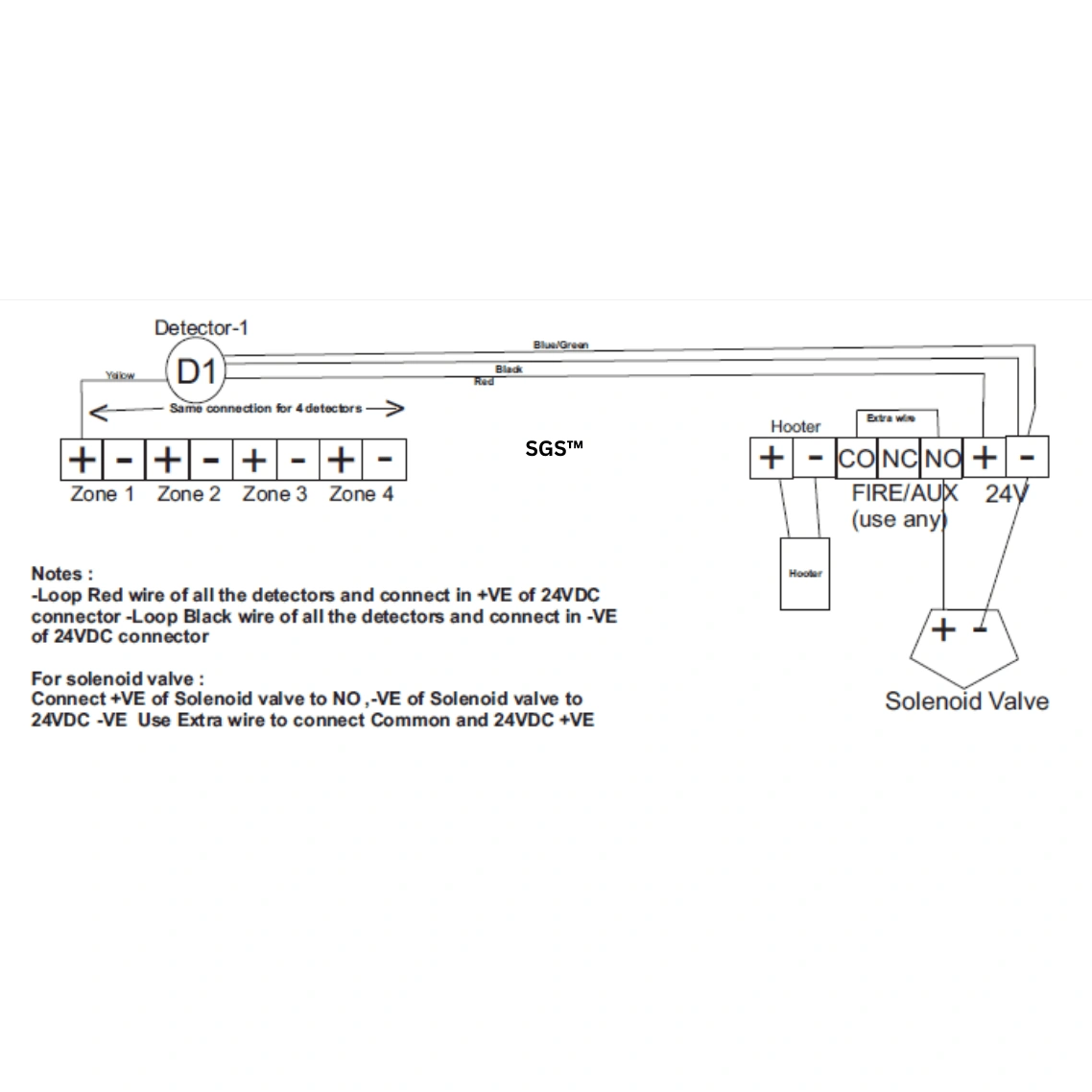

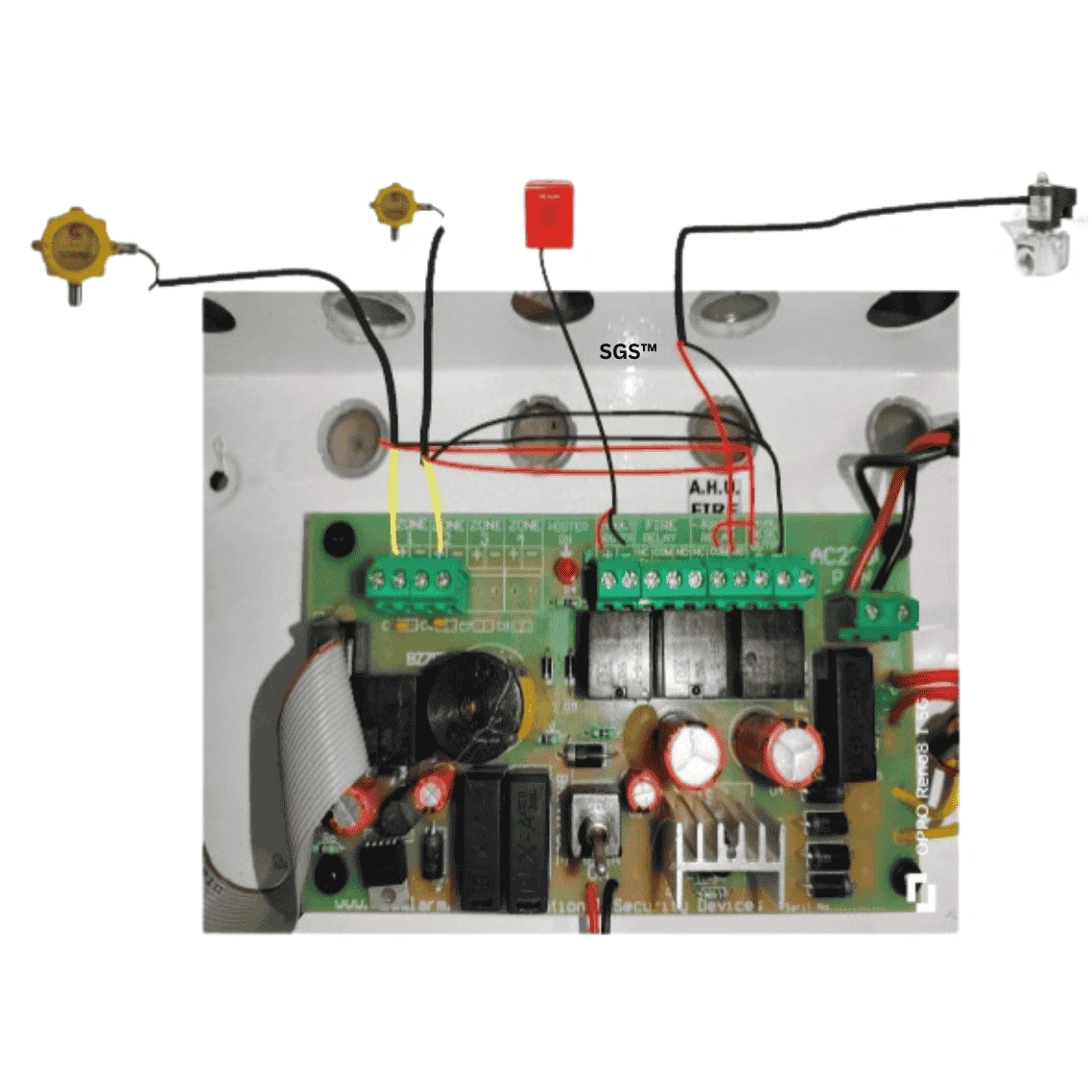

The system is designed to integrate with gas sensors, solenoid valves, and hooter alarm systems, enabling automatic emergency response during gas leak events.
With a scalable architecture ranging from 2-zone to 16-zone configurations, it is suitable for both small installations and large industrial plants.

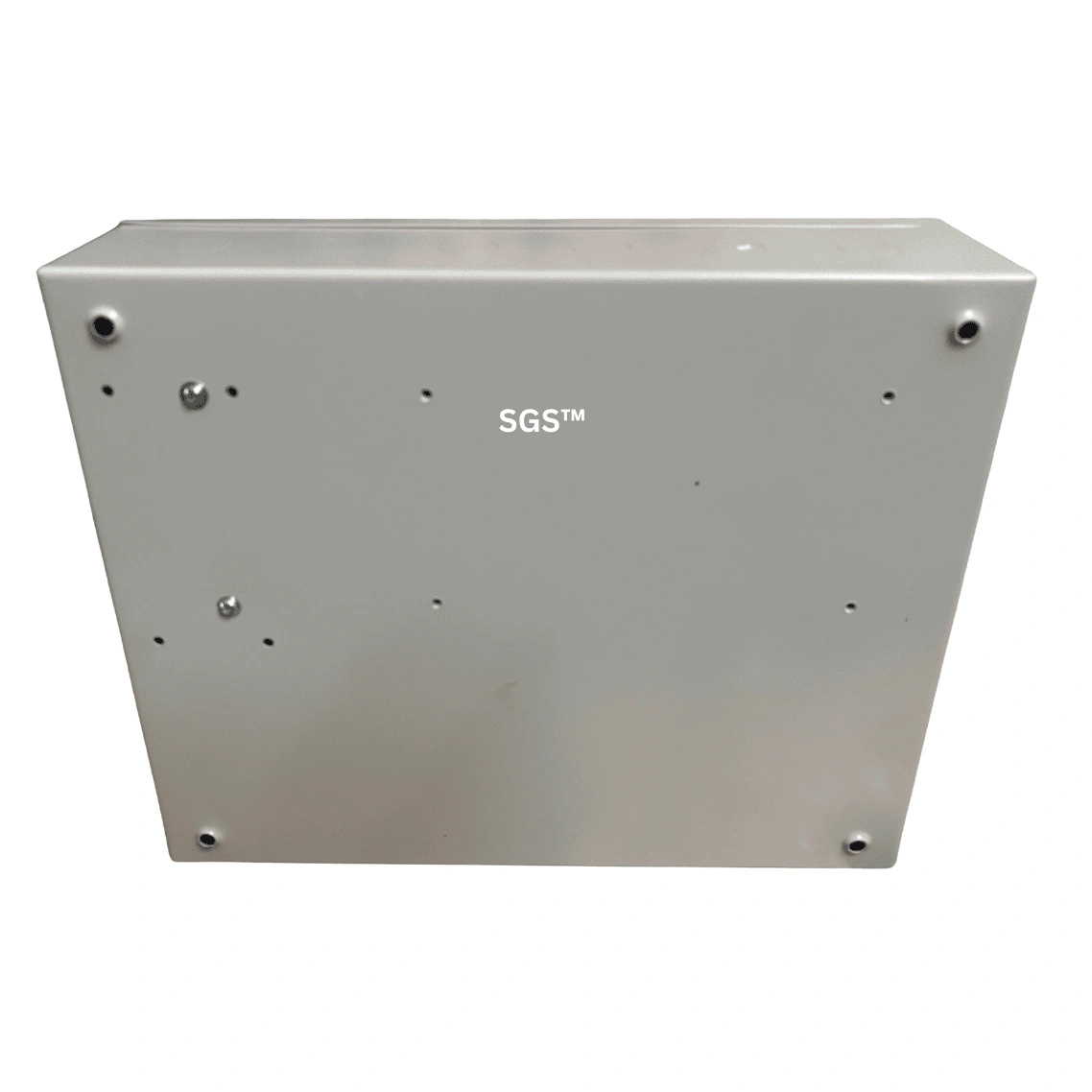

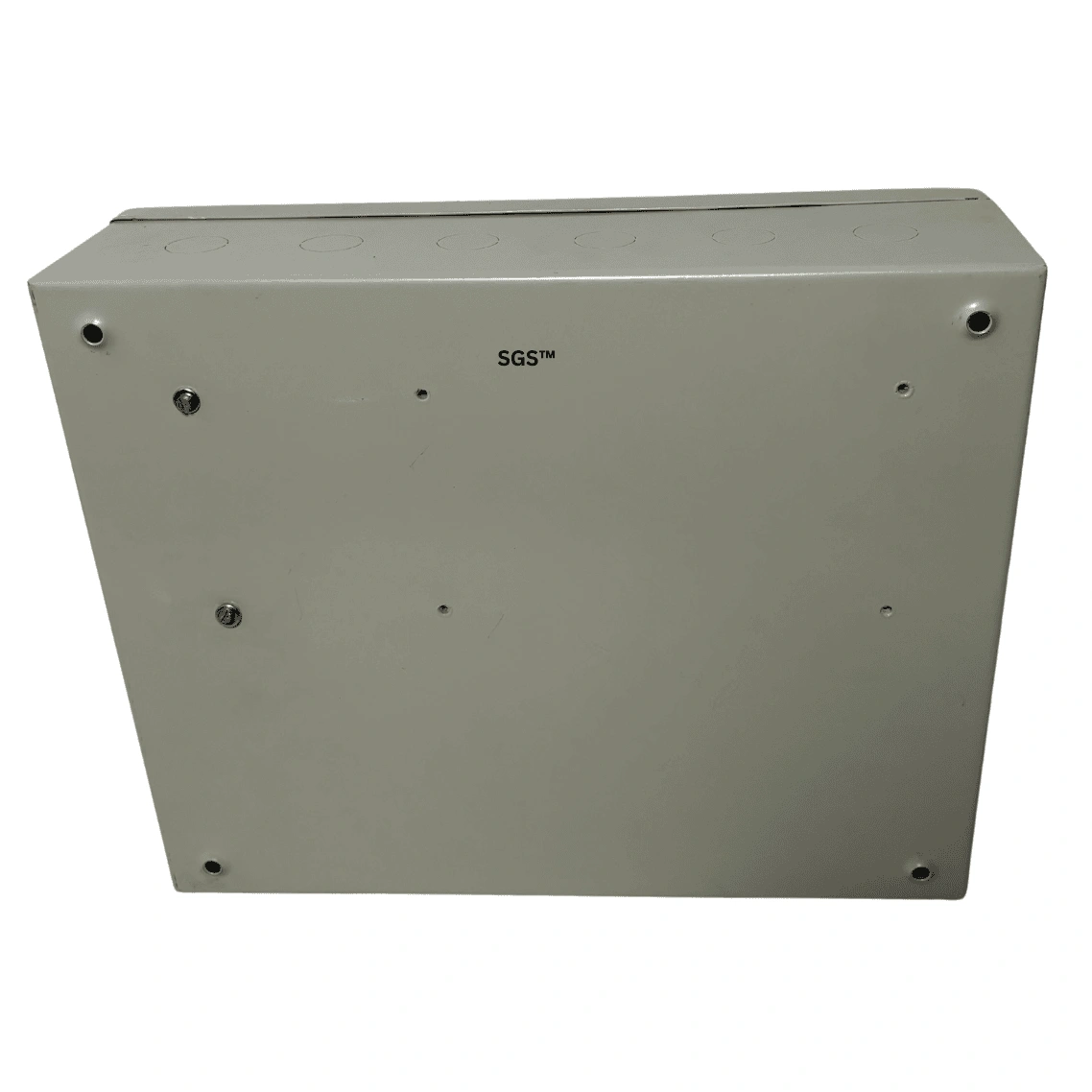

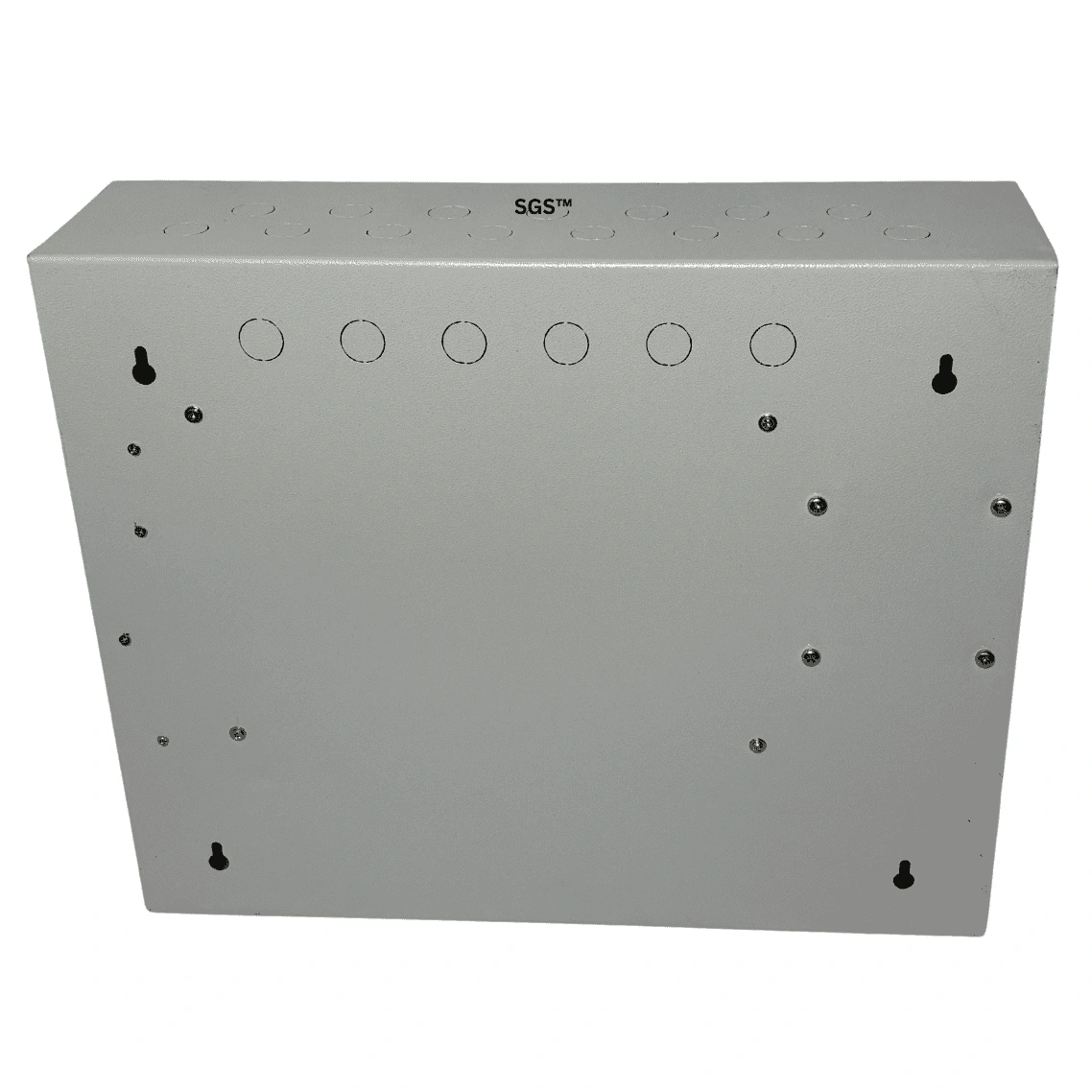

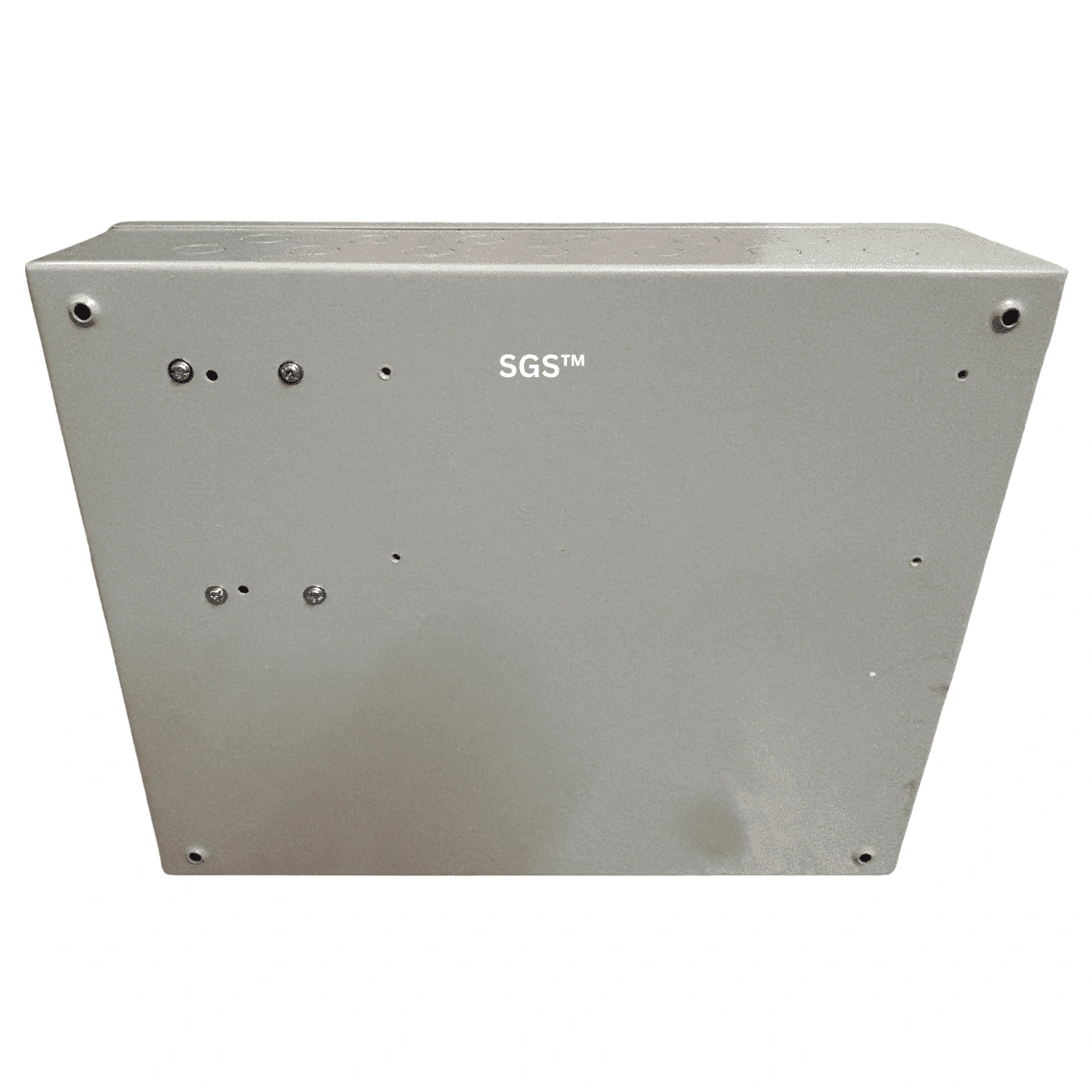

Built with a rugged mild steel (MS) enclosure, the system ensures durability, stability, and long-term operational reliability in demanding environments.
Supports scalable monitoring from 2 to 16 zones.
Triggers solenoid valve shut-off and hooter alarm during gas leaks.
Manages multiple zones from a single control panel.
Can be integrated with fire alarm systems for enhanced safety.
Strong and durable enclosure for harsh environments.
Crimscent Gas Leak Control Panel offers scalable safety control, allowing users to select the required number of zones based on facility size and risk level.
It ensures fast response, centralized monitoring, and reliable gas leak protection across all environments.
Name | Model No. | Operating voltage Range | Operating Temperature | Operating Humidity | Hooter Output | EOL | Weight | Construction | Dimension | Color |

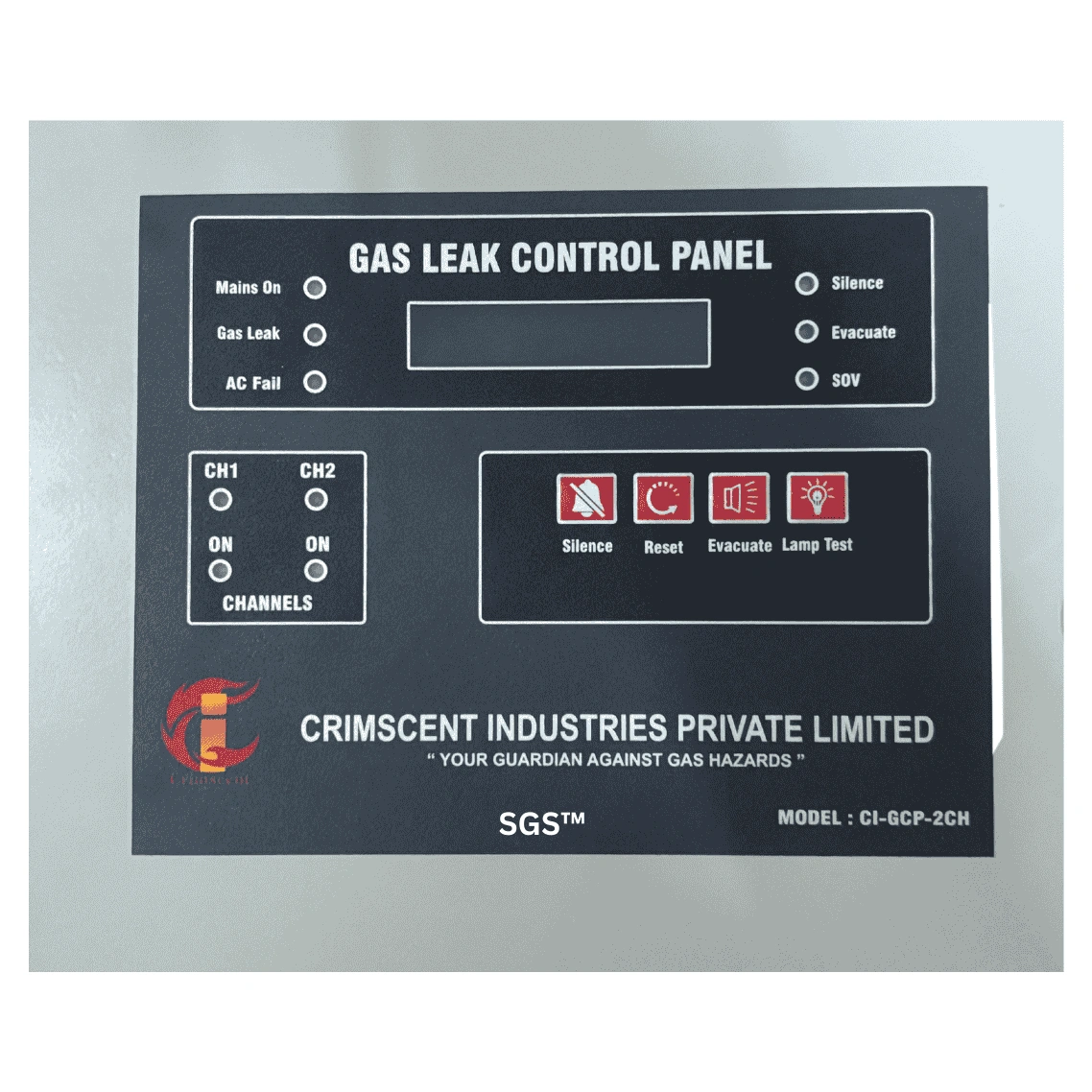

2 Zone | CI- CP-2Z | A 220v 50Hz ± 10%,DC24v1.5amp | -0 | 95% (non-condensing) | 1 A 24vDC | 4k7ohm,1 per zone |
| 1.8mm CRCA sheet duly power coated | H 245mm | Caramel White |

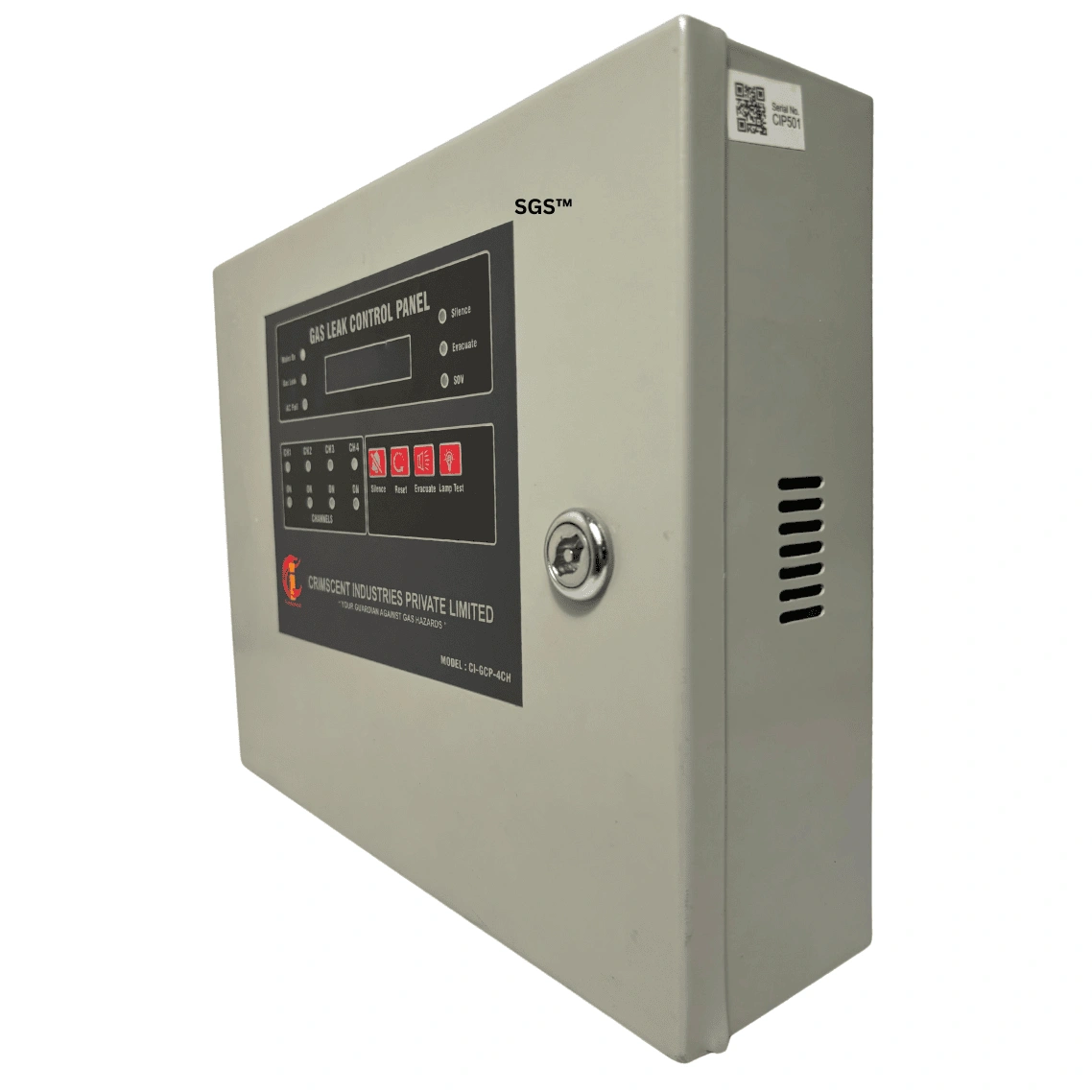

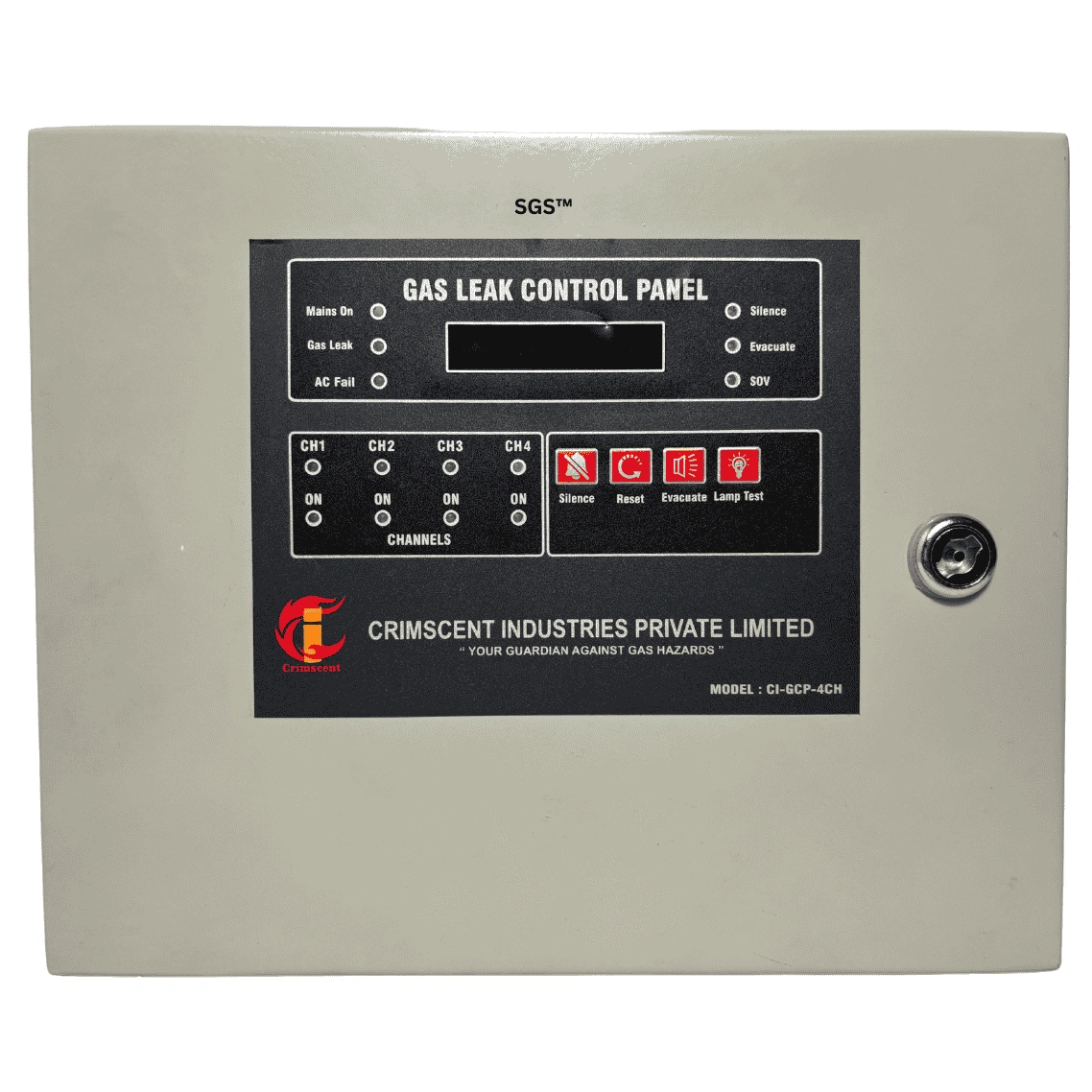

4 Zone | CI- CP-4Z | A 220v 50Hz ± 10%,DC24v1.5amp | -0 | 95% (non-condensing) | 1 A 24vDC | 4k7ohm,1 per zone |
| 1.8mm CRCA sheet duly power coated | H 245mm | Caramel White |
8 Zone | CI- CP-8Z | AC 220v 50Hz ± 10%, DC 24V/ 2.5 Amp | -0 | 95% (non-condensing) | 2 A 24v DC | 4k7 ohm, 1 per zone |
| 1.8 mm CRCA sheet duly power coated | H 272mm * W 346mm * D 96mm | Caramel White |

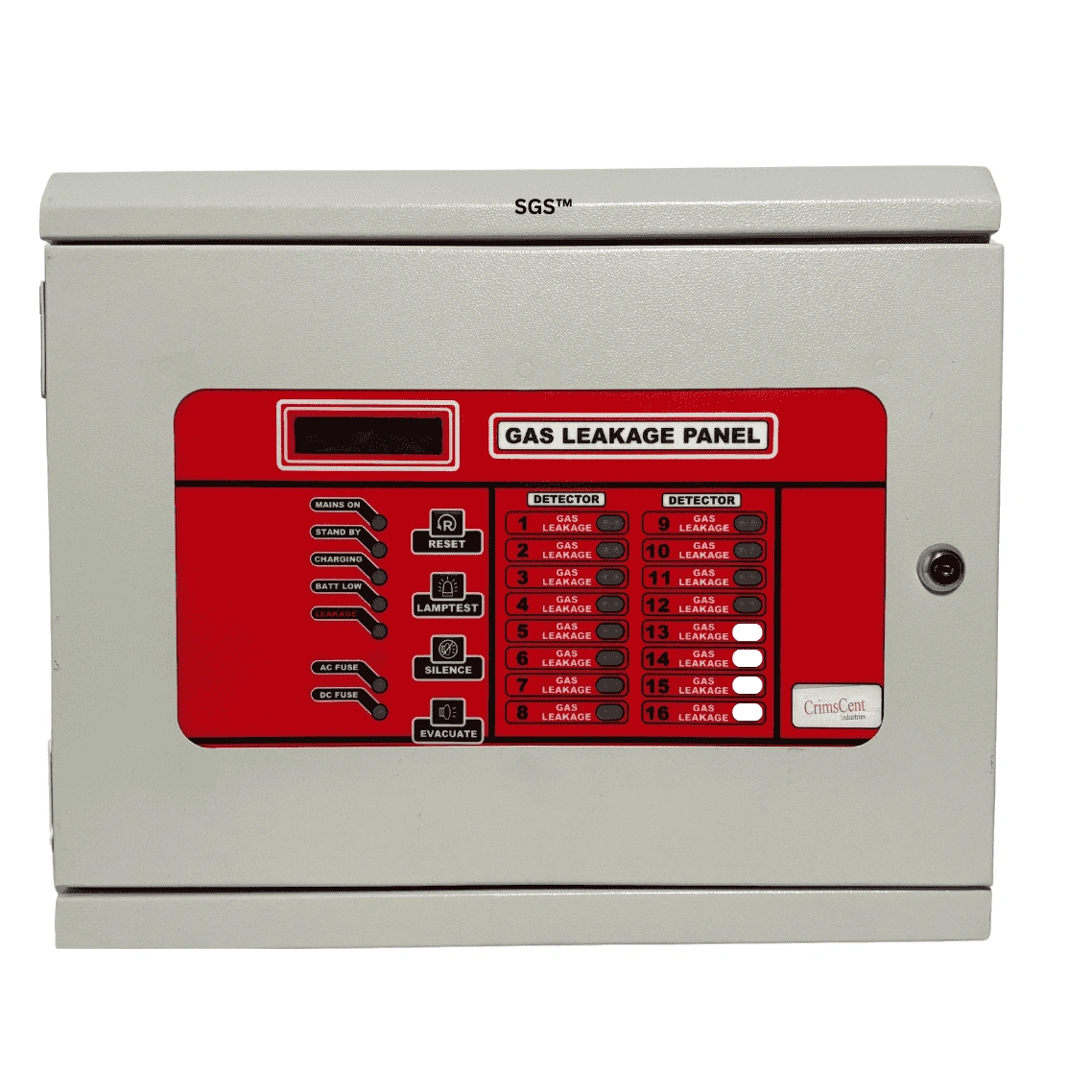

12 Zone | CI- CP-12Z | AC 220v 50Hz ± 10%, DC 24V/ 5 Amp | -0 | 95% (non-condensing) | 4 A 24v DC | 4k7 ohm, 1 per zone |
| 1.8 mm CRCA sheet duly power coated | H 345mm * W 420mm * D 122mm | Red |

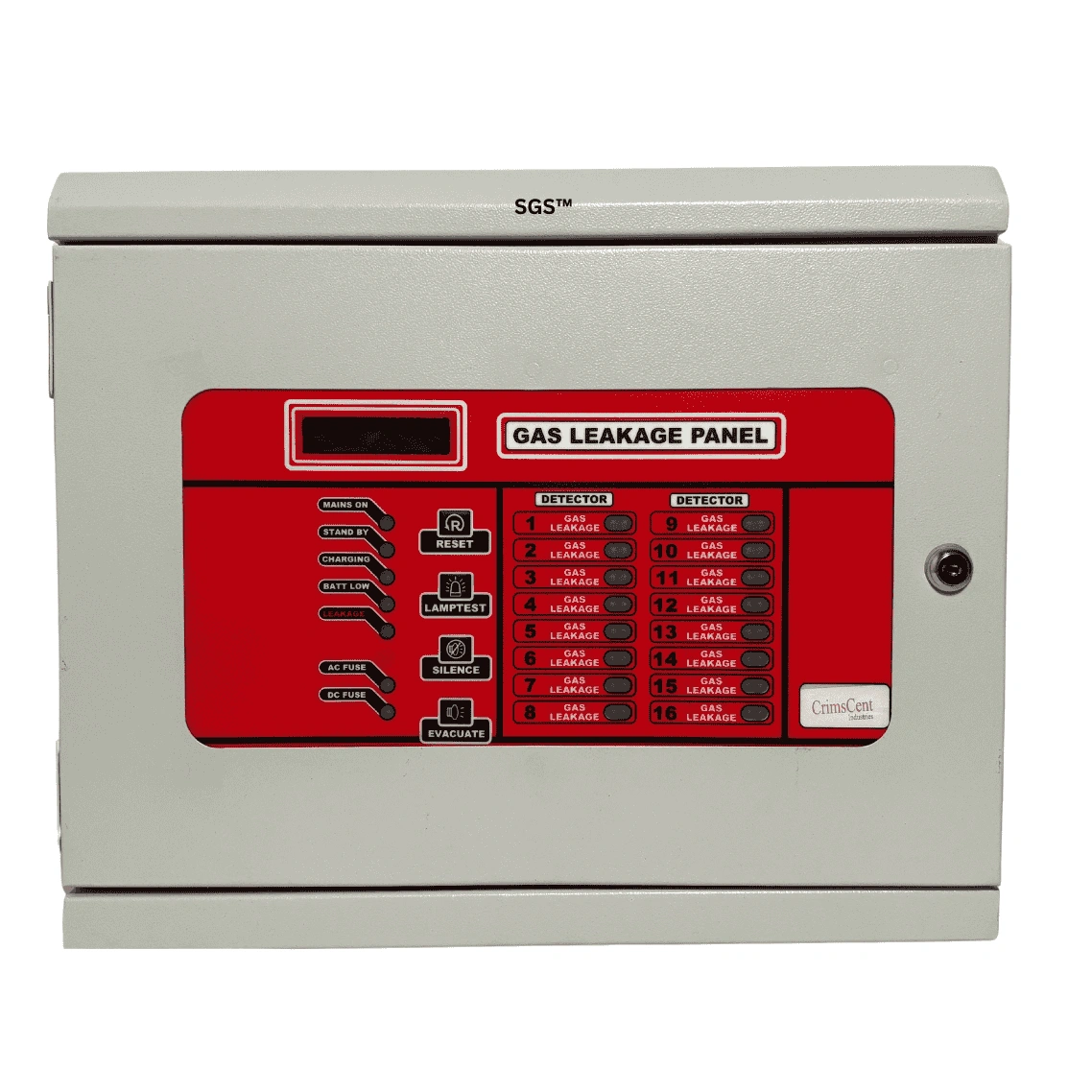

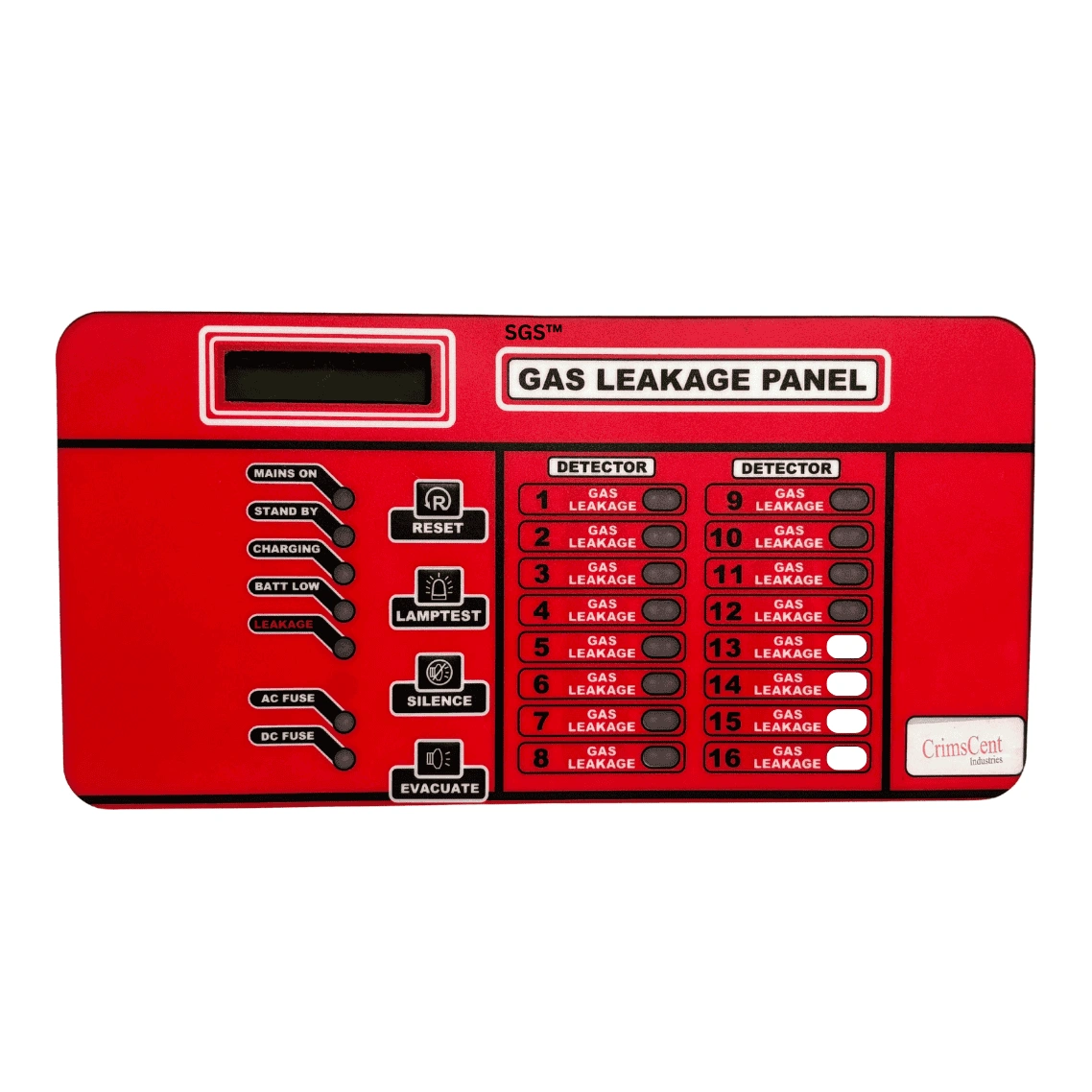

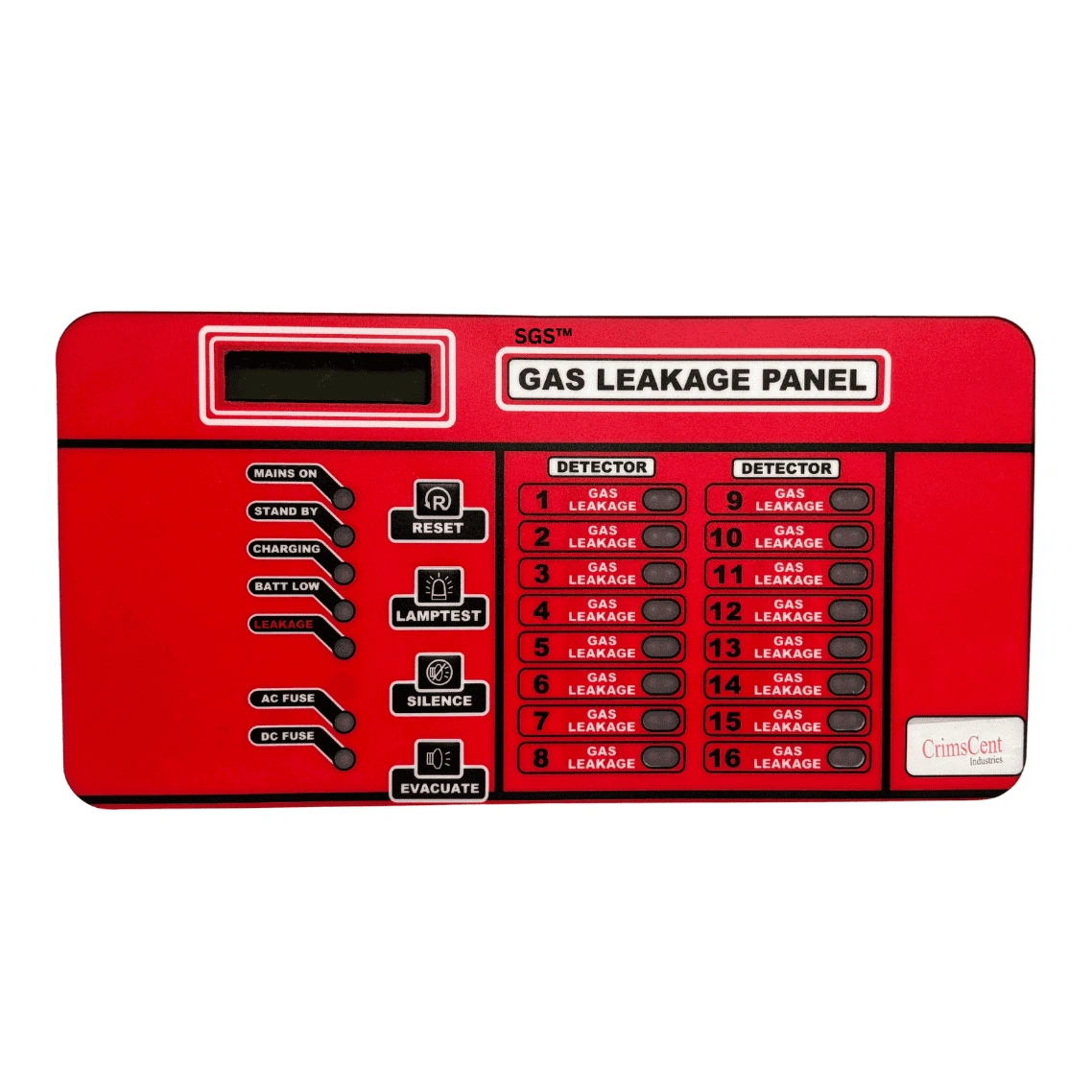

16 Zone | CI- CP-16Z | AC 220v 50Hz ± 10%, DC 24V/ 5 Amp | -0 | 95% (non-condensing) | 4 A 24v DC | 4k7 ohm, 1 per zone |
| 1.8 mm CRCA sheet duly power coated | H 345mm * W 420mm * D 122mm | Red |
