Gas-operated Infra-Red Radiant Burners are engineered to provide efficient and uniform radiant heat for a wide range of industrial and commercial applications. Their adaptability and high-performance design make them an essential tool for industries requiring precise and consistent heating solutions.
Gas-Operated Infra-Red Radiant Burners are the ultimate solution for industries that demand precision, efficiency, and reliability in their heating processes. Upgrade your operations with this versatile and cost-effective heating technology.
S NO. | MODEL NO. / NAME | Approx Weight | OVER ALL SIZE | INNER SIZE (BURNING AREA) | OPTIMUM WORKING PRESSURE | CONSUMPTION PER HOUR | RATED HEATED OUTPUT | |||||||||||
LENGTH | WIDTH | HEIGHT | LENGTH | WIDTH | ||||||||||||||
kgs | mm | ins | mm | ins | mm | ins | mm | ins | mm | ins | kg/cm2 | psig | kgs | lbs | kcal/hr | btu/hr | ||
1. | Vapa Lebanon (VC-9) S.S SHEET | 2.080 | 233.68 | 9.2 | 177.8 | 7 | 88.9 | 3.5 | 215.9 | 8.5 | 152.4 | 6 | 0.035-1 | 0.5-15 | 0.28-0.84 | 0.60-1.80 | 2,480-7,440 | 12,400-37,200 |
2. | Vapa Type Indian M.S SHEET | 1.840 | 228.6 | 9 | 177.8 | 7 | 88.9 | 3.5 | 190.5 | 7.5 | 139.7 | 5.5 | 0.035-1 | 0.5-15 | 0.28-0.84 | 0.60-1.80 | 2,480-7,440 | 12,400-37,200 |
3. | RECTANGLE S.S BODY | 0.740 | 228.6 | 9 | 177.8 | 7 | 76.2 | 3 | 177.8 | 7 | 127 | 5 | 0.035-1 | 0.5-15 | 0.25-0.75 | 0.50-1.50 | 2,200-6,700 | 11,000-33,000 |
4. | UGB C.I | 4.340 | 228.6 | 9 | 177.8 | 7 | 63.5 | 2.5 | 177.8 | 7 | 139.7 | 5.5 | 0.035-1 | 0.5-15 | 0.28-0.84 | 0.60-1.80 | 2,480-7,440 | 12,400-37,200 |
5. | IB 60 C.I | 7.960 | 482.6 | 19 | 127 | 5 | 76.2 | 3 | 444.5 | 17.5 | 88.9 | 3.5 | 0.035 | 0.5 | 0.38 | 0.85 | 4,280 | 17,000 |
6. | IB 40 C.I | 4.740 | 304.8 | 12 | 114.3 | 4.5 | 63.5 | 2.5 | 254 | 10 | 76.2 | 3 | 0.035 | 0.5 | 0.26 | 0.58 | 2,930 | 11,700 |
7. | IB 40 SHEET | 0.900 | 241.3 | 9.5 | 127 | 5 | 76.2 | 3 | 203.2 | 8 | 88.9 | 3.5 | 0.035 | 0.5 | 0.15 | 0.33 | 1,700 | 6,800 |

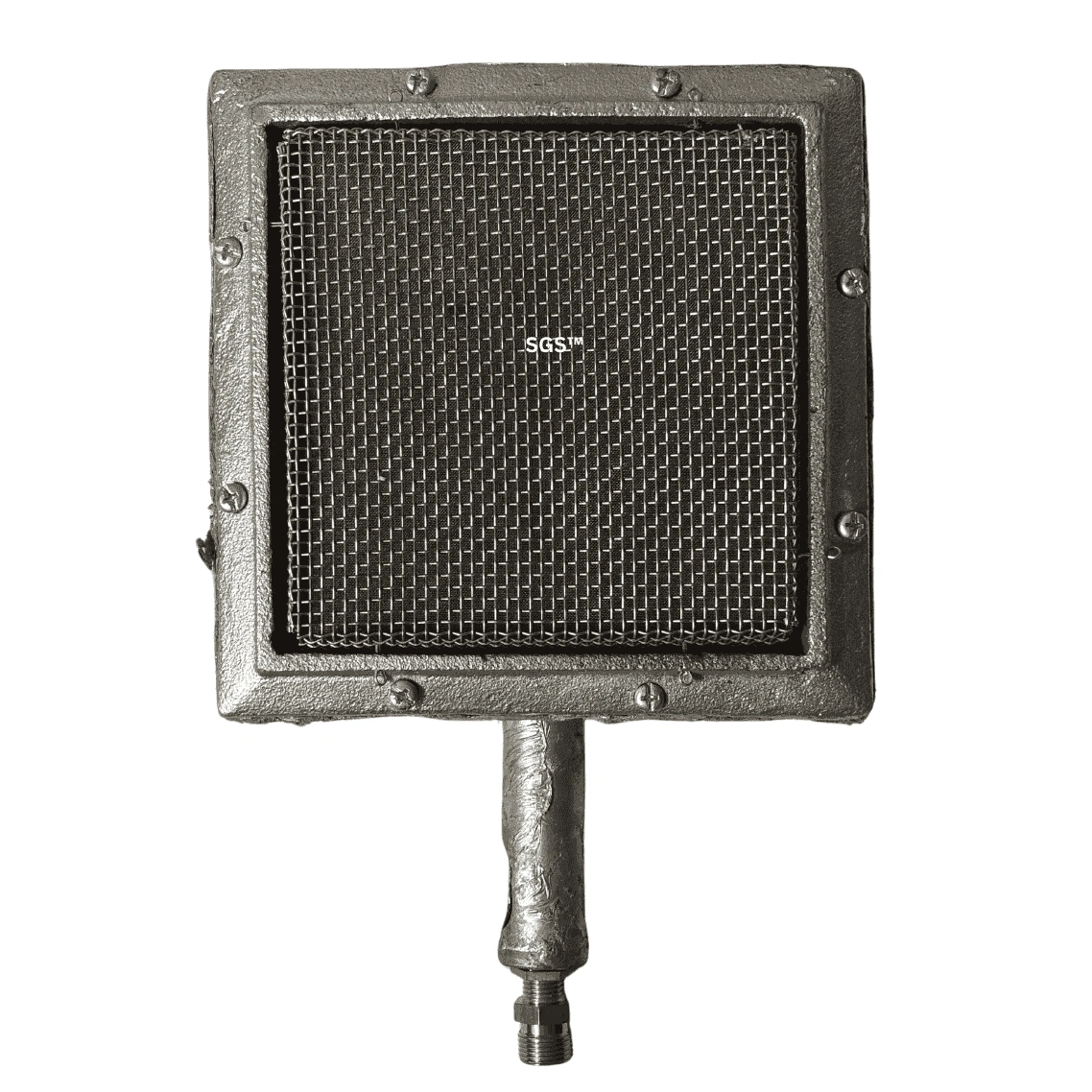

8. | SQUARE M.S SHEET+C.I | 2.060 | 190.5 | 7.5 | 190.5 | 7.5 | 50.8 | 2 | 152.4 | 6 | 152.4 | 6 | 0.035 | 0.5 | 0.12 | 0.31 | 1,370 | 5,400 |
9. | JUMBO (H.P) M.S SHEET | 6.700 | 457.2 | 18 | 241.3 | 9.5 | 88.9 | 3.5 | 431.8 | 17 | 203.2 | 8 | 0.035-1 | 0.5-15 | 0.73-2.20 | 1.56-4.68 | 6,450-19,400 | 32,300-96,700 |
