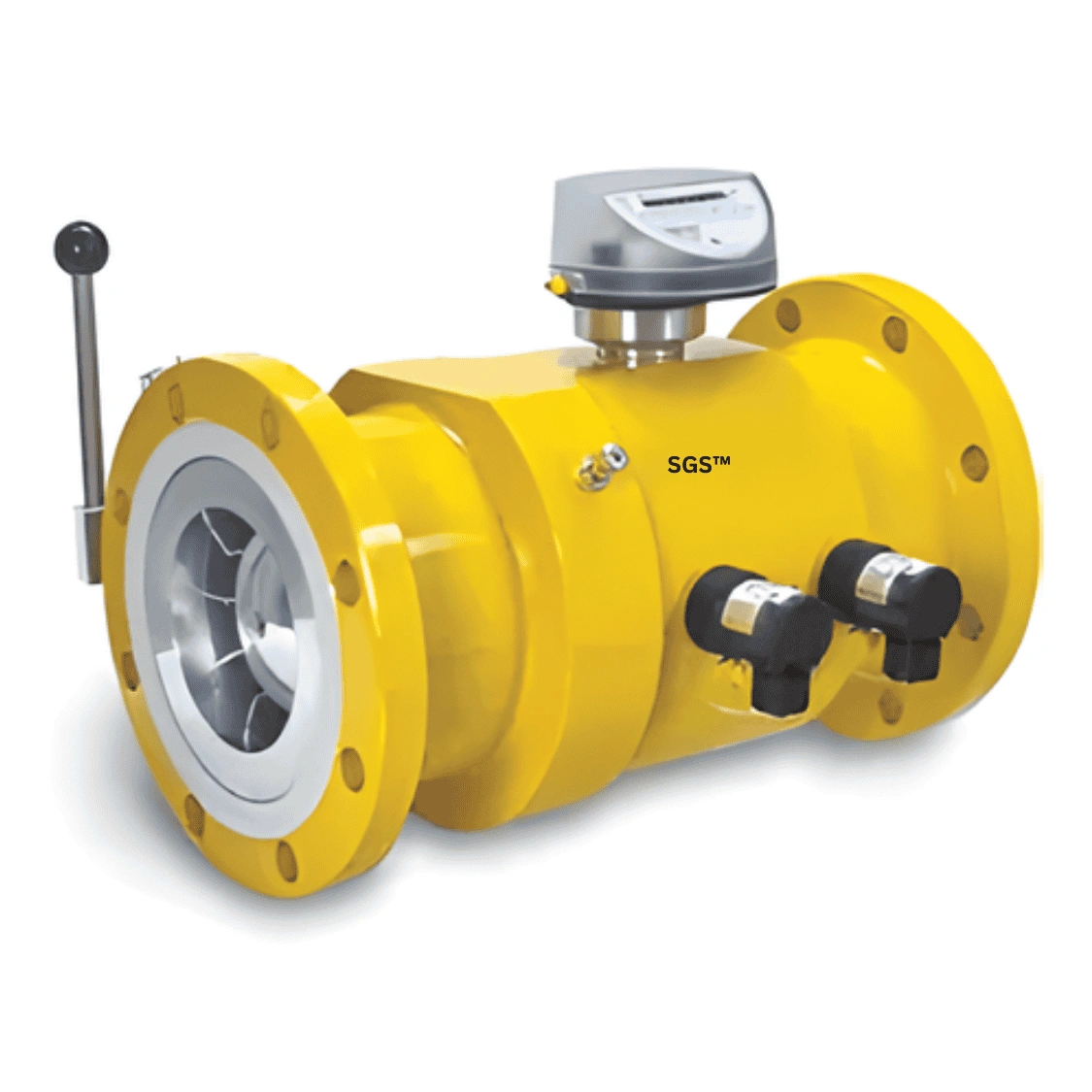

TRZ2 Turbine Gas Meter – High-Accuracy Industrial Gas Measurement Solution

The TRZ2 Turbine Gas Meter is a highly reliable and precision-engineered gas meter designed for accurate measurement of gas consumption in gas distribution networks, industrial plants, commercial facilities, and large-scale energy systems. Built for durability and long-term reliability, this turbine gas meter delivers exceptional measurement accuracy, high repeatability, and stable performance, even under demanding operating conditions.

Developed for a wide range of gas applications, the TRZ2 Gas Meter offers one of the lowest measurement uncertainties in its class, making it a trusted choice for industries that depend on precise gas metering.

Key Features of the TRZ2 Turbine Gas Meter

✔ High Accuracy & Repeatability

Engineered for low measurement uncertainty and high repeatability, ensuring precise gas volume measurement in all operating conditions.

✔ Wide Range of Meter Sizes (G65 to G1000)

Available in multiple meter sizes, making it suitable for medium to high gas flow applications.

✔ Large Measuring Range

Supports a measuring range of 5 to 1600 m³/h, ideal for industrial and commercial gas systems.

✔ Multiple Diameter Options

Offered in DN 50 to DN 150 (2” to 6”) nominal diameters for flexible installation across various systems.

✔ High Operating Pressure Capability

Designed to operate efficiently at pressures from 0 to 100 barg, making it suitable for high-pressure industrial environments.

✔ Flange Rating Options

Compatible with PN 10–100 and ANSI 150–600 flange standards, ensuring easy integration with existing pipelines.

✔ Robust Industrial Construction

Built for long service life, delivering exceptional performance in gas distribution networks, chemical plants, industrial furnaces, refineries, and power generation facilities.

Applications

The TRZ2 Turbine Gas Meter is ideal for:

Industrial gas distribution systems

Commercial gas consumption measurement

Petrochemical and chemical industries

Power plants and energy metering applications

High-pressure natural gas pipelines

Industrial furnaces and process heating

Why Choose the TRZ2 Turbine Gas Meter?

With its industry-leading performance, wide operating range, and high accuracy, the TRZ2 stands out as a top-tier gas metering solution for industrial and commercial applications. Whether you are upgrading an existing metering system or installing a new one, the TRZ2 ensures precision, reliability, and long-term operational efficiency.

For pricing, technical assistance, or to order the TRZ2 Turbine Gas Meter, contact us today. Ensure accurate and dependable gas measurement with one of the most robust turbine gas meters available.

TRZ2 - Turbine Gas Meter

• Lowest measurement uncertainty & High repeatability
• Meter sizes G65 to G1.000
• Max. measuring range 5 to 1.600 m /h
• Nominal diameters DN 50 to 150 (2” to 6”)
• Operating pressure from 0 to 100 barg
• Flange rating in PN 10-100 and ANSI 150-600
