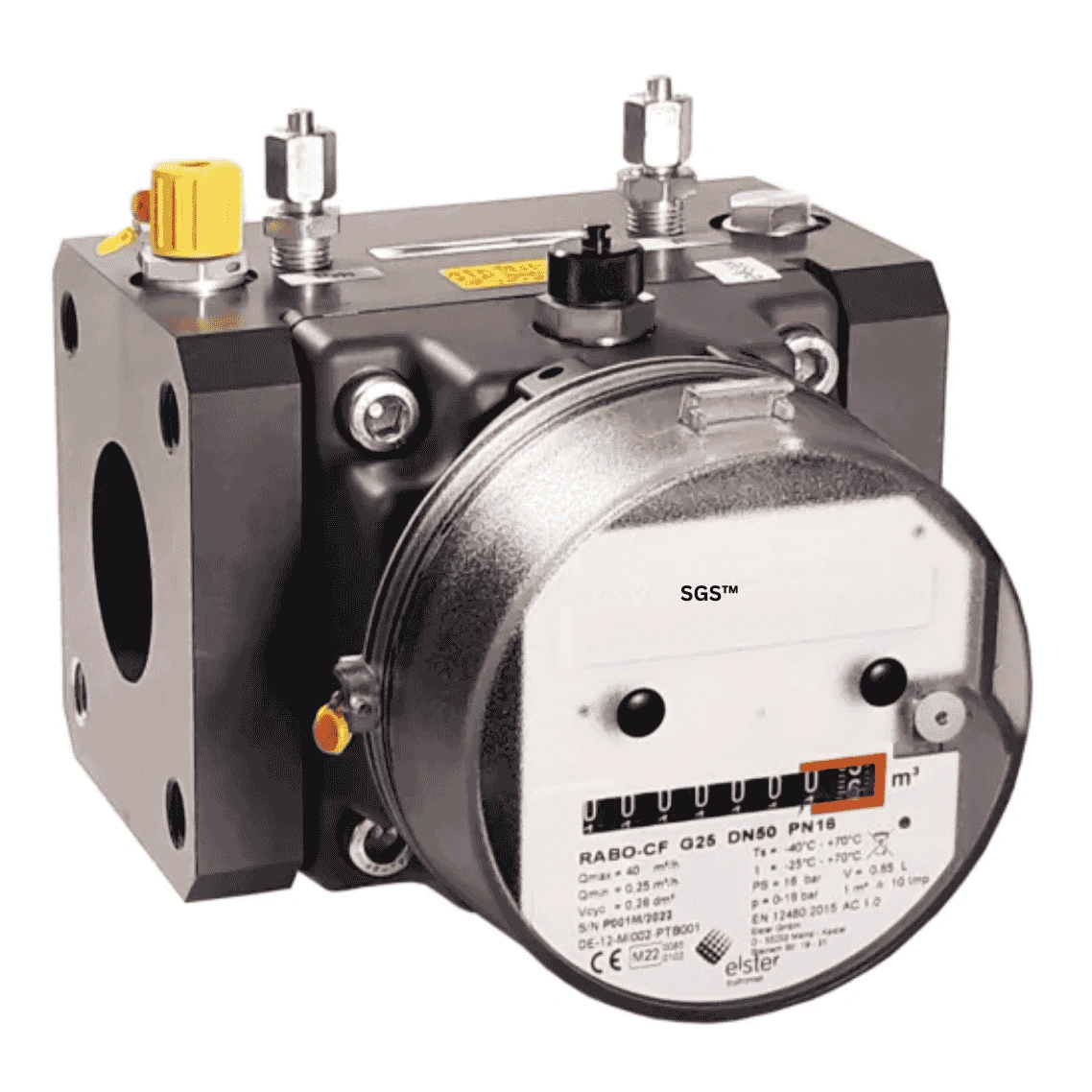

HONEYWELL G10 to G40 RABO RPD Compact Gas Meter – High-Performance Rotary Gas Meters for Accurate Gas Measurement

The Honeywell G10 to G40 RABO RPD Compact Gas Meter is a premium solution for precise gas measurement in industrial and commercial applications. Known for its compact dimensions and advanced functionality, this rotary gas meter ensures superior accuracy, even in low or irregular gas flow conditions. Combining the trusted features of Elster-Instromet rotary gas meters with innovative technology, the RABO RPD series offers reliable, future-oriented performance.

Features & Benefits

• Versatile Meter Sizes: Available in sizes G10 to G40, catering to diverse applications and flow requirements.
• Wide Flow Range: Supports flow rates from 0.25 to 65 m³/h for operational flexibility.
• Nominal Sizes: DN 25 to DN 50 for seamless integration into various gas systems.
• High Pressure Ratings: Built to withstand PN 10/16 and Class 150 pressures, compliant with ASME B 16.5 standards.
• Temperature Resilience: Operates effectively in temperatures from -25°C to +70°C, suitable for diverse environments.
• Exceptional Measuring Range: Delivers measuring ranges up to 1:200, ensuring precise gas flow monitoring.
• Durable Aluminum Housing: Available in flange or threaded versions for robust performance and compatibility.
• Compact Design: Ideal for space-saving installations without compromising functionality.
• Maintenance-Free Option: Offers a hassle-free maintenance alternative for long-term reliability.
• Flexible Installation: Rotatable index for horizontal or vertical mounting options.
• Advanced Index Solutions: Includes optional Absolute ENCODER S1D for enhanced data collection and analysis.
• Regulatory Approvals: Fully certified per MID, PED, and ATEX Directives for safety, accuracy, and performance.

Operating Principle

The Honeywell G10 to G40 RABO RPD Gas Meter operates on the positive displacement principle, using synchronized figure-8-shaped impellers to measure gas volume accurately. The volumetric measurement is unaffected by installation conditions, making it suitable for compact systems without inlet sections. The device records gas volume under operating conditions and supports custody transfer applications. For advanced monitoring, electronic volume conversion devices can be integrated.

Applications

• Industrial and commercial gas flow measurement
• Custody transfer operations
• Compact gas metering systems

Upgrade to the Honeywell G10 to G40 RABO RPD Compact Gas Meter for unparalleled accuracy, durability, and efficiency. Contact us today to learn more about this advanced gas metering solution and enhance the performance of your gas systems!

• Meter sizes G10 to G40
• Flow rates from 0.25 to 65 m3/h
• Nominal sizes DN 25 to DN 50
• Pressure ratings PN 10/16 and Class 150 in accordance with ASME B 16.5
• Temperature range -25°C to +70°C
• Measuring ranges up to 1:200
• Aluminum housing as Flange or Thread version
• Compact dimensions
• Maintenance free option
• Index can be rotated for horizontal and vertical installation
• Optional index solutions (e.g. Absolute ENCODER S1D)
• Approvals pursuant to MID/PED/ATEX Directives
