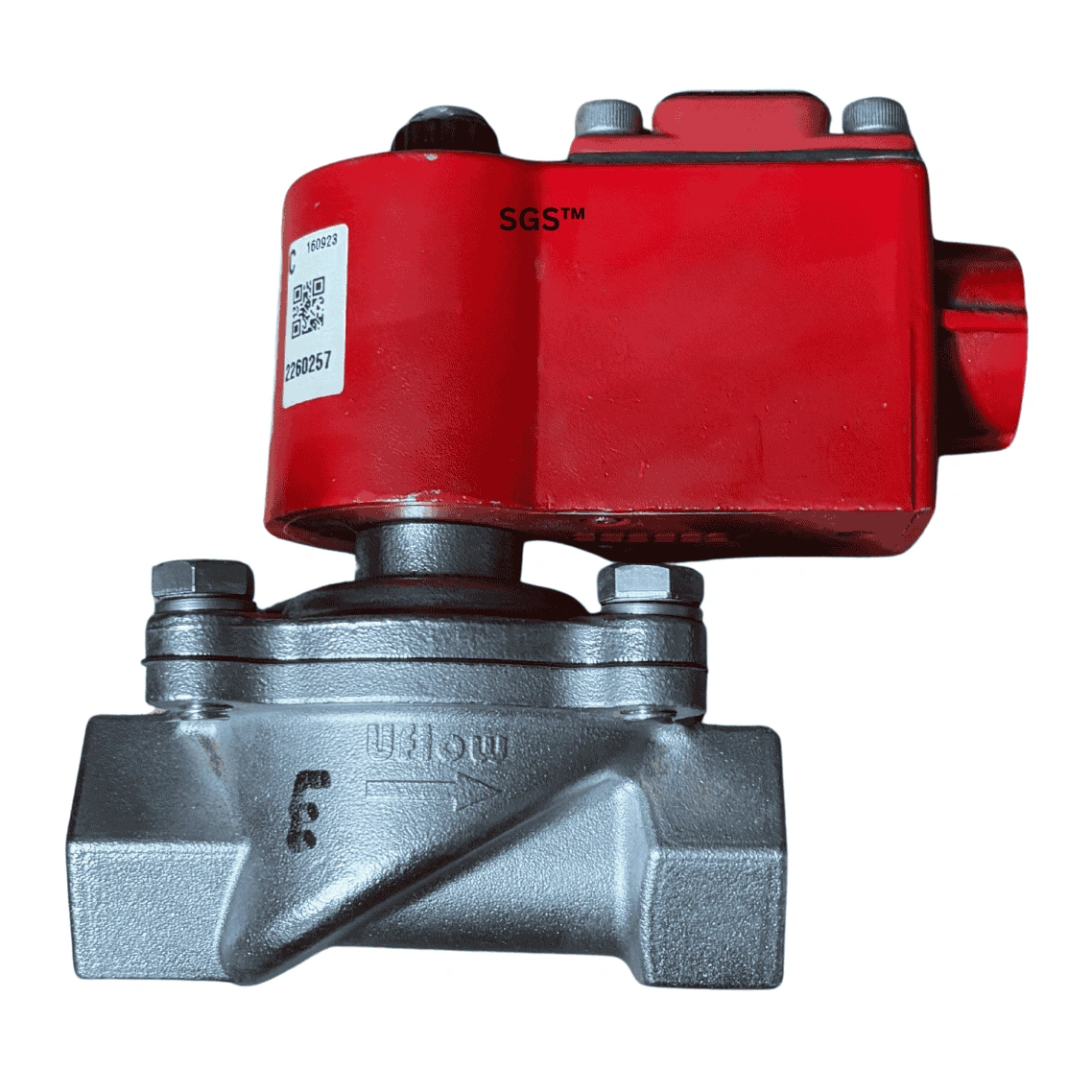

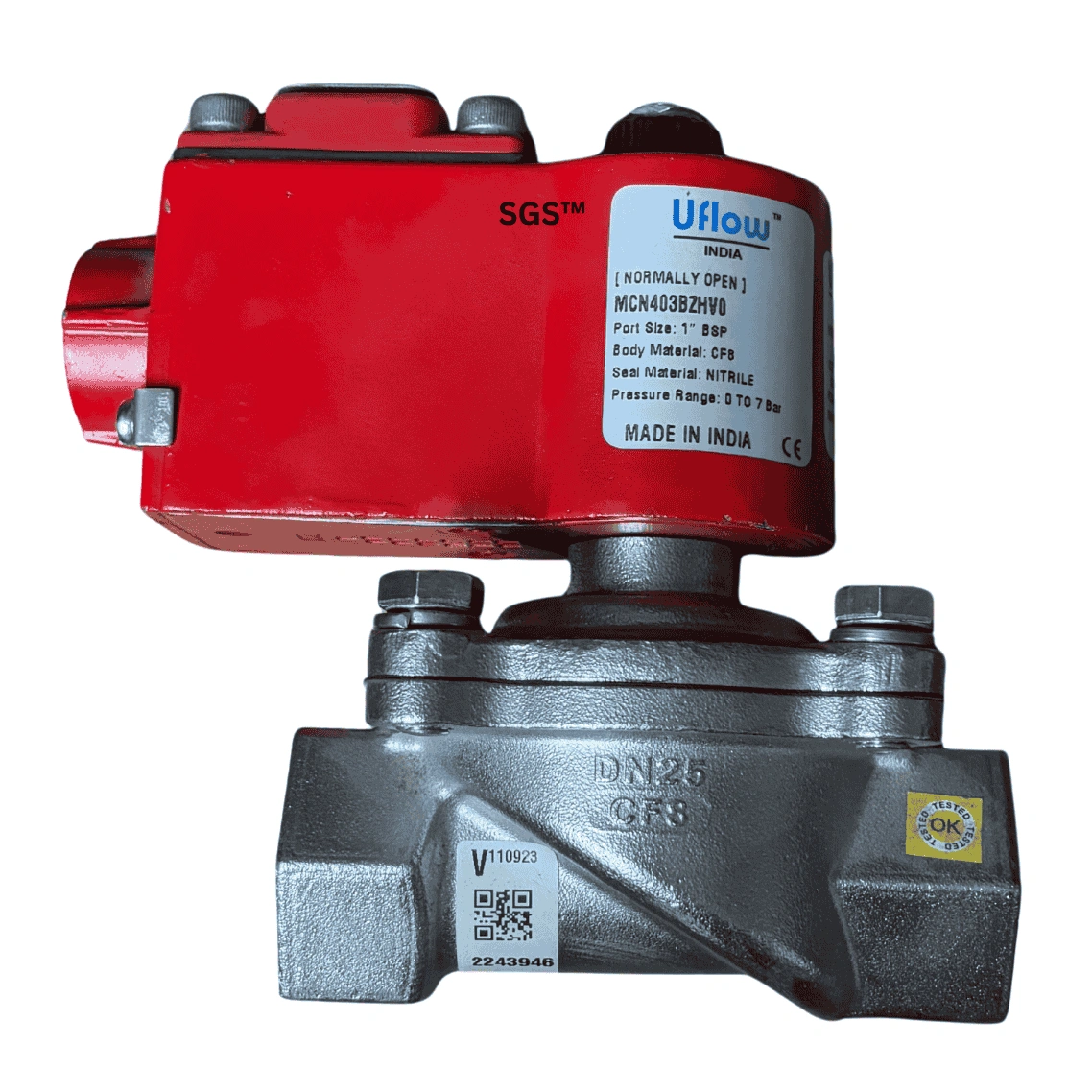

Uflow Solenoid Valve 1" BSP (Normally Open) MCN Series | 0 to 7bar – A High-Performance Valve for Versatile Applications

The Uflow Solenoid Valve 1" BSP (Normally Open) MCN Series is designed to deliver exceptional performance and reliability across a wide range of industrial applications. Built with premium materials and innovative features, this solenoid valve ensures optimal operation in diverse environments and conditions.

Key Features

Premium Construction:

• Internal parts made from superior corrosion-resistant steel, suitable for food industries, pharmaceuticals, chemical processing, and highly corrosive environments.

Versatile Media Handling:

• Compatible with air, water, chemicals, gas, oil, steam, and LPG, making it highly adaptable to various industrial applications.

Optional Advanced Features:

• 90% Power Saver Series: Minimize energy consumption without compromising performance.
• Water Hammering Reducer: Prevents water hammer forces, enhancing the valve's durability.
• High Flow Rate Series: Available upon request for low-pressure or gravity-fed applications.

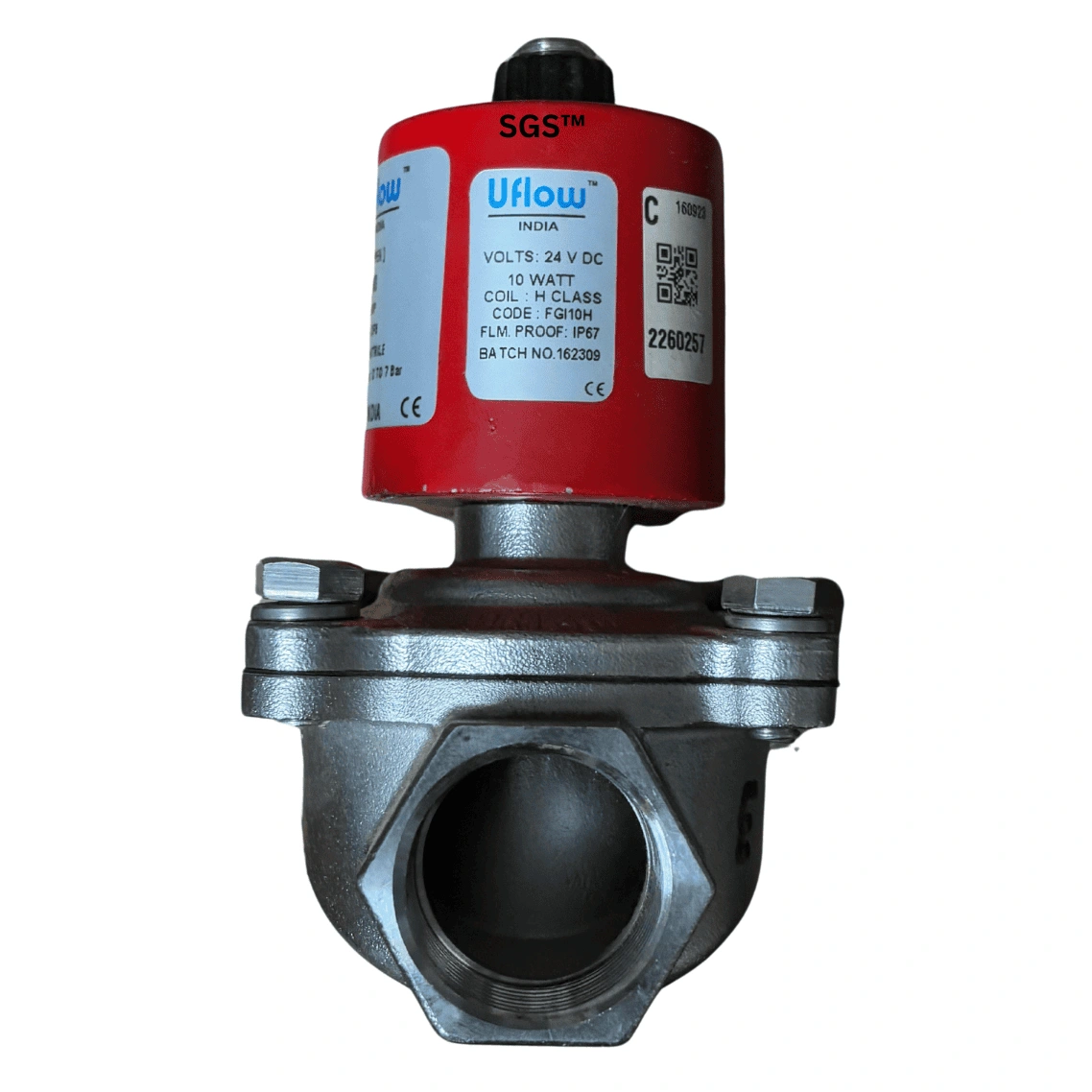

Coil Information:

• High Reliability: Unaffected by voltage surges, ensuring consistent performance.
• Flexible Installation: Coil lockable in 4x90° positions or freely adjustable.
• Coil Housing Options:
  • Epoxy square coil
  • Metallic round enclosure
  • IP-67 Flameproof enclosure
  • IP-68 Weatherproof enclosure

Installation and Usage Notes

• Recommended Setup: Use with a filter on the inlet port. Prefer horizontal pipeline installation with the coil upright.
• Caution:
  • Avoid using AC coils on DC valves and vice versa.
  • For DC coils, reduce the maximum operating pressure by 1 Kg/cm².

Applications

• Food Processing
• Pharmaceutical Industry
• Chemical Plants
• Corrosive Environment Systems
• Gas and Oil Systems
• Steam and LPG Handling

Uflow Solenoid Valve 1" BSP  (Normally Open) MCN series | 0 to 7bar
