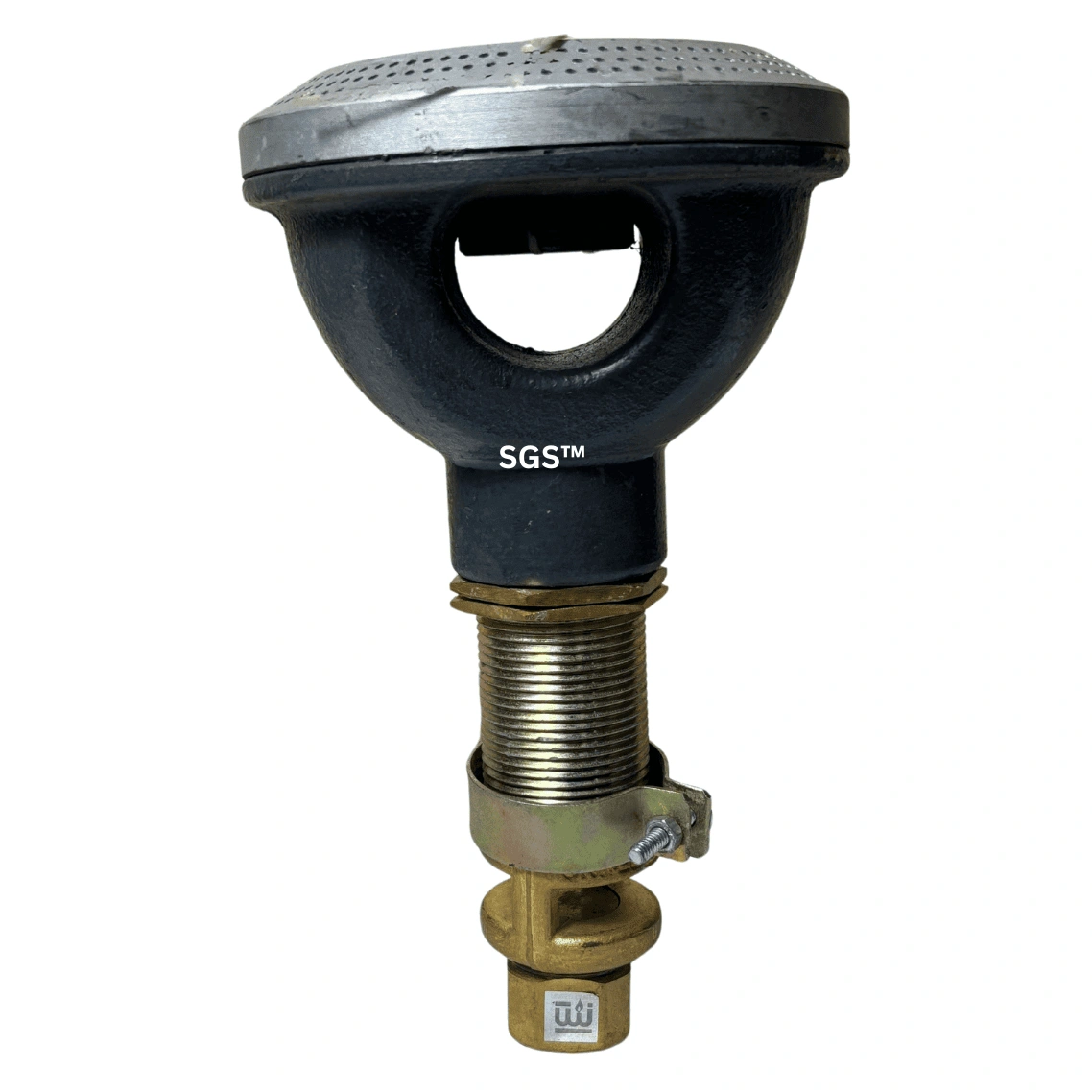

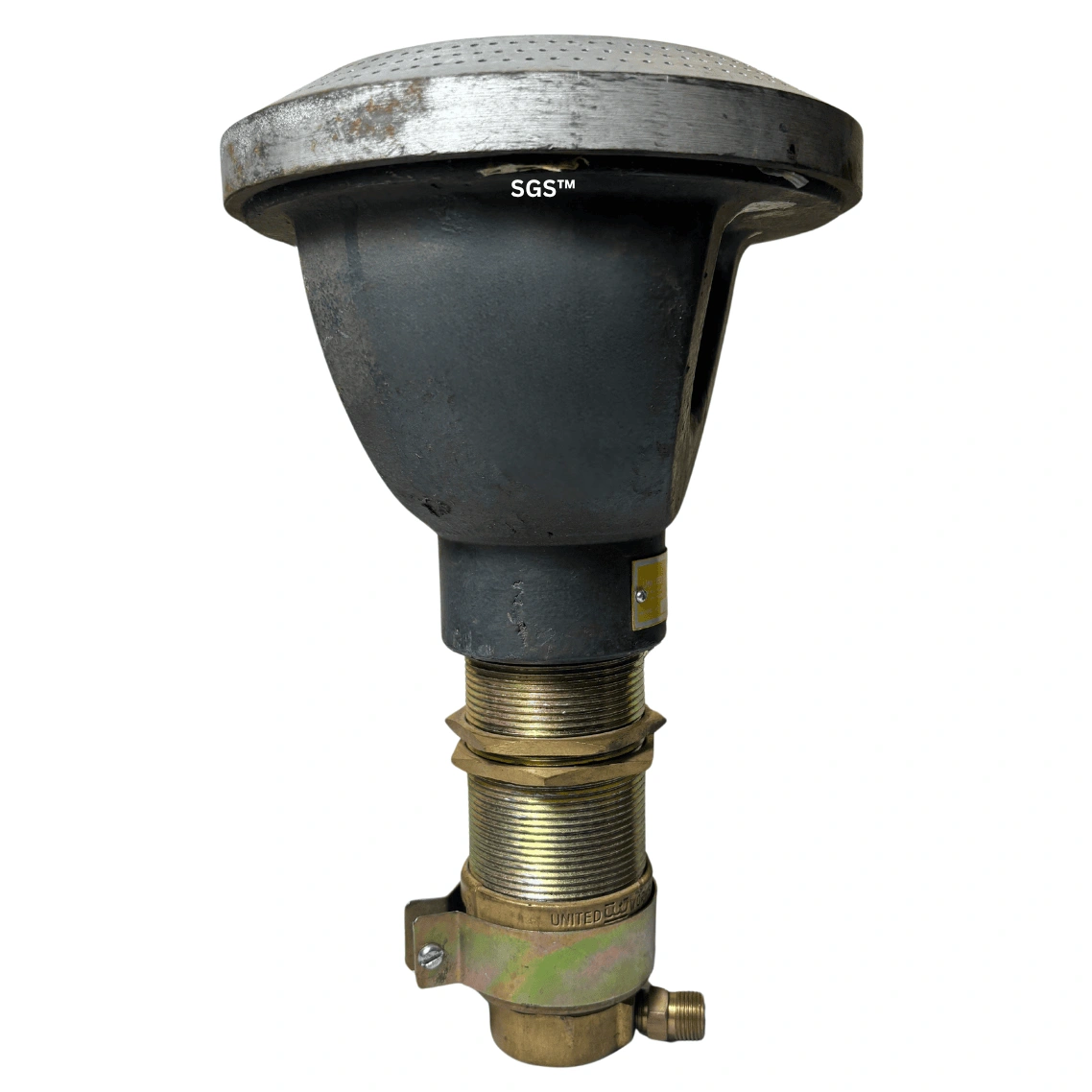

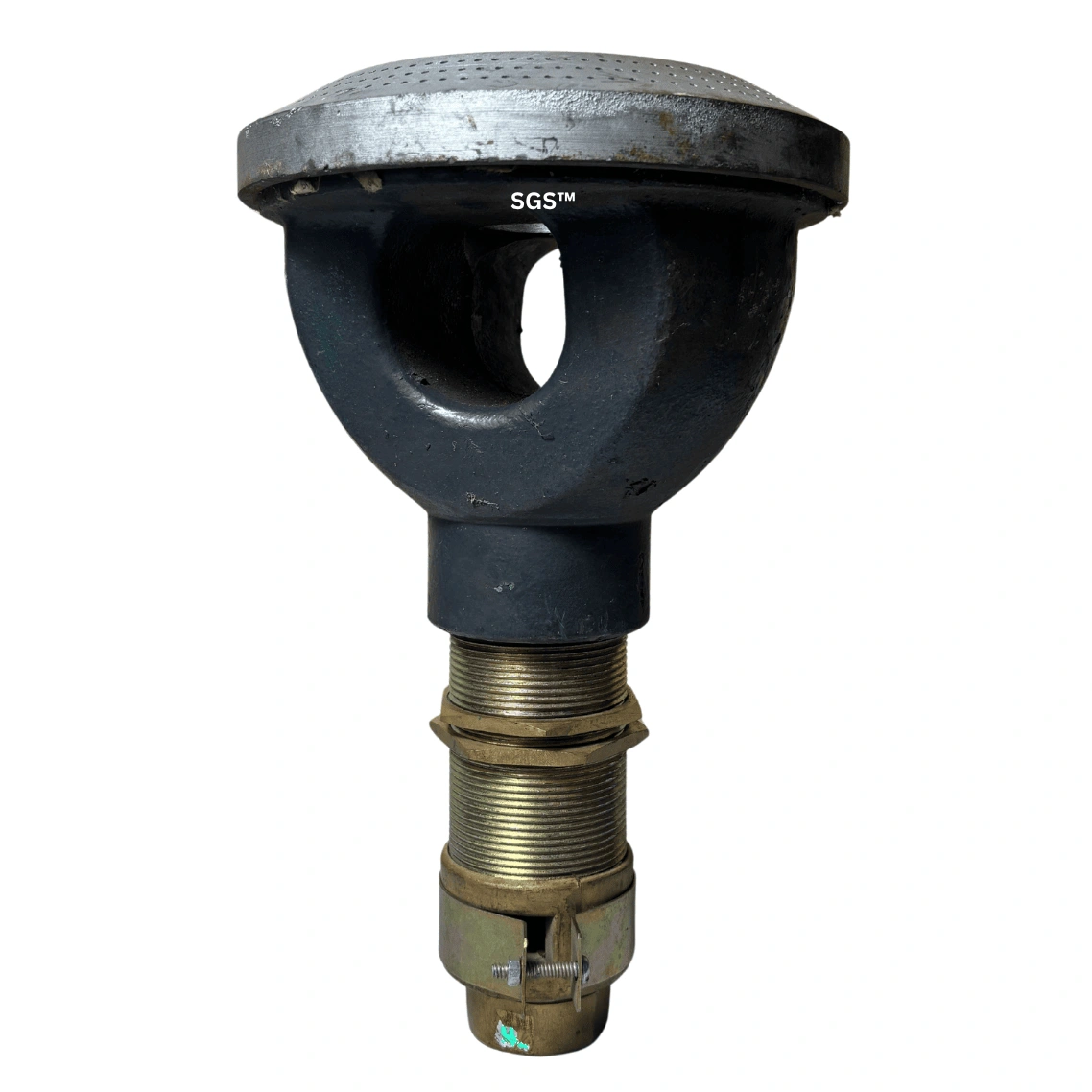

The United G-8 Burner is expertly designed for high-performance heating in industrial and commercial environments. Engineered with adjustable pressure settings and variable heat output, it ensures precise control and exceptional efficiency for a wide range of applications.
Recommended Pressure:
Adjustable Pressure Range:
Variable Heat Output:
Versatile Applications:
MODEL NO. | APPROX. WEIGHT | DIMENSIONS | OPTIMUM WORKING PRESSURE | CONSUMPTION PER HOUR | RATED HEATED OUTPUT | ||||||
LENGTH | HEAD DIAMETER | ||||||||||
kgs | mm | ins | mm | ins | kg/cm2 | psig | kgs | lbs | kcal/hr | btu/hr | |
G-8 | 1.060 | 200 | 8 | 70 | 2.75 | 0.3 | 4.5 | 0.9 | 2.0 | 10,100 | 40,000 |
G-1| G-9|C-22 | 1.48 | 205.7 | 8.1 | 99.06 | 3.9 | 0.3 | 4.5 | 1.2 | 2.7 | 13,975 | 55,000 |
G-2| G-10|C-35 | 2.1 | 230 | 9.05 | 115 | 4.53 | 0.3 | 4.5 | 1.58 | 3.5 | 17,650 | 70,000 |
G-3| G-11|C-65 | 2.8 | 230 | 9.05 | 127 | 5 | 0.3 | 4.5 | 2.24 | 5.0 | 25,200 | 1,00,000 |
G-100 | 6.6 | 320 | 12.6 | 180 | 7.1 | 0.3 | 4.5 | 3.56 | 7.8 | 40,350 | 1,60,000 |
