MODEL NO.

APPROX WEIGHT

DIMENSIONS

OPTIMUM WORKING PRESSURE

GAS CONSUME

RATED HEATED OUTPUT

OAS

LENGTH

HEAD DIAMETER

HEIGTH

kgs

mm

ins

mm

ins

mm

ins

kpa

psig

kg/hr

lbs

kcal/hr

btu/hr

2 RING

2.920

406.4

16

175.2

6.9

73.66

2.9

2.8

0.40

0.38

0.83

3,783.466

15,000

17"x8"

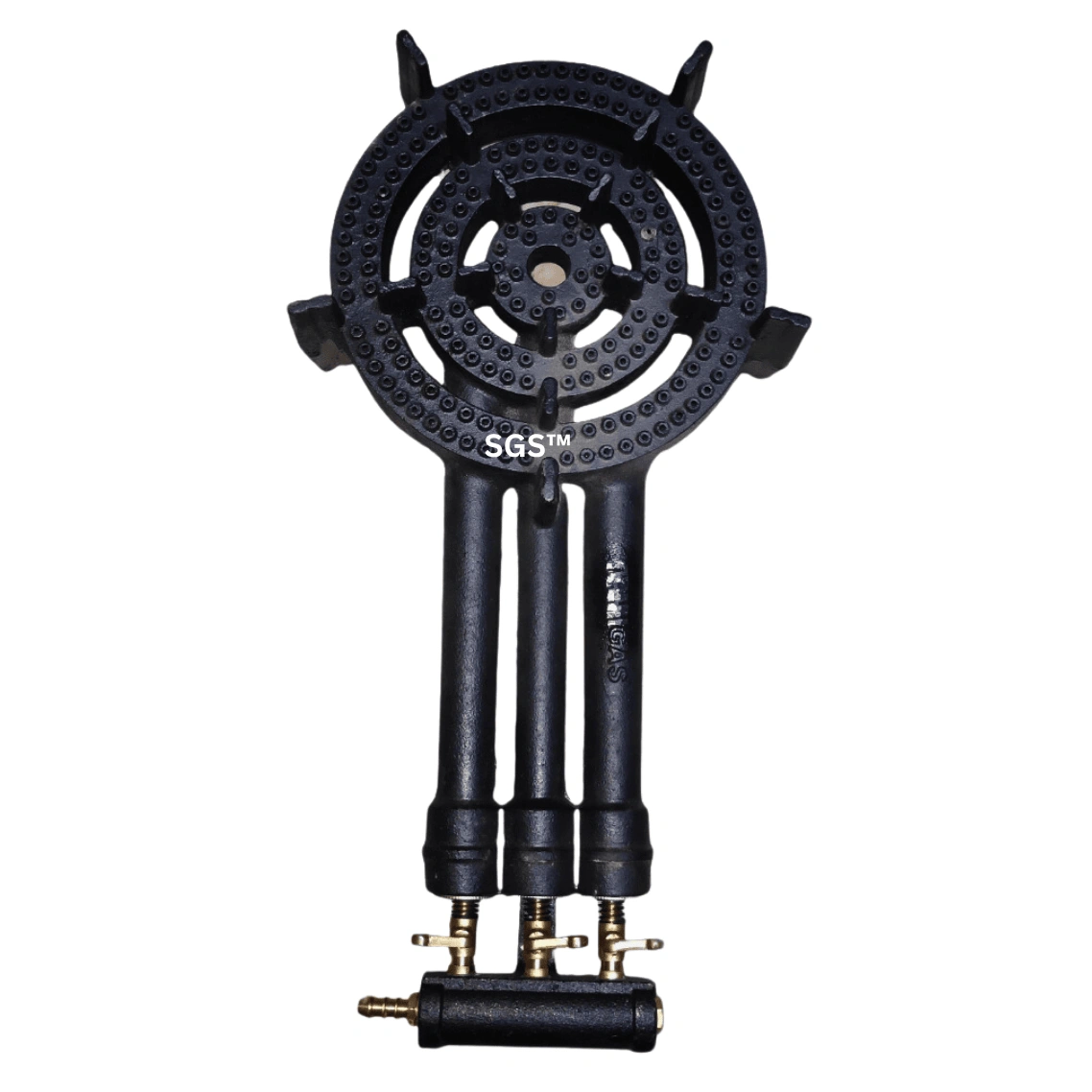

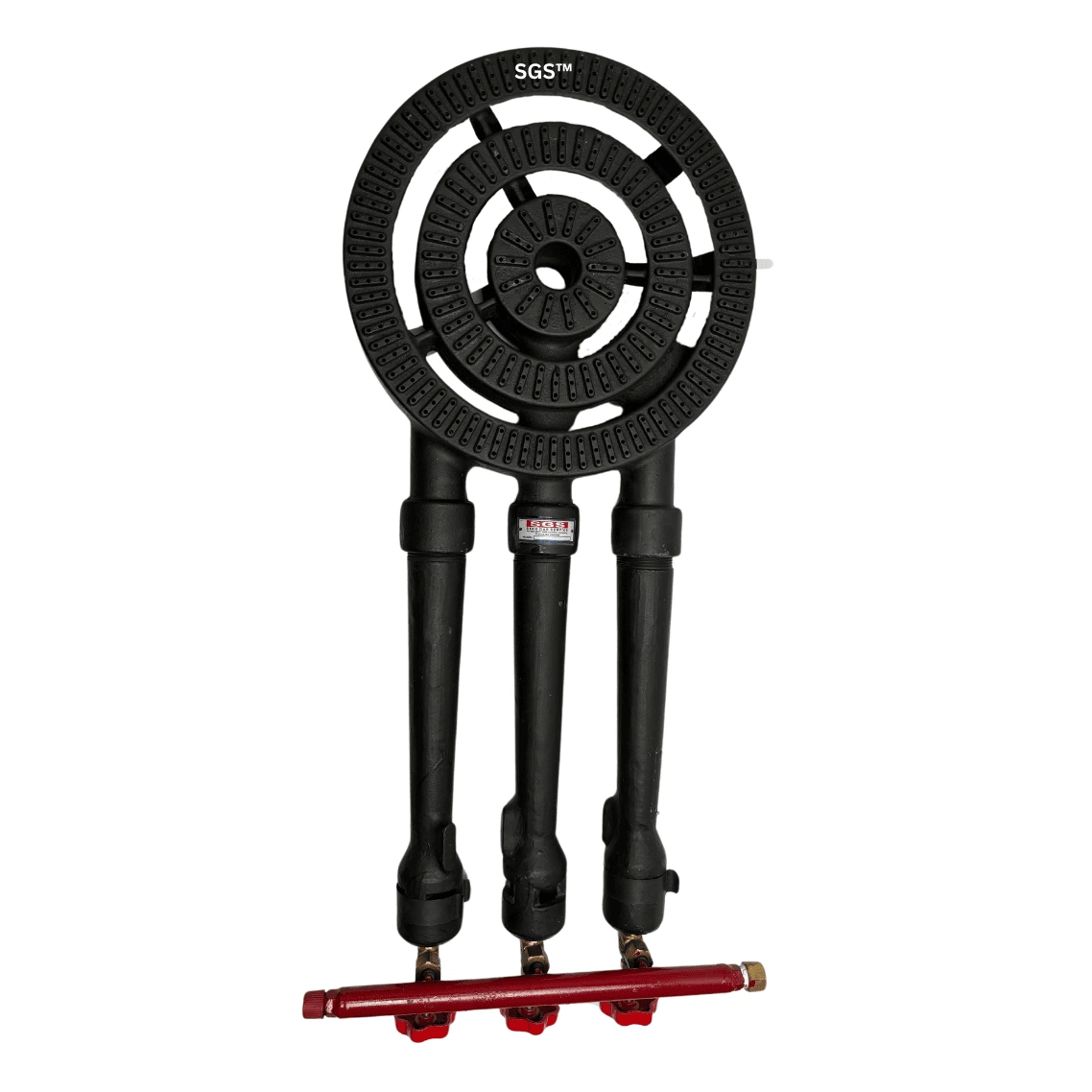

3 RING

5.5

457.2

18

215.9

8.5

88.9

3.5

2.8

0.40

0.64

1.41

7,060.60

28,000

19"X10"

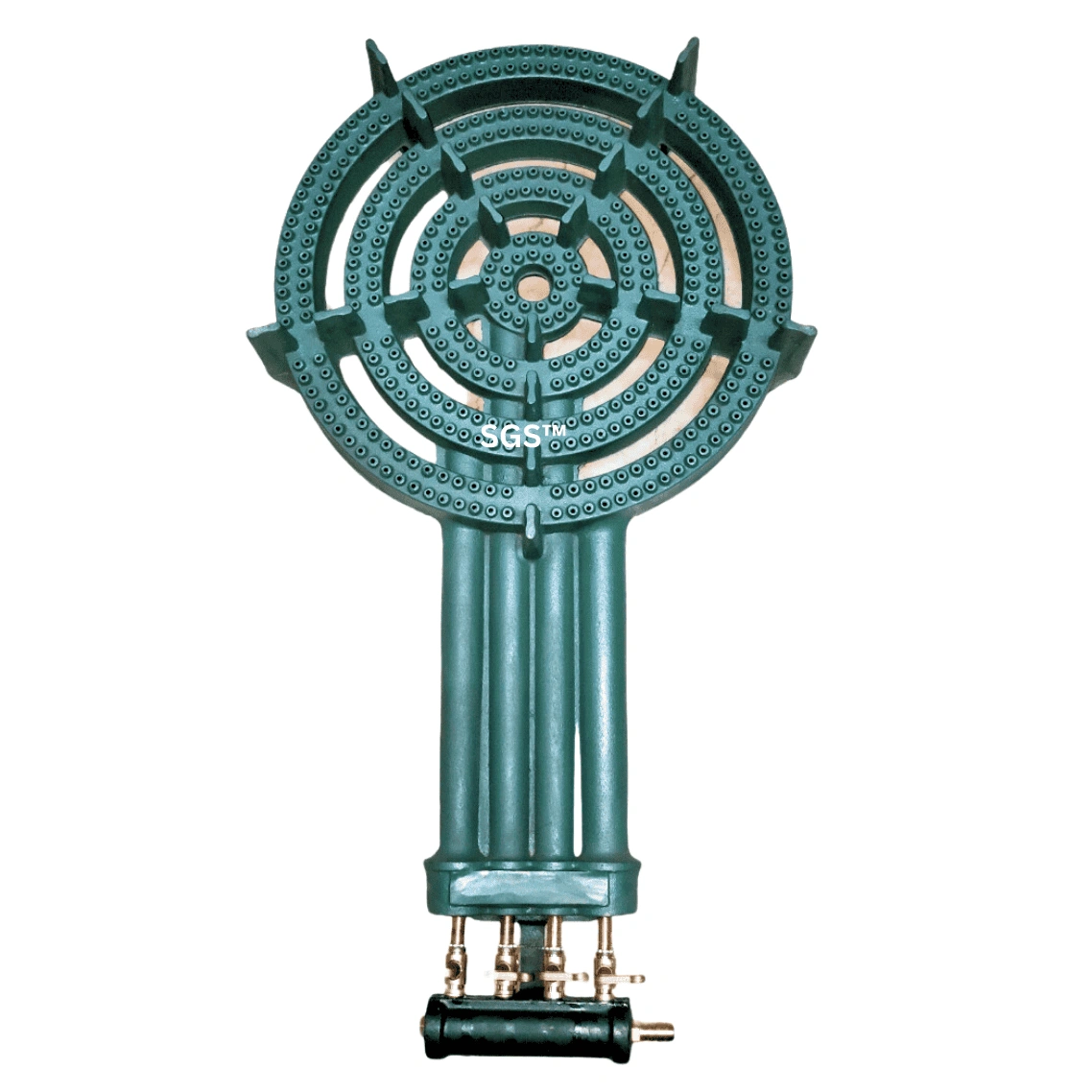

4 RING

10.5

635

25

335.2

13.2

106.68

4.2

2.8

0.40

1.21

2.66

13,616.87

54,000

26"X15"
