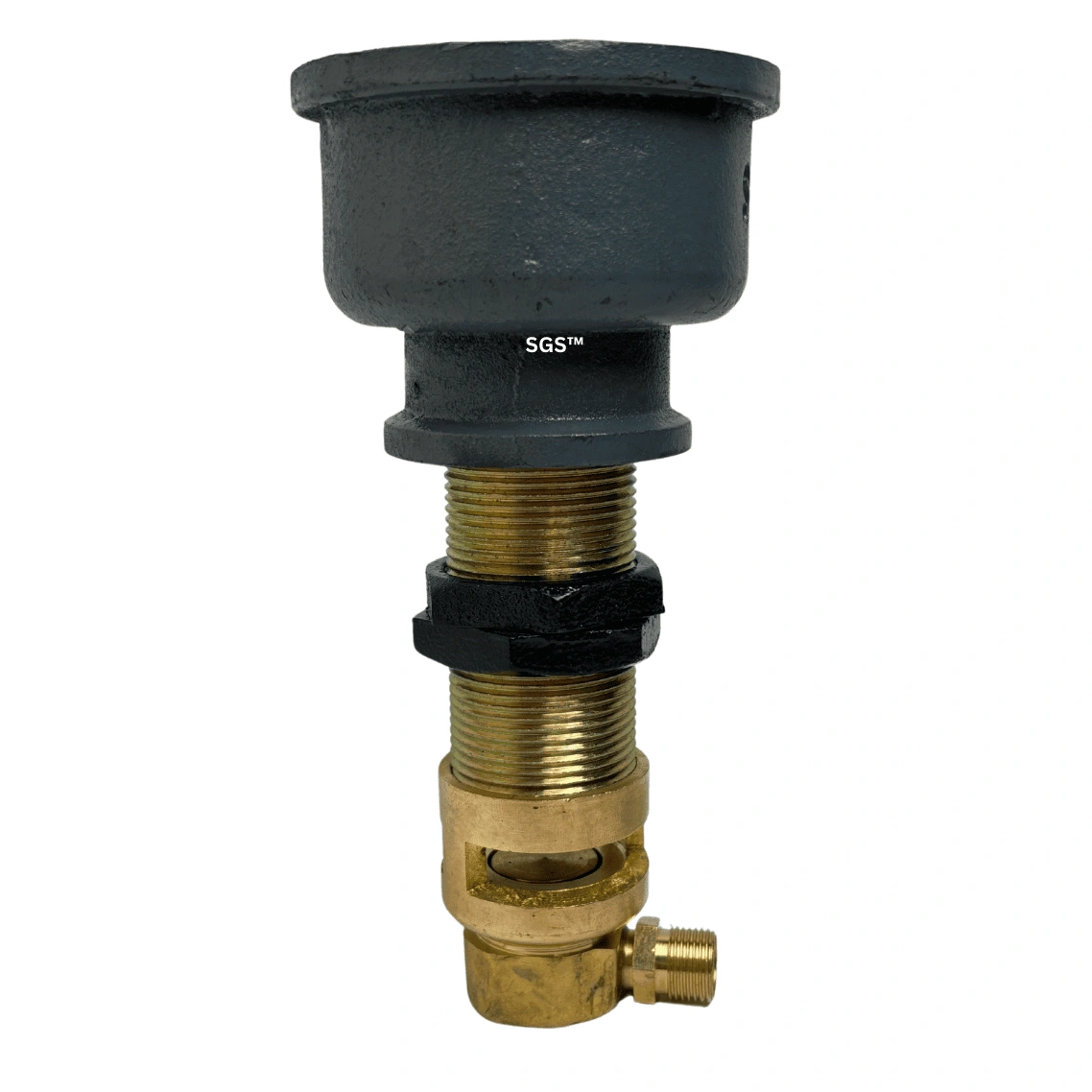

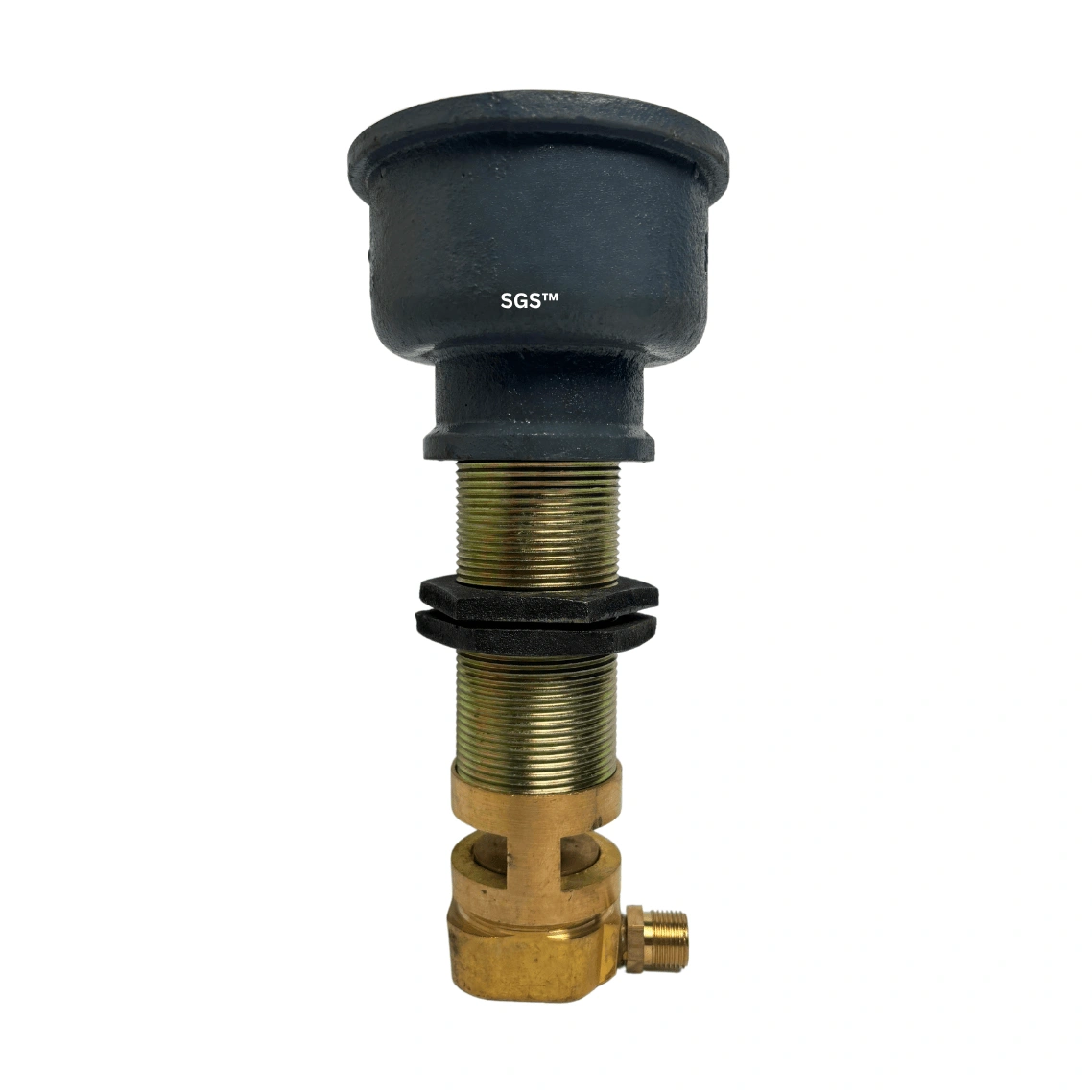

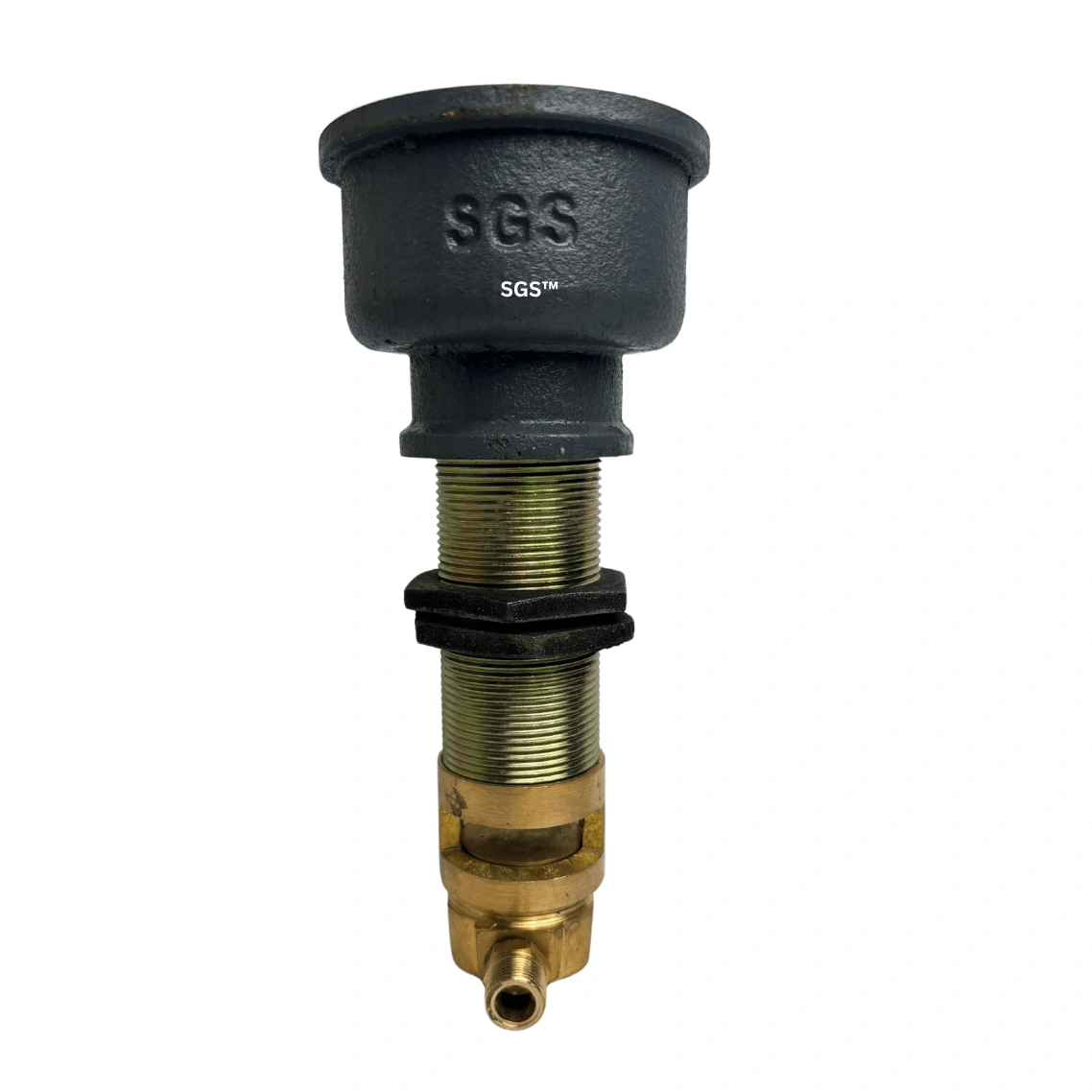

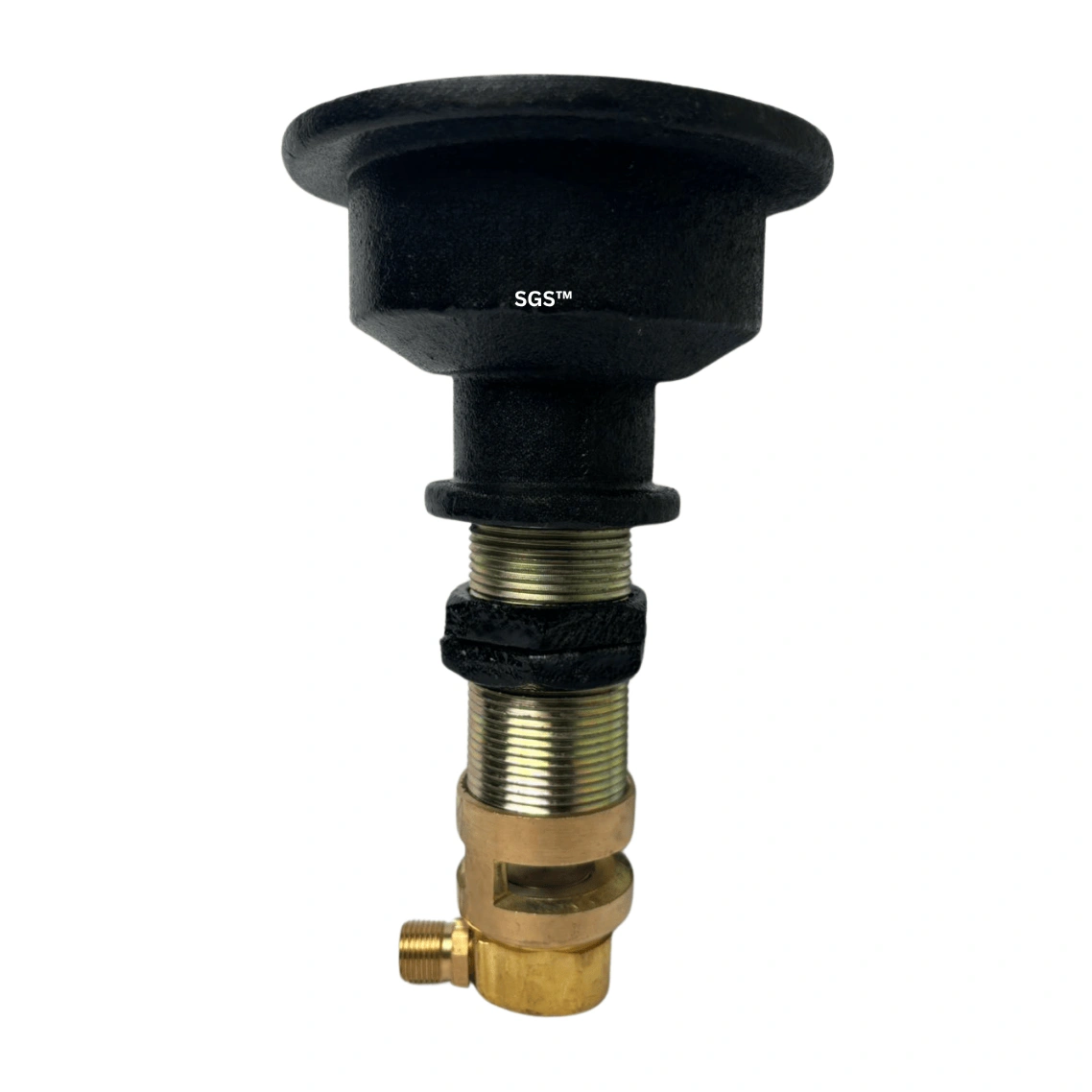

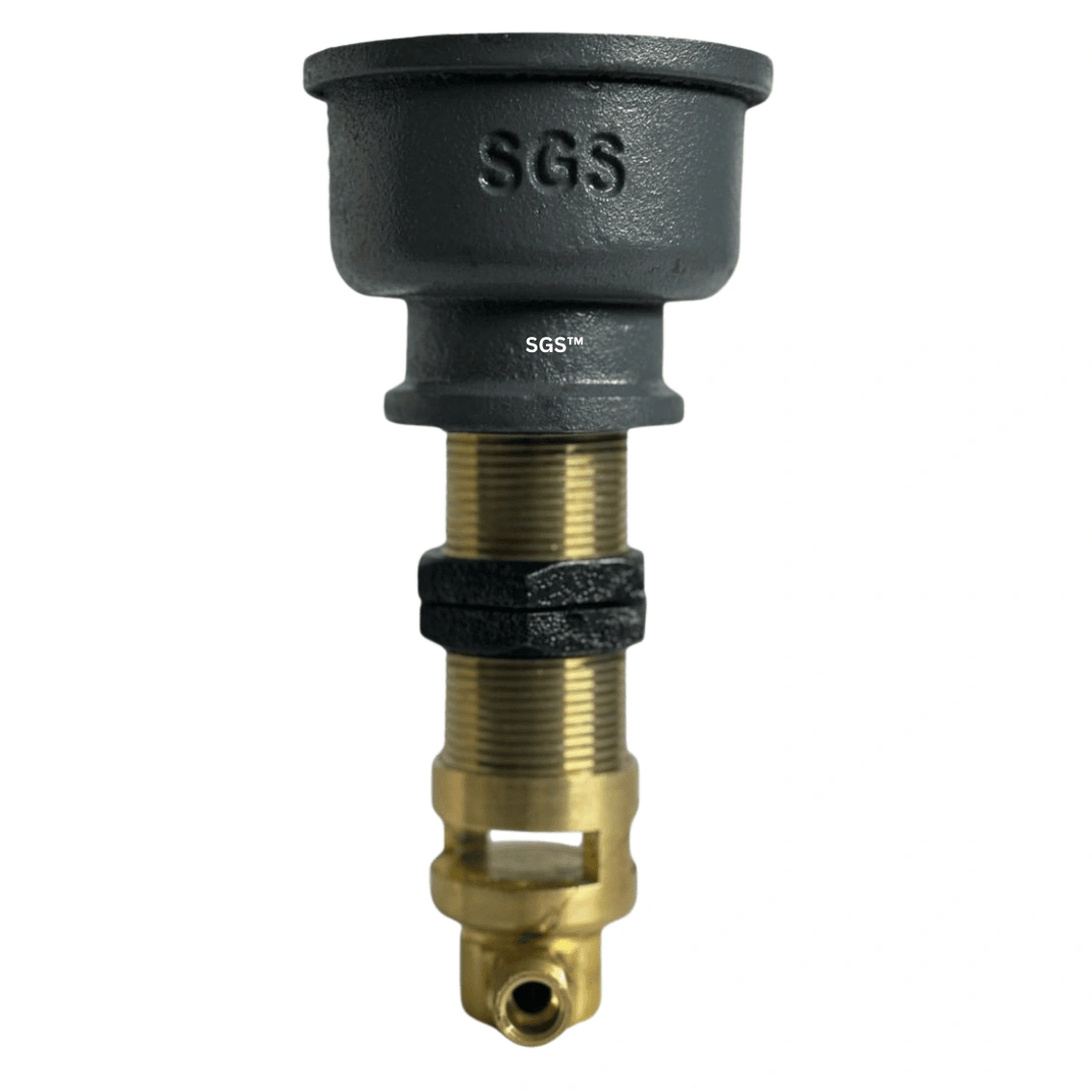

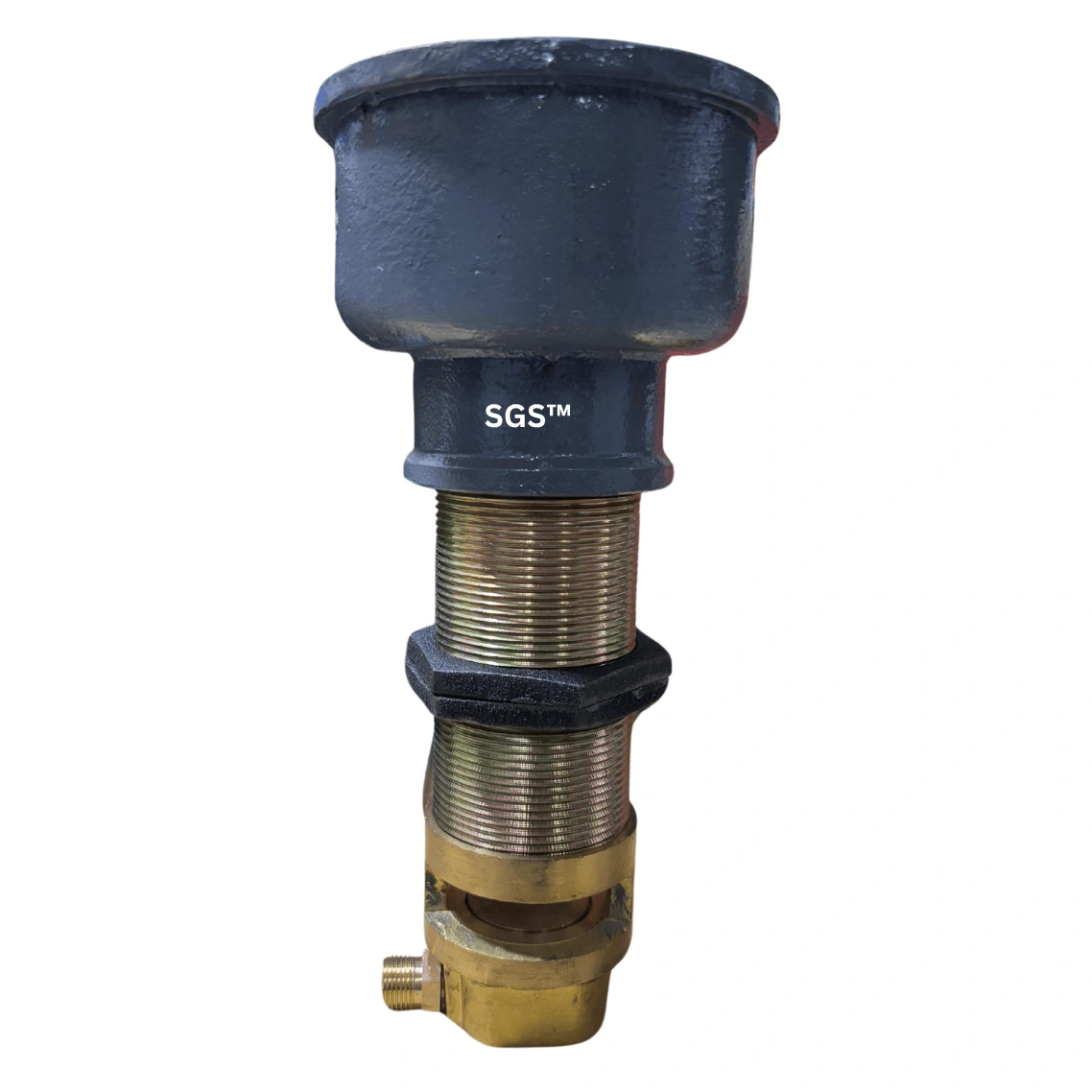

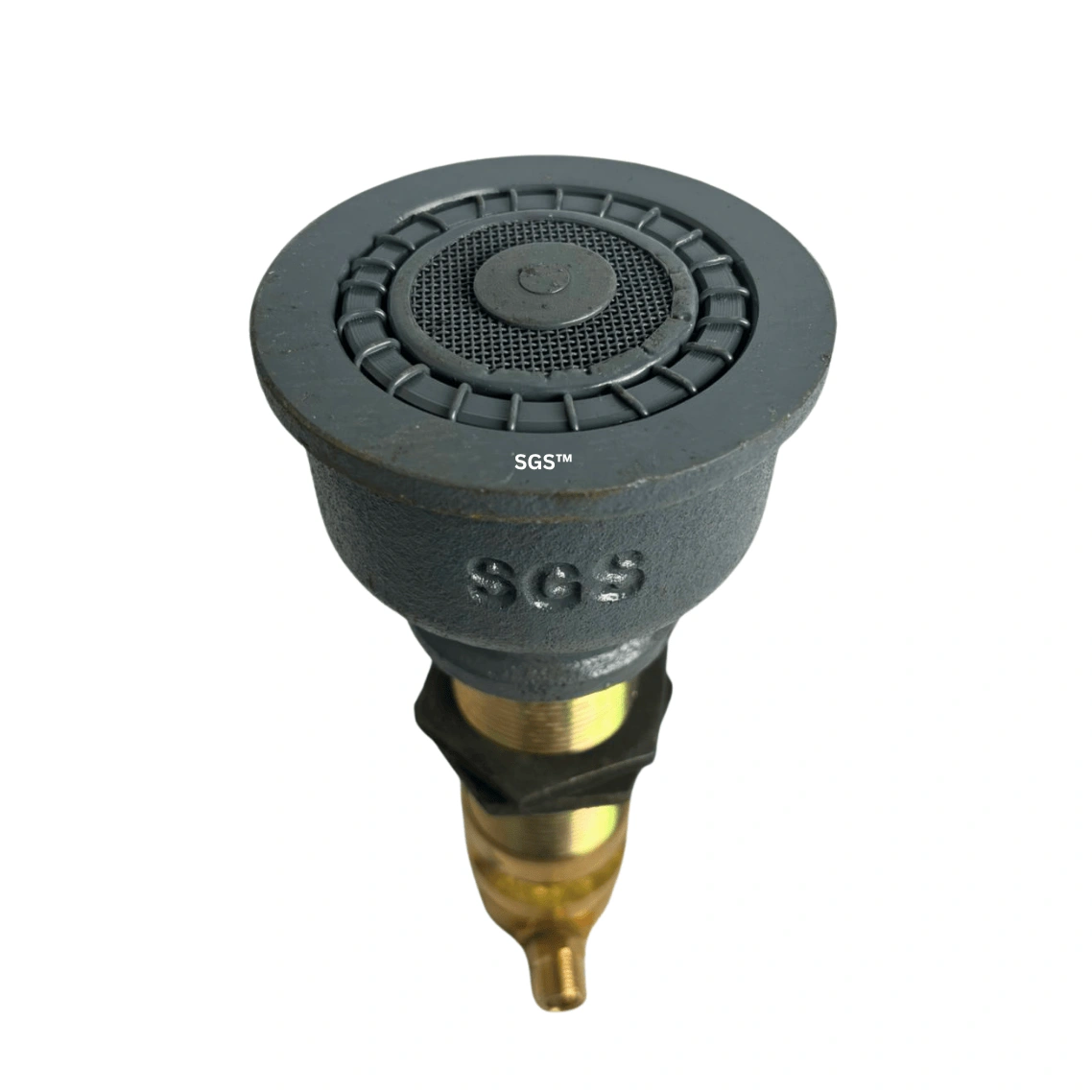

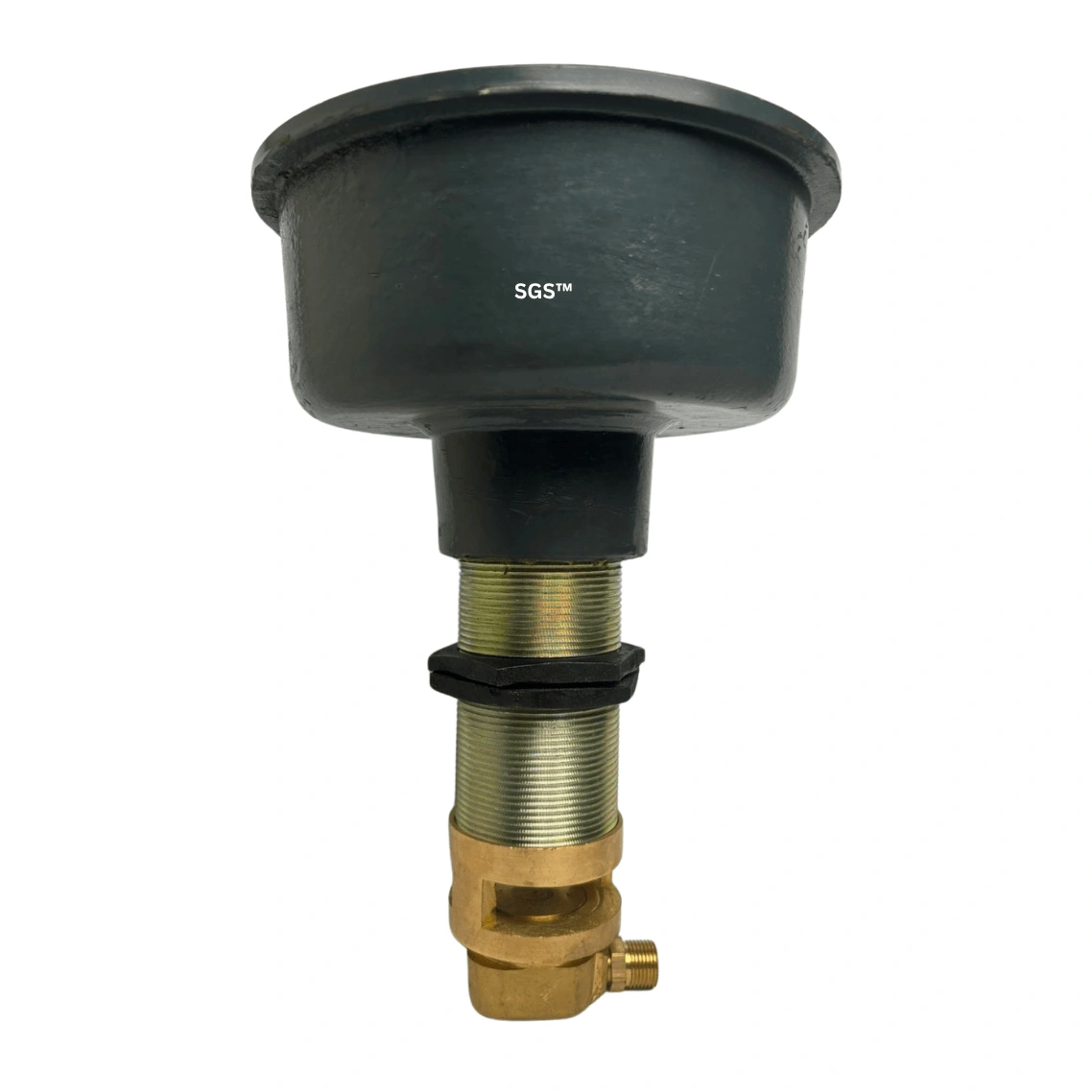

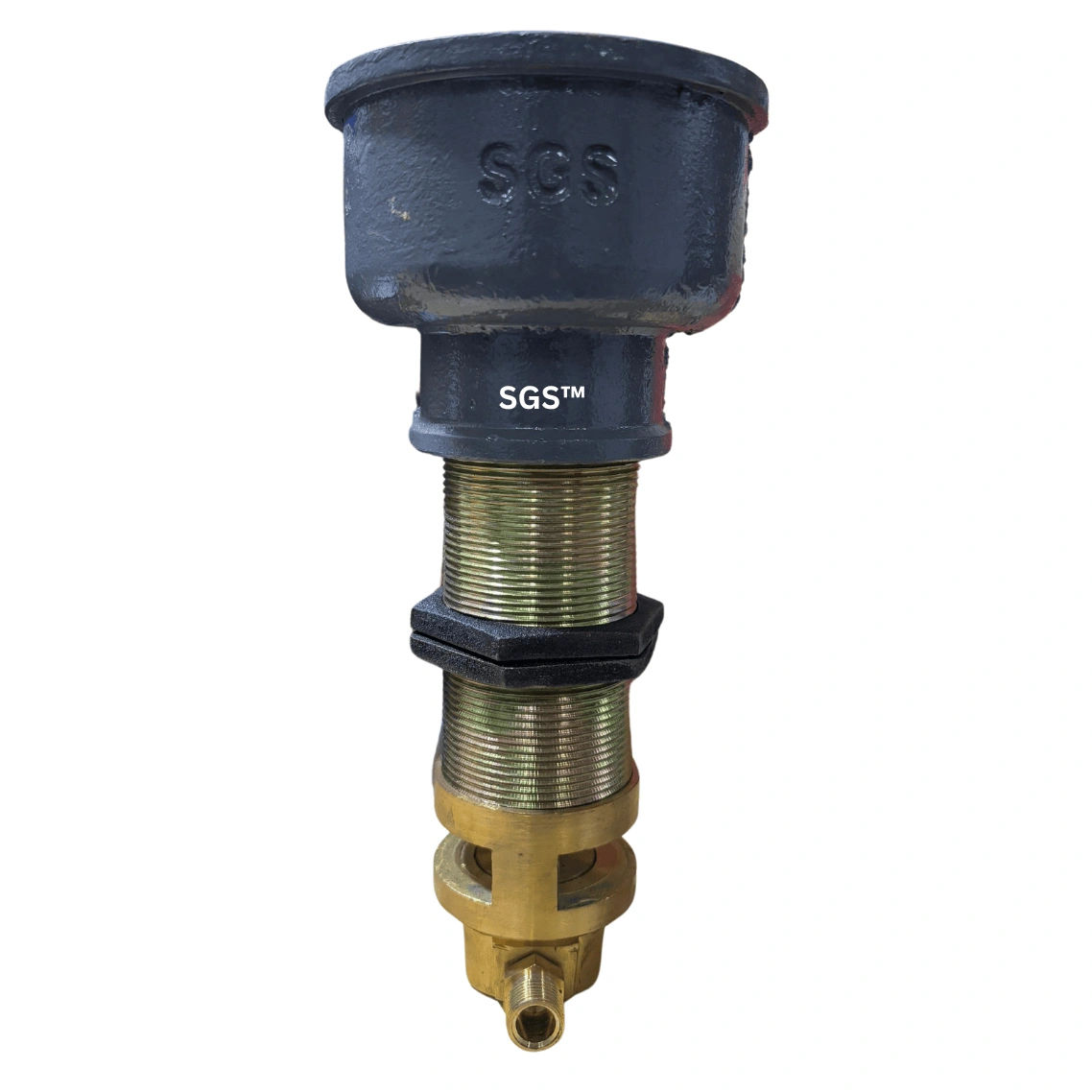

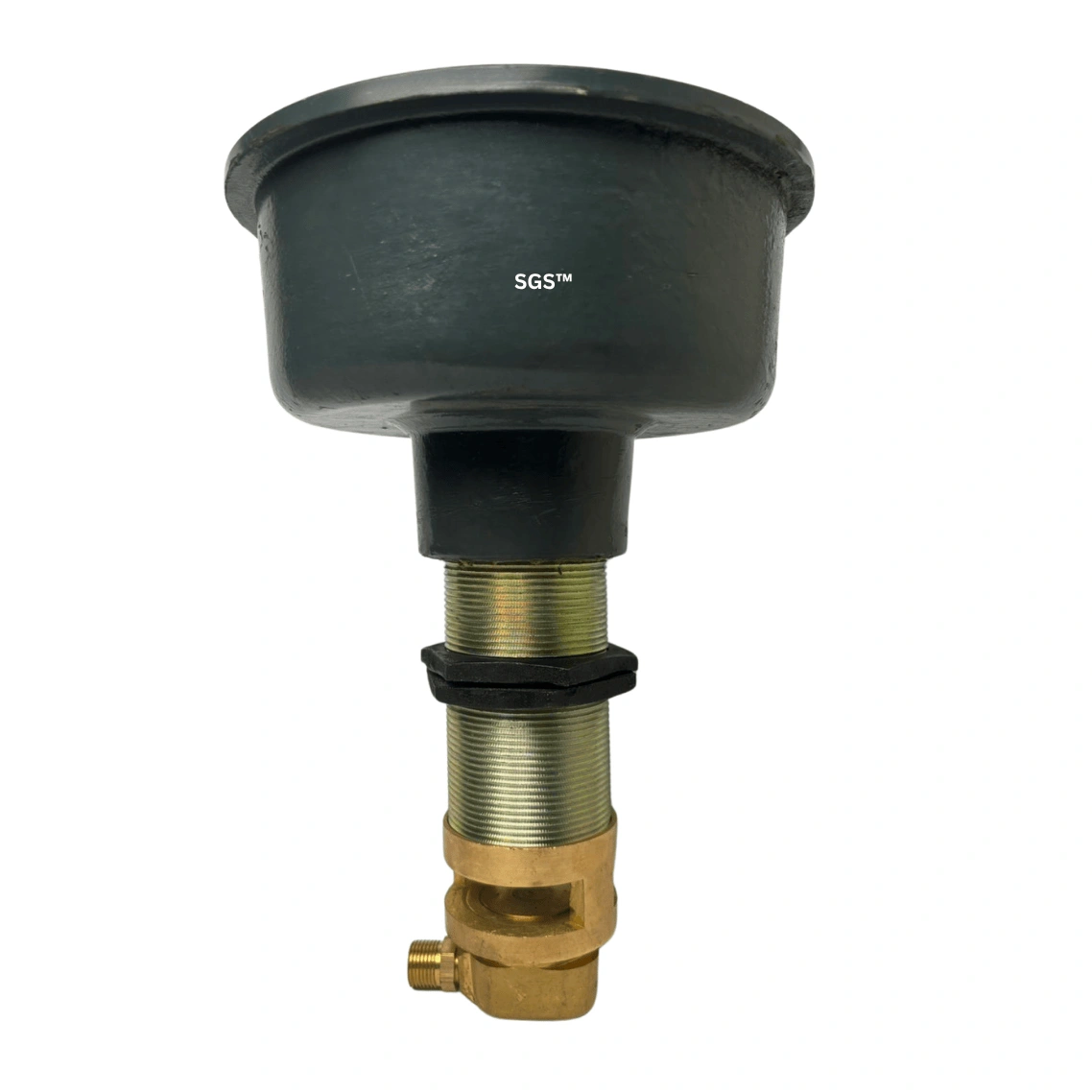

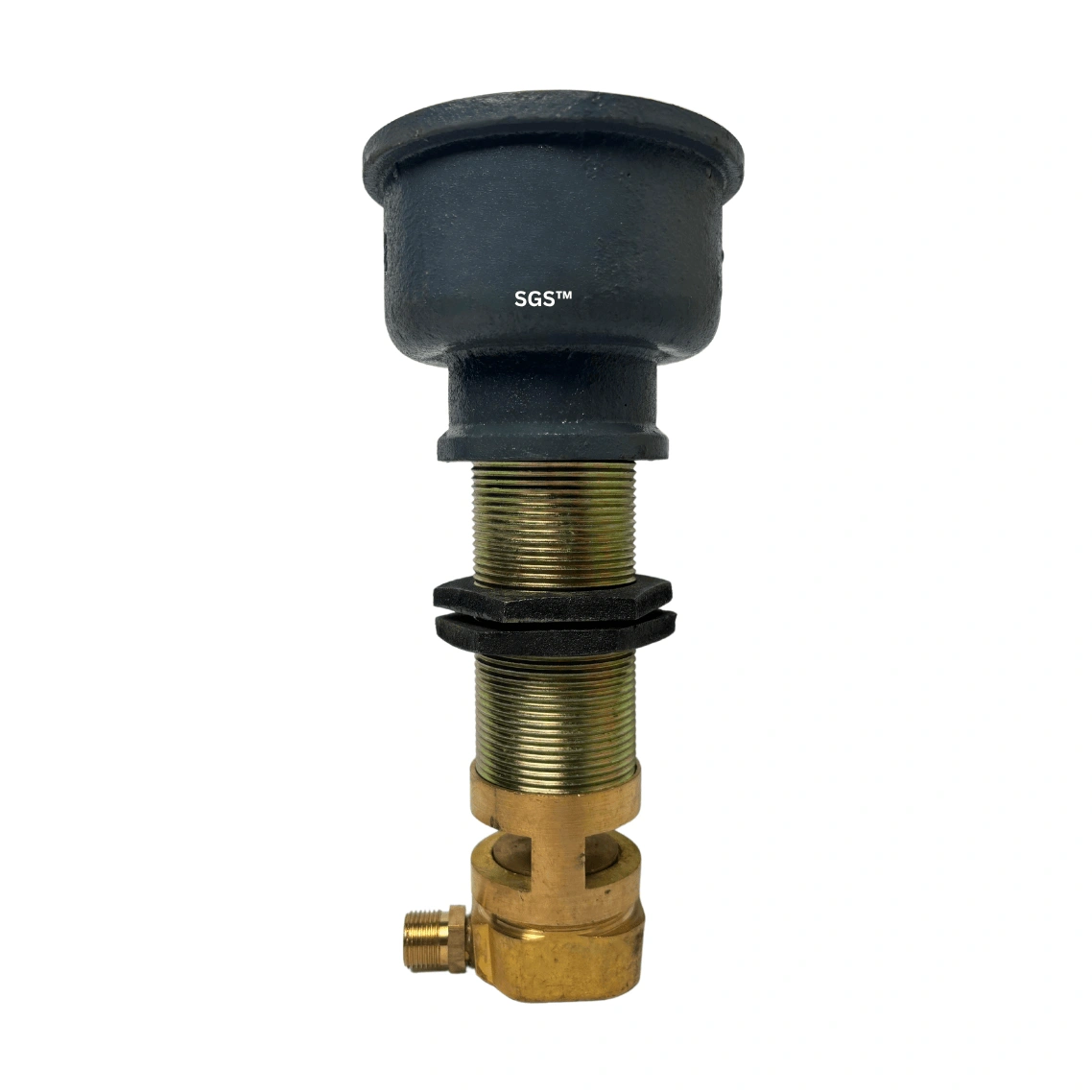

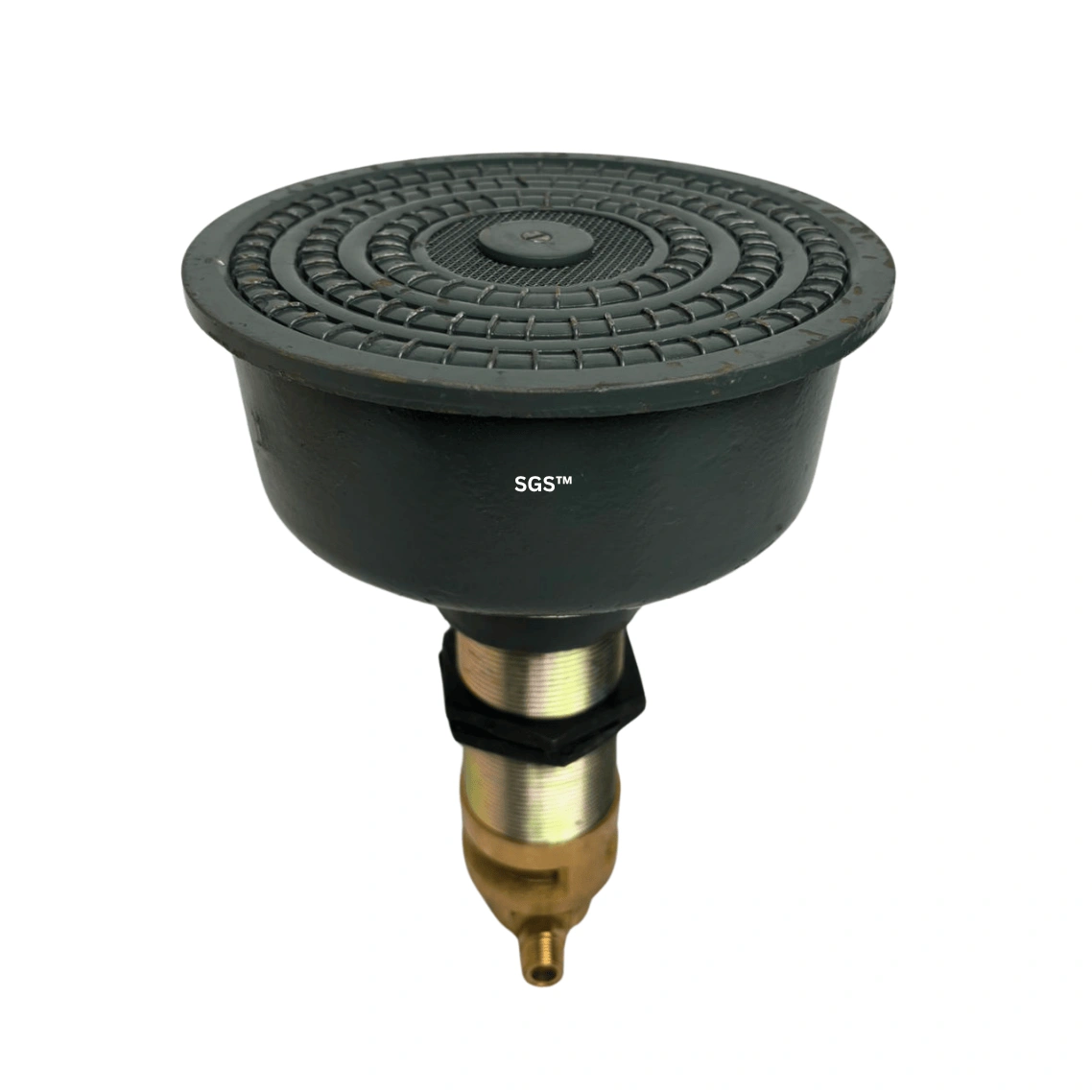

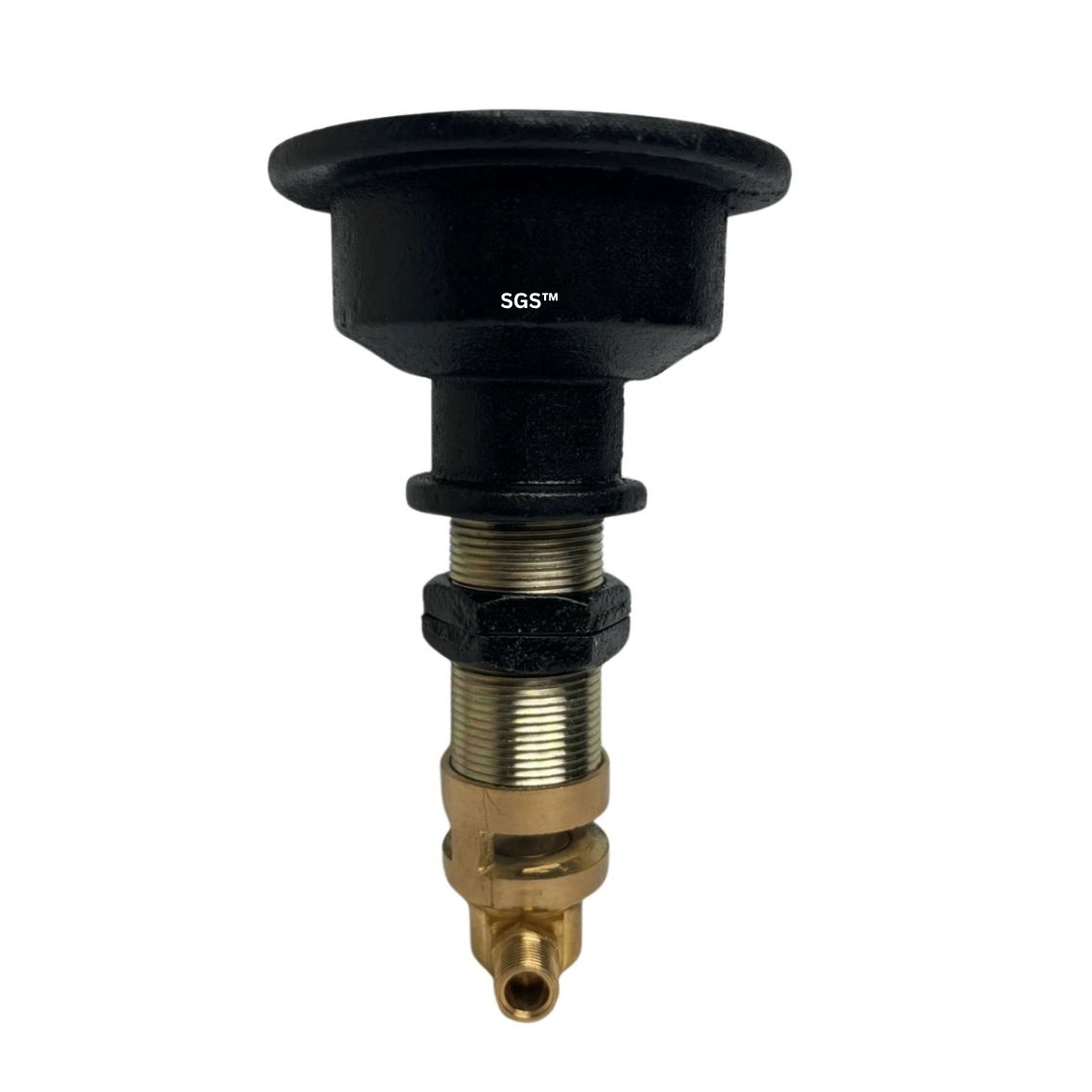

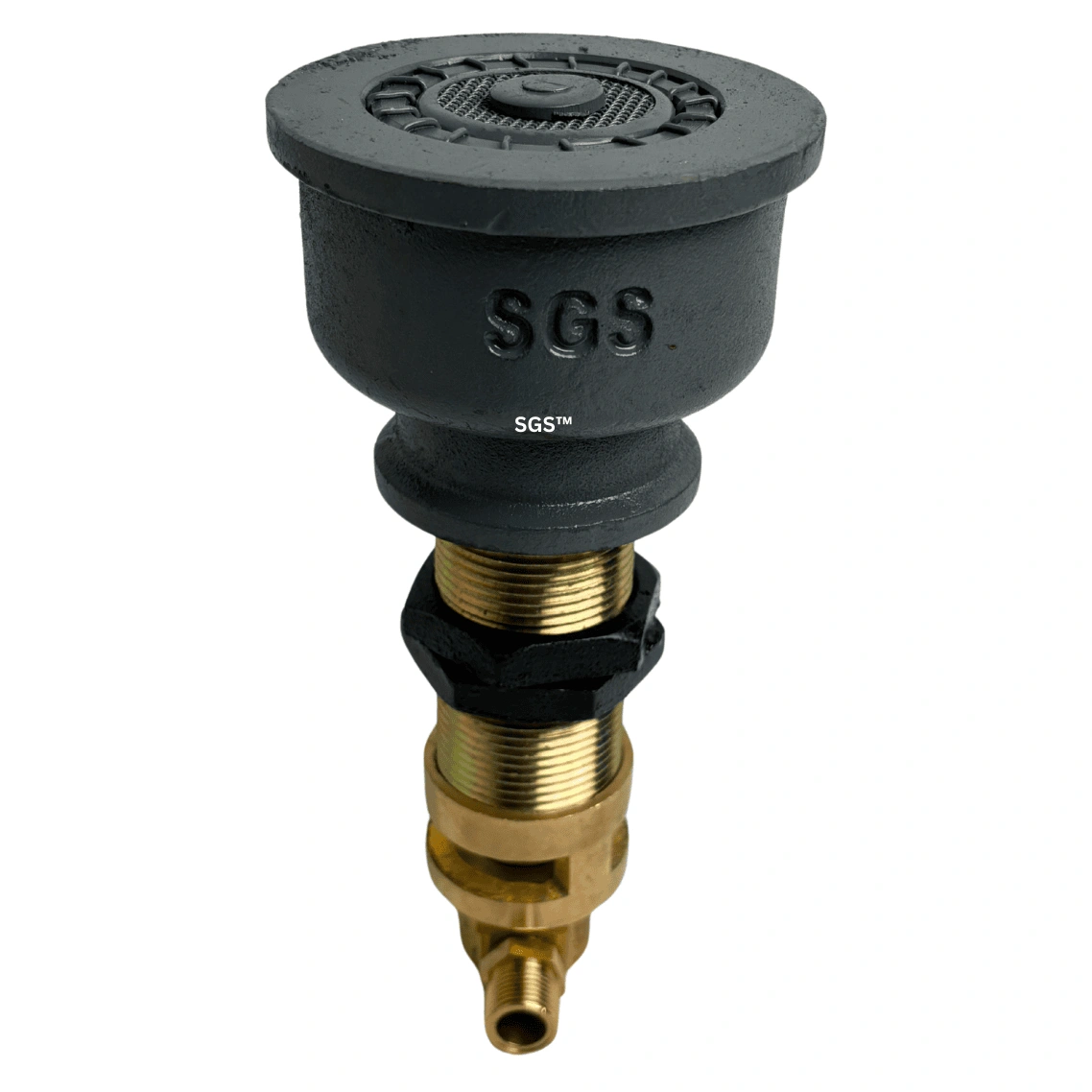

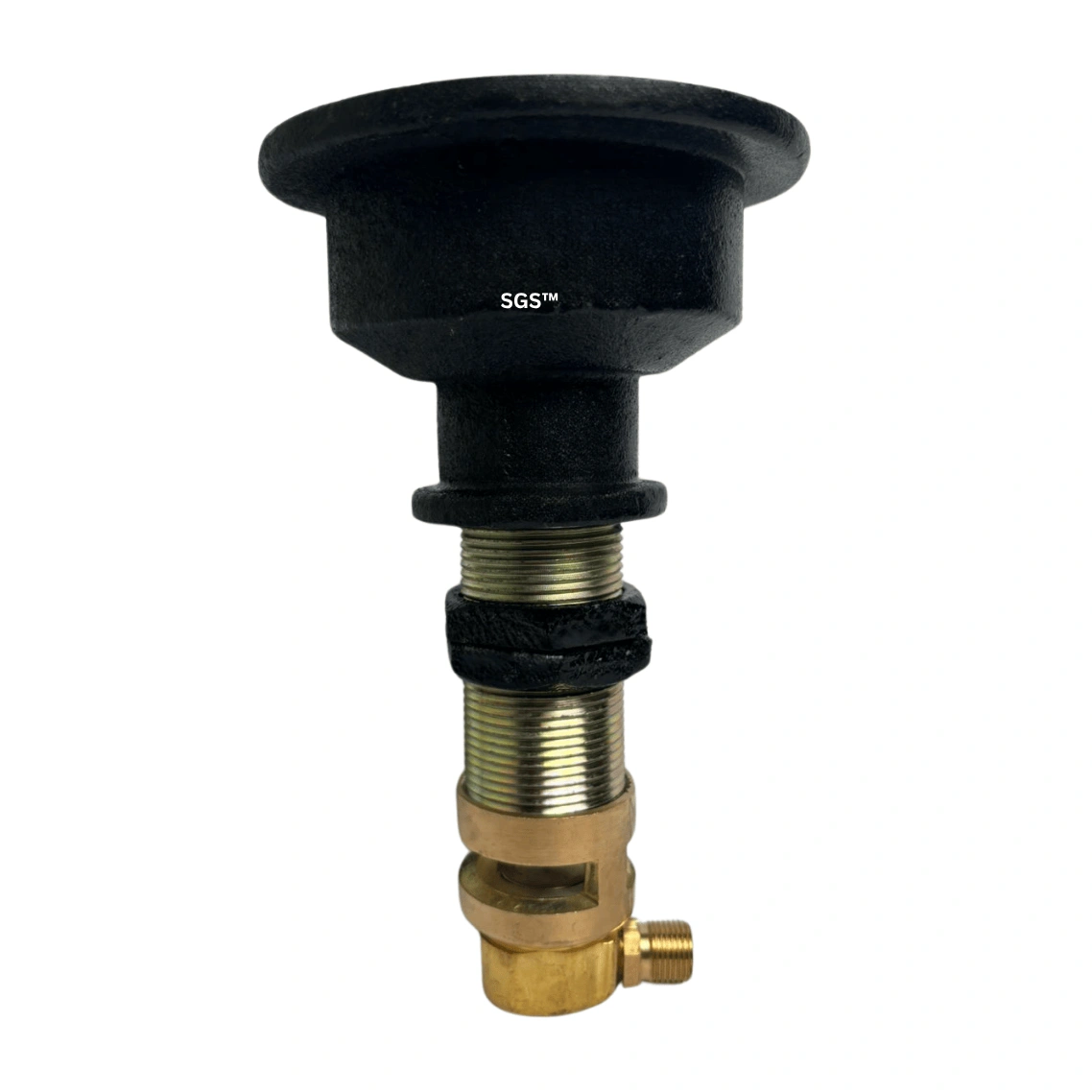

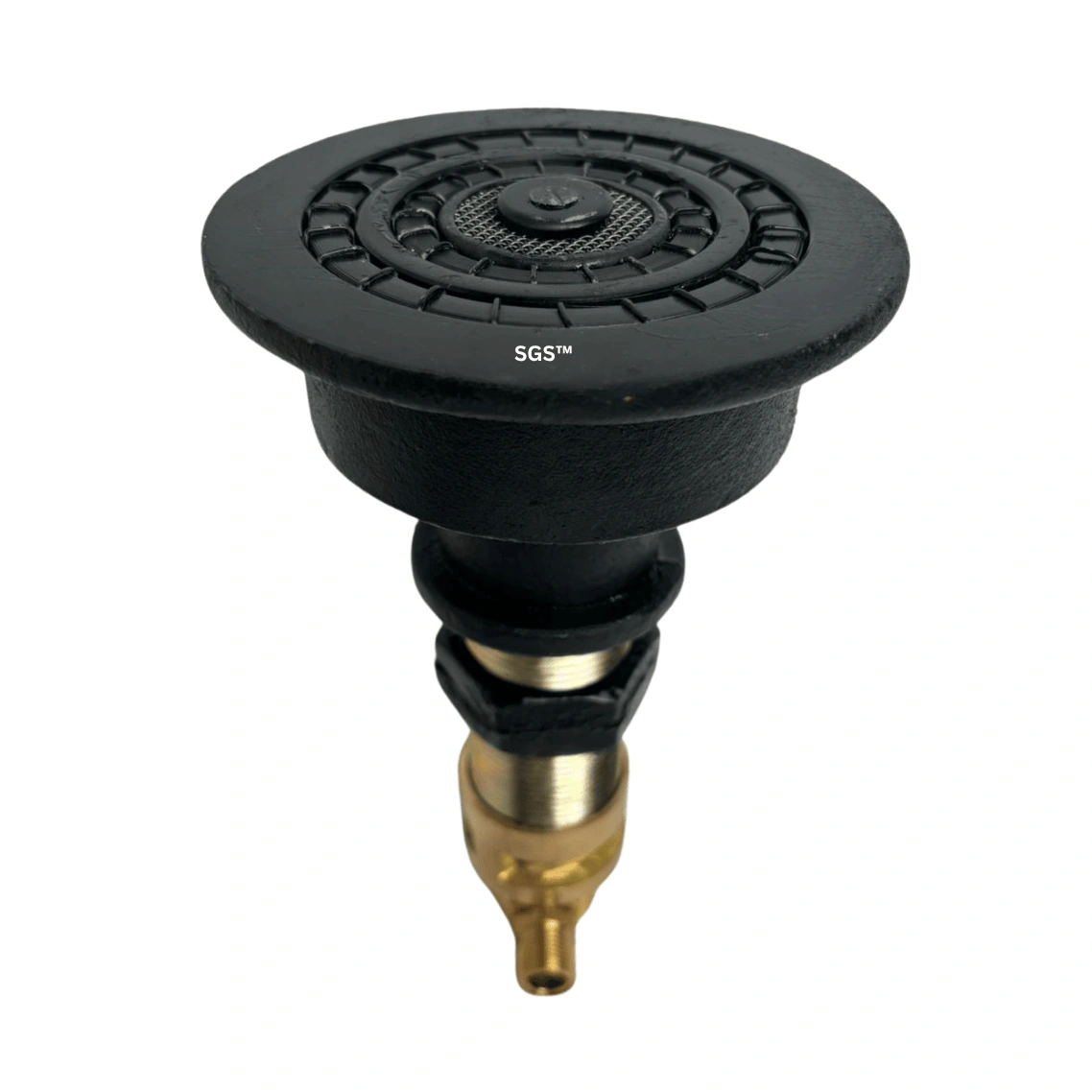

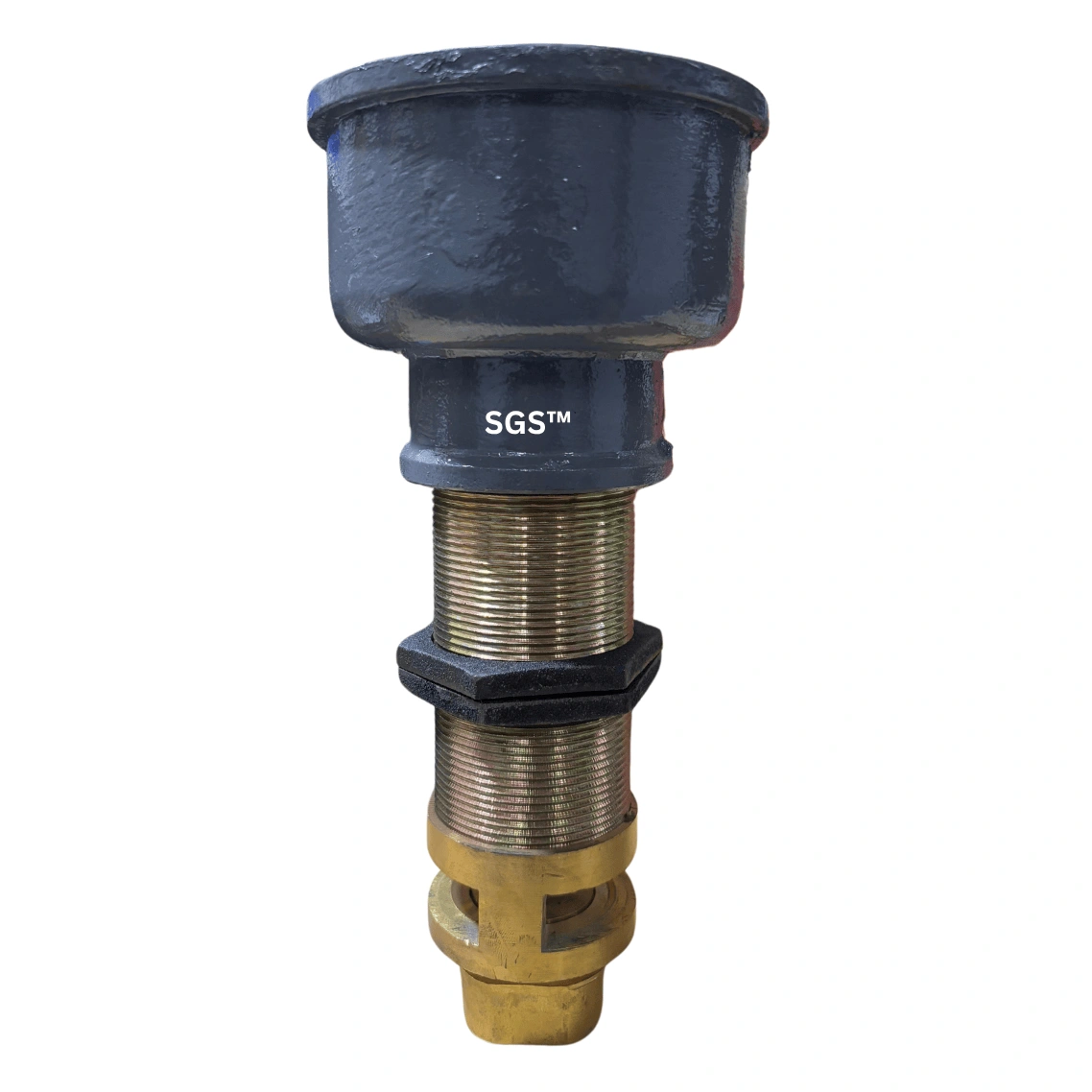

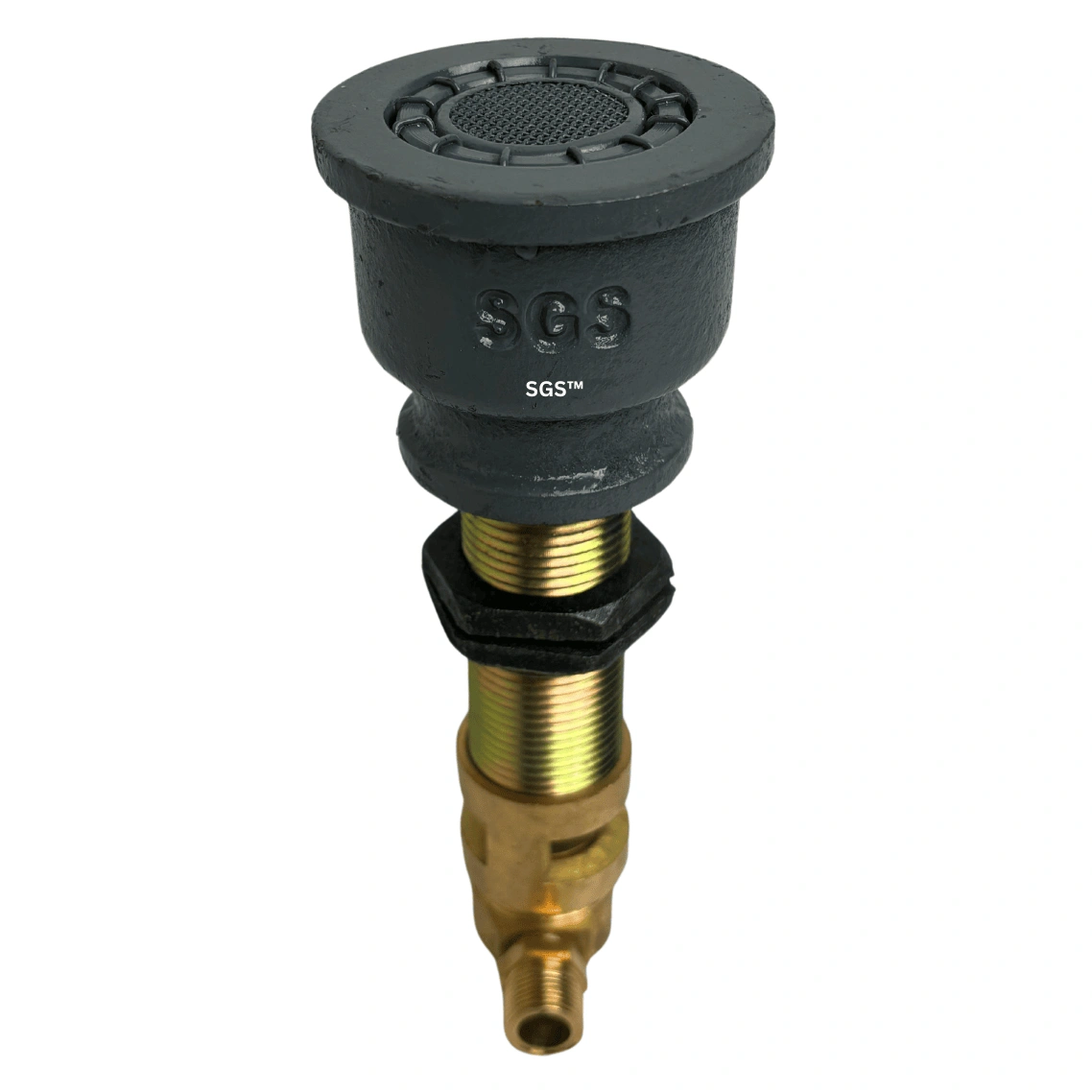

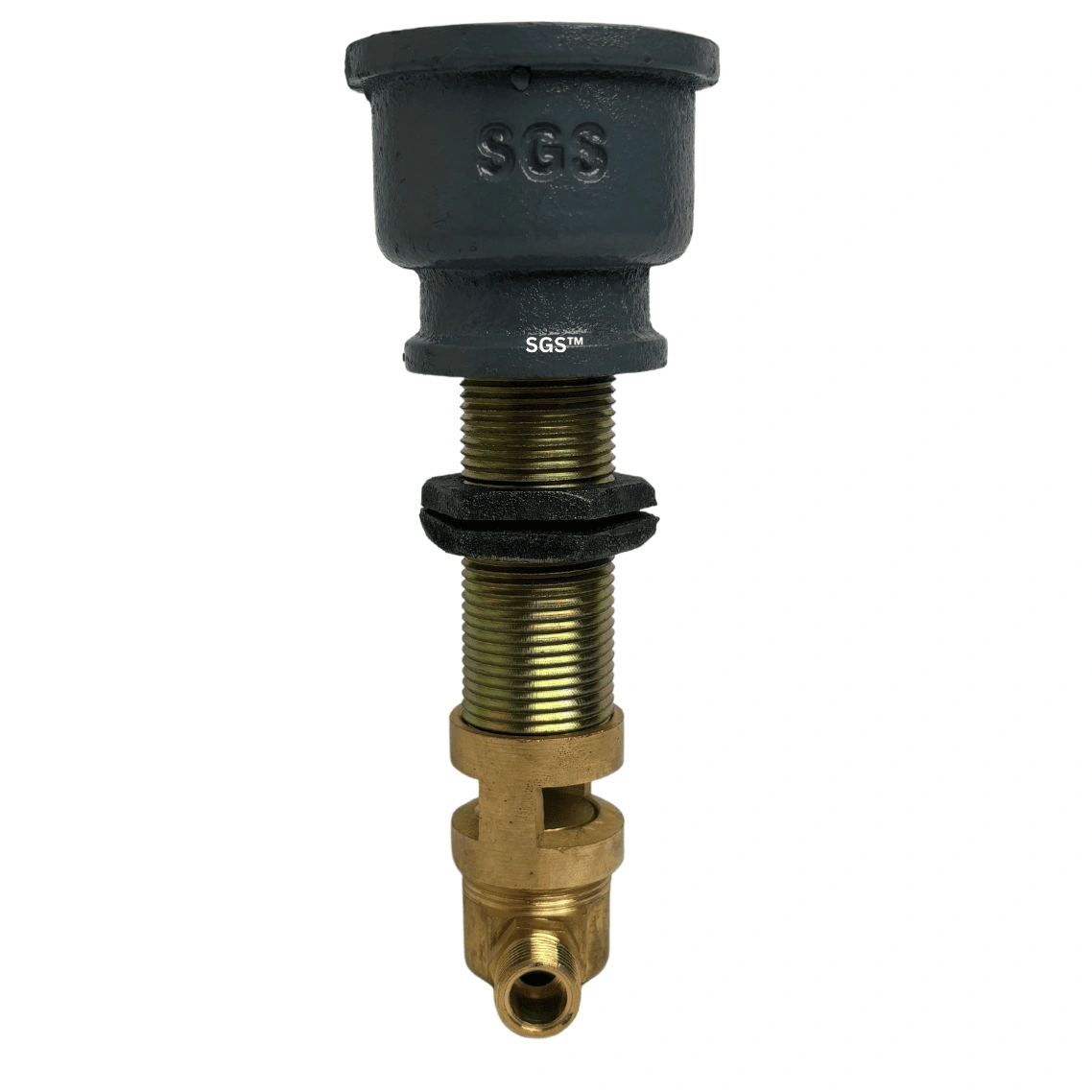

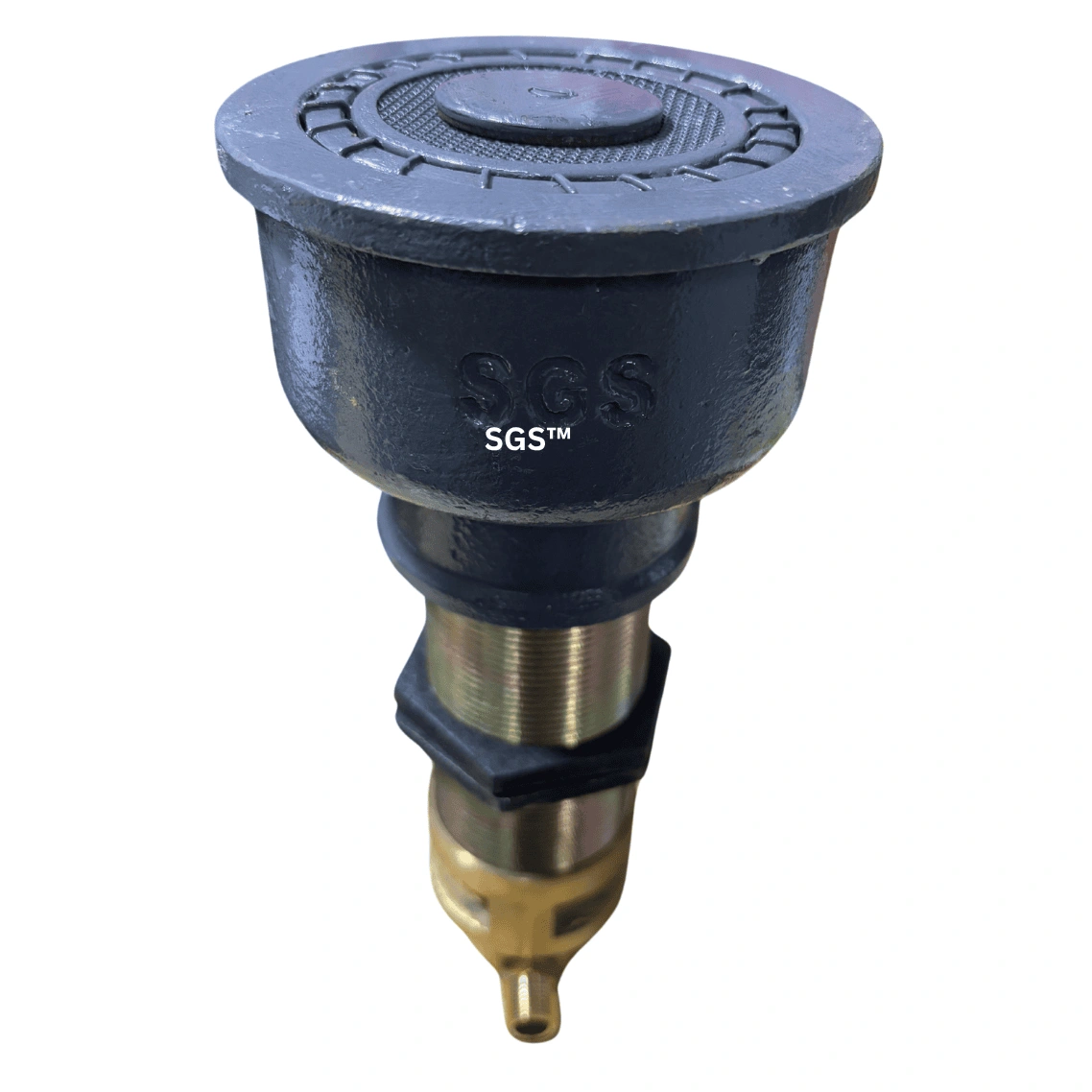

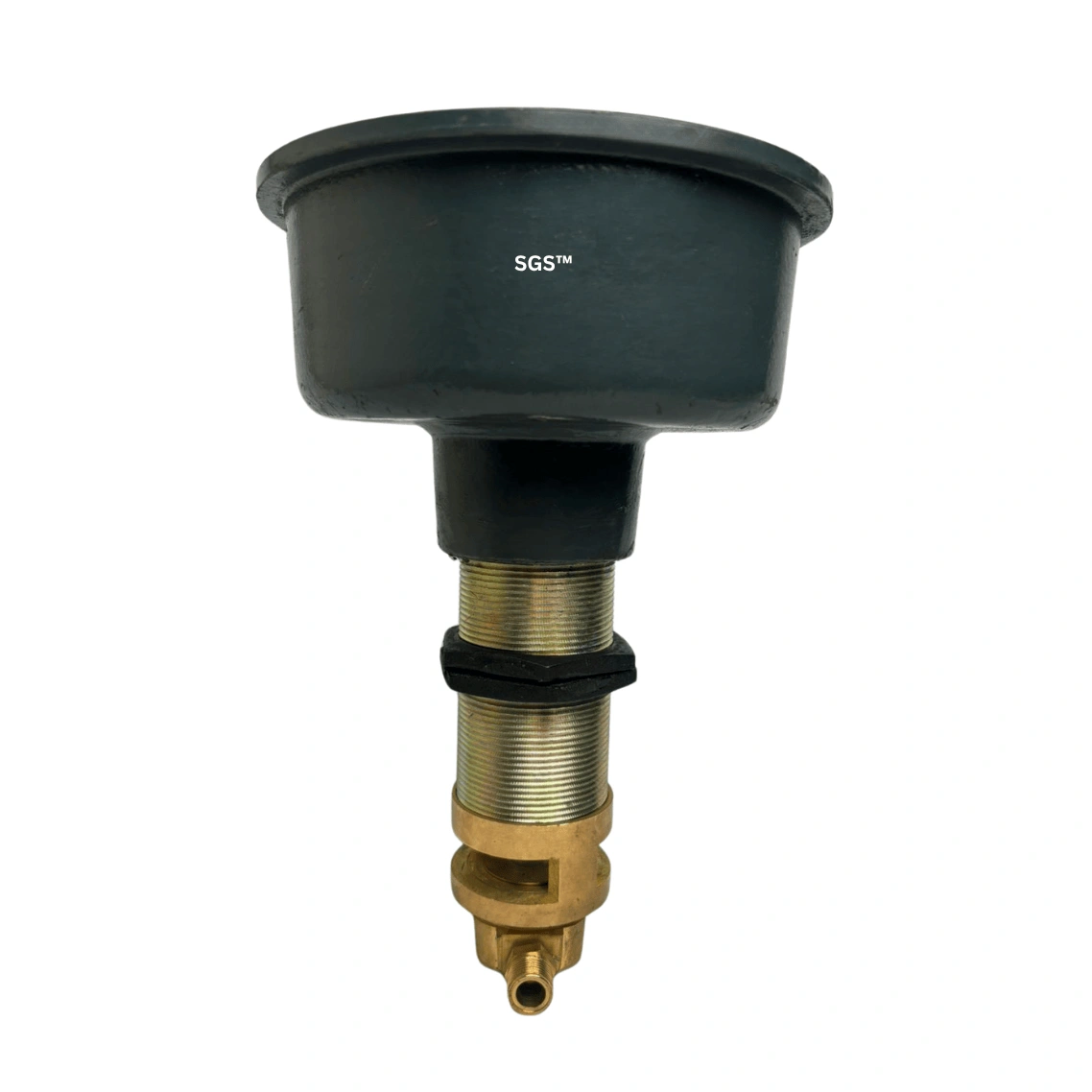

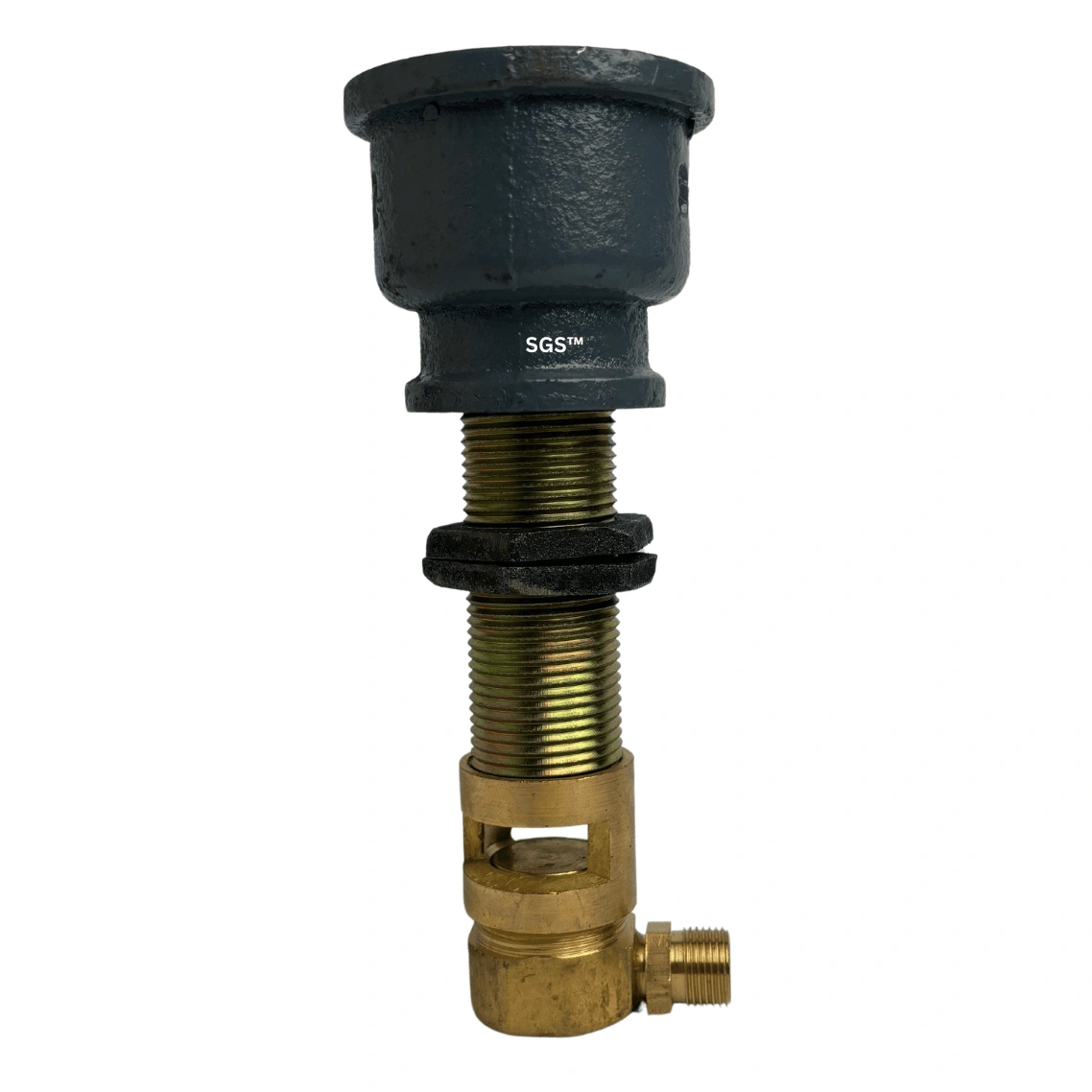

The SGS T-Type Gas Burner is engineered for reliable and efficient heat generation in a wide range of industrial and commercial applications.
It is designed to operate at an optimal pressure of 0.3 kg/cm² (4.5 psig), ensuring consistent flame stability and efficient combustion. The pressure can be adjusted within ±25%, allowing users to fine-tune heat output based on process requirements.
As pressure changes, the burner automatically adjusts heat output, providing precise thermal control for various heating operations.
Designed for 0.3 kg/cm² (4.5 psig) for stable and efficient combustion.
Supports ±25% variation for flexible heat control.
Heat output changes in response to pressure adjustments.
Ensures consistent combustion under varying operating conditions.
Built for durability and continuous operation in demanding environments.
Allows accurate temperature management for sensitive processes.
Optimized combustion improves fuel efficiency and performance.
Suitable for multiple industrial and commercial heating needs.
Ensures stable operation under varying pressure conditions.
Compatible with standard gas pressure systems and regulators.
The SGS T-Type Gas Burner offers precise control, stable flame performance, and flexible operation, making it ideal for industries requiring reliable and adjustable heat output.
Its pressure adaptability and efficient combustion design ensure consistent performance across a wide range of applications.
0.3 kg/cm² (4.5 psig).
Yes, ±25% adjustment is possible.
Yes, heat output varies with pressure settings.
Industrial and commercial heating applications.
Yes, it is designed for durable industrial operation.
MODEL NO. | APPROX. WEIGHT | DIMENSIONS | OPTIMUM WORKING PRESSURE | CONSUMPTION PER HOUR | RATED HEATED OUTPUT | ||||||
LENGTH | HEAD DIAMETER | ||||||||||
kgs | mm | ins | mm | ins | kg/cm2 | psig | kgs | lbs | kcal/hr | btu/hr | |
T-22 | 1.00 | 190.5 | 7.5 | 73.4 | 2.89 | 0.3 | 4.5 | 0.9 | 2 | 10,100 | 40,000 |
T-35 | 1.62 | 200.6 | 7.9 | 90.17 | 3.55 | 0.3 | 4.5 | 1.58 | 3.5 | 17,650 | 70,000 |
T-50 | 2.00 | 228.6 | 9 | 101.6 | 4 | 0.3 | 4.5 | 2.4 | 5 | 25,200 | 1,00,000 |
T-65 | 2.10 | 216.4 | 8.52 | 125.4 | 4.94 | 0.3 | 4.5 | 2.9 | 6.3 | 32,800 | 1,30,000 |
T-78 | 3.02 | 264.1 | 10.4 | 127 | 5 | 0.3 | 4.5 | 3.56 | 7.8 | 40,350 | 1,60,000 |
T-100(BIG) | 5.50 | 279.4 | 11 | 190.5 | 7.5 | 0.3 | 4.5 | 4.94 | 11 | 55,550 | 2,20,000 |
T-100(SMALL) | 3.60 | 255 | 10 | 150 | 6 | 0.3 | 4.5 | 4.94 | 11 | 55,550 | 2,20,000 |
