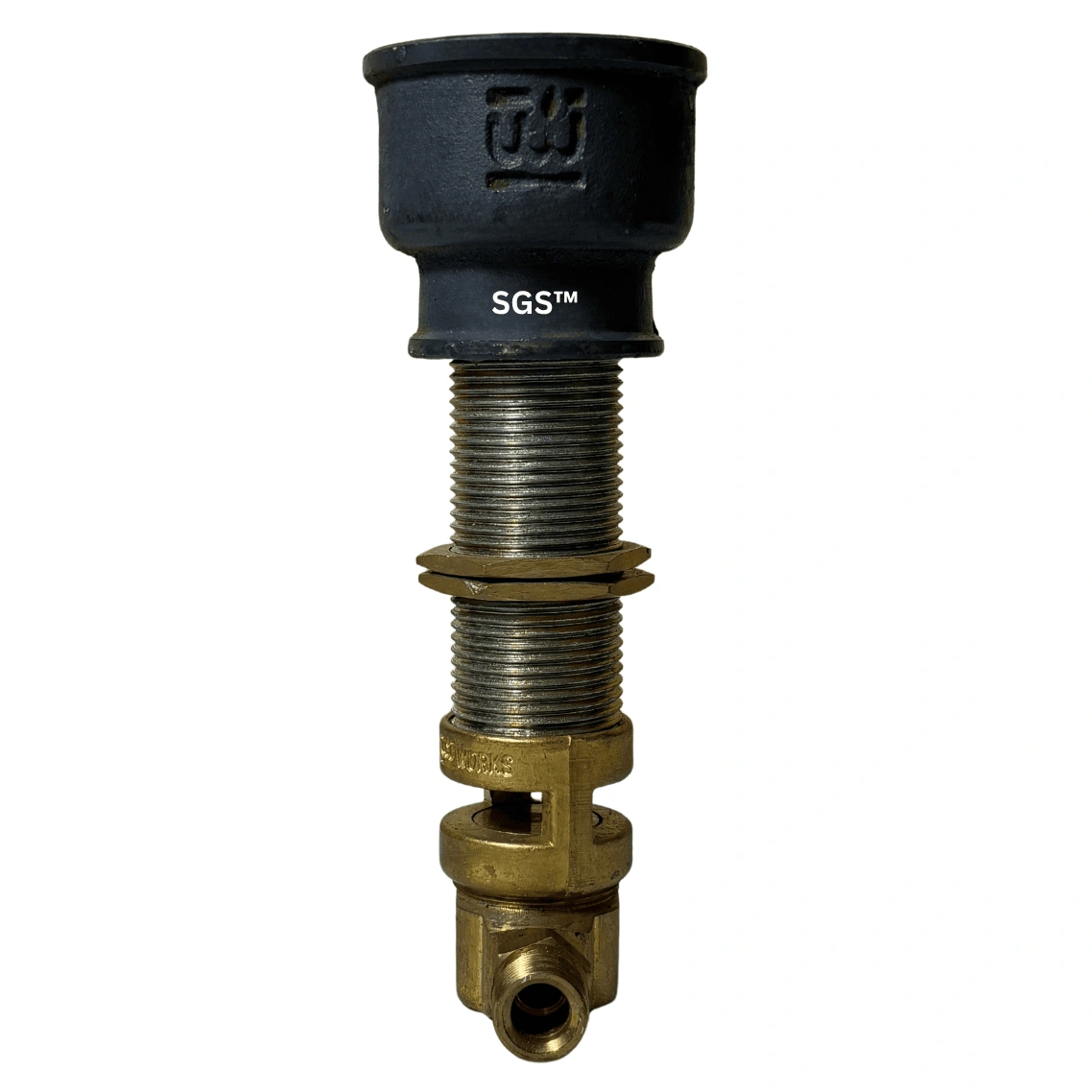

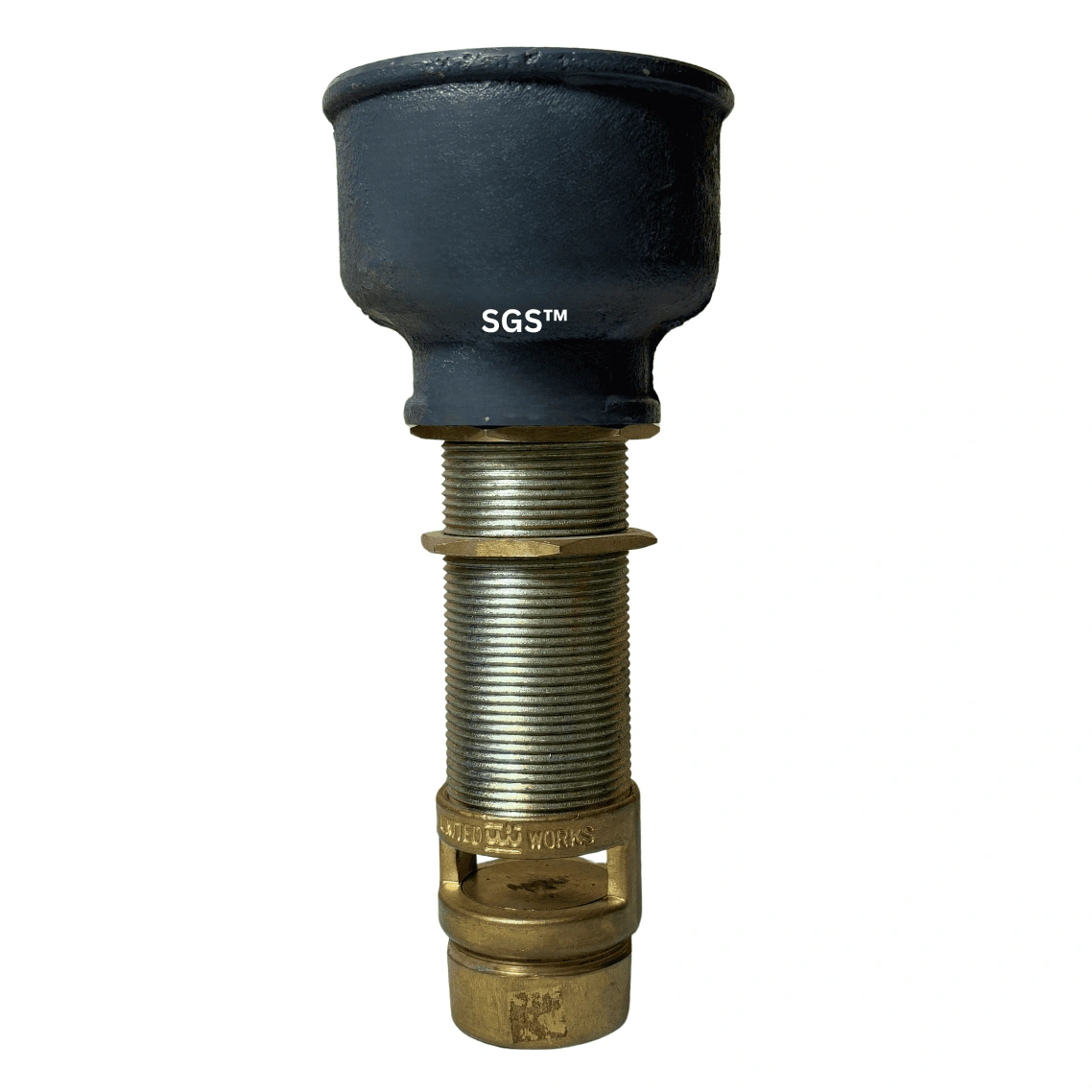

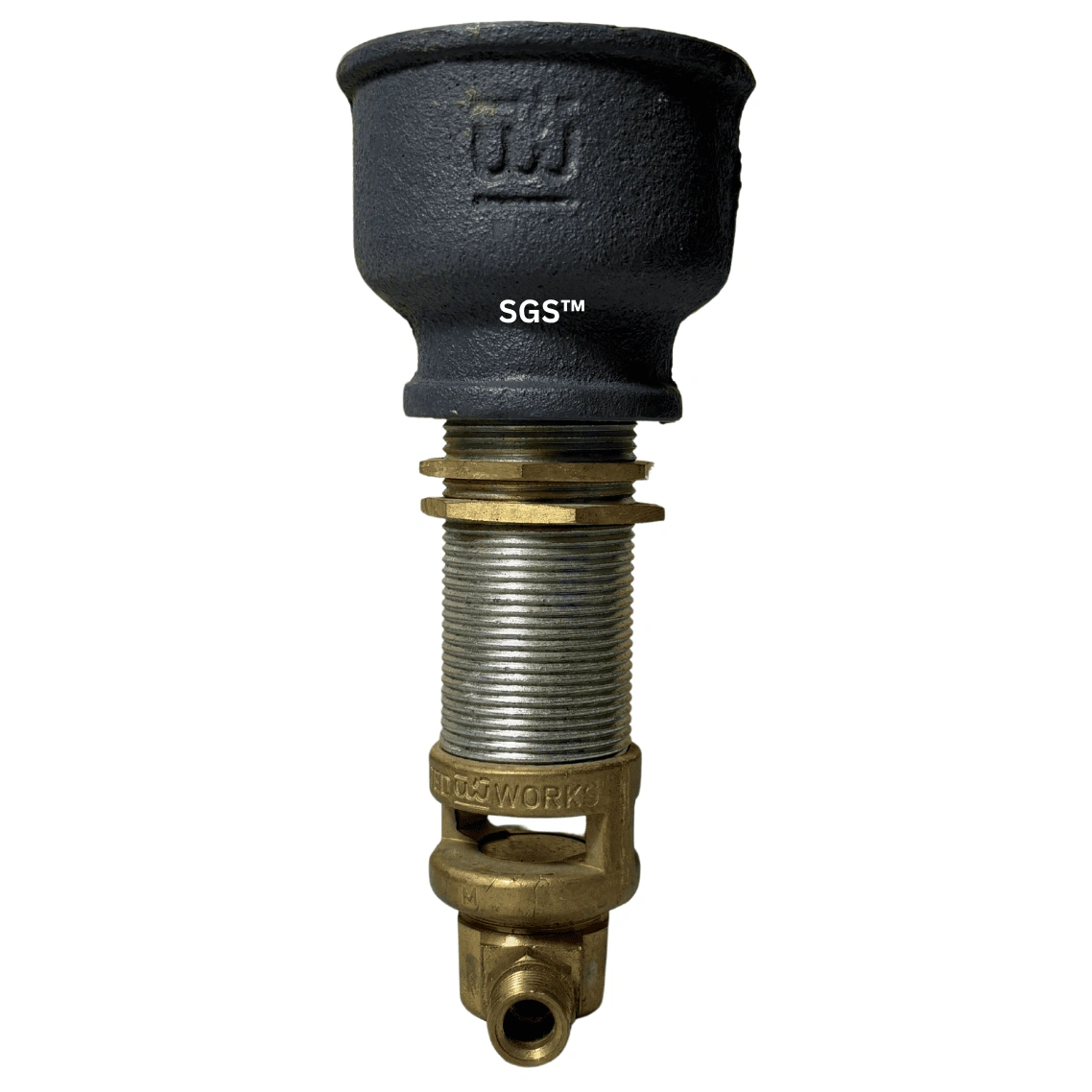

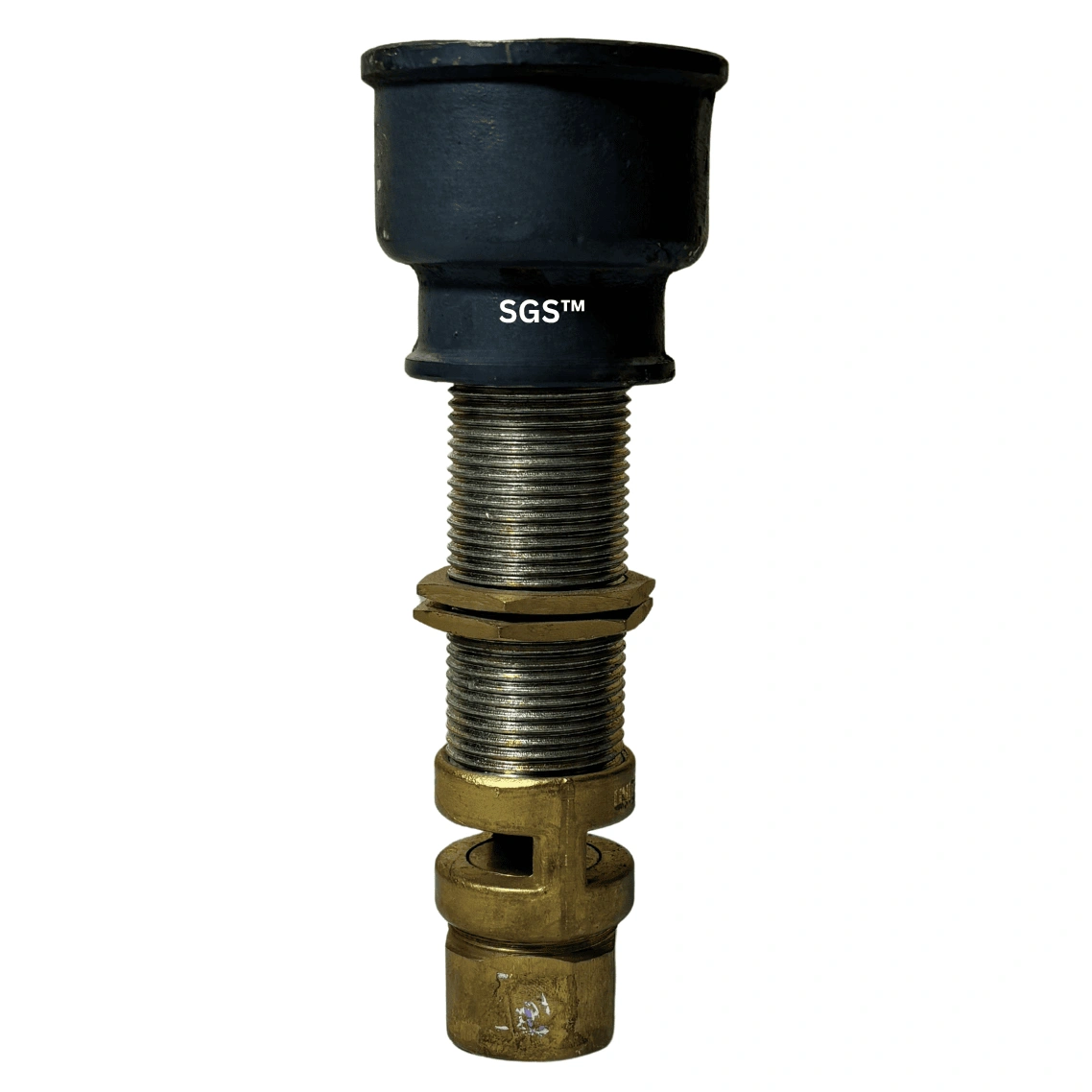

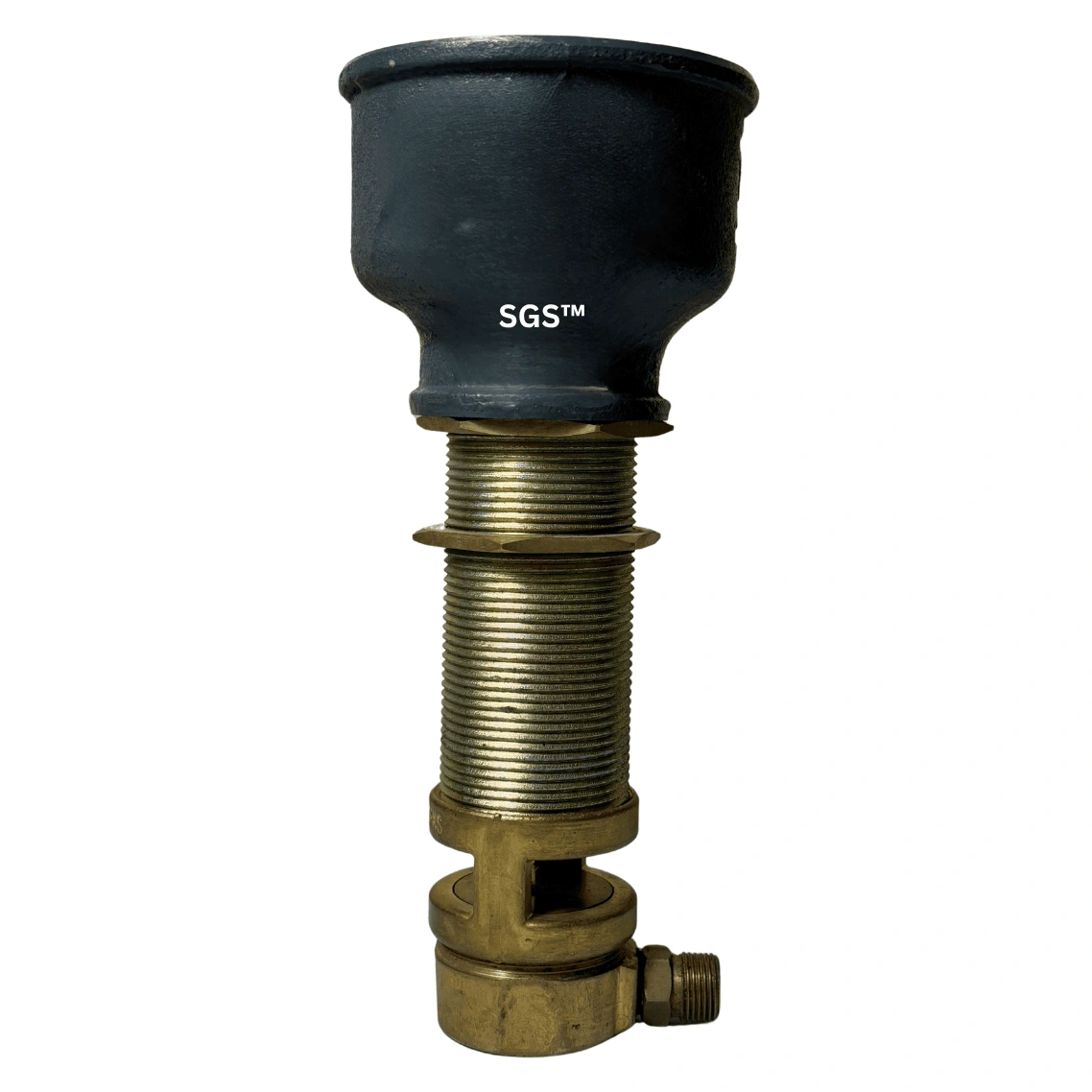

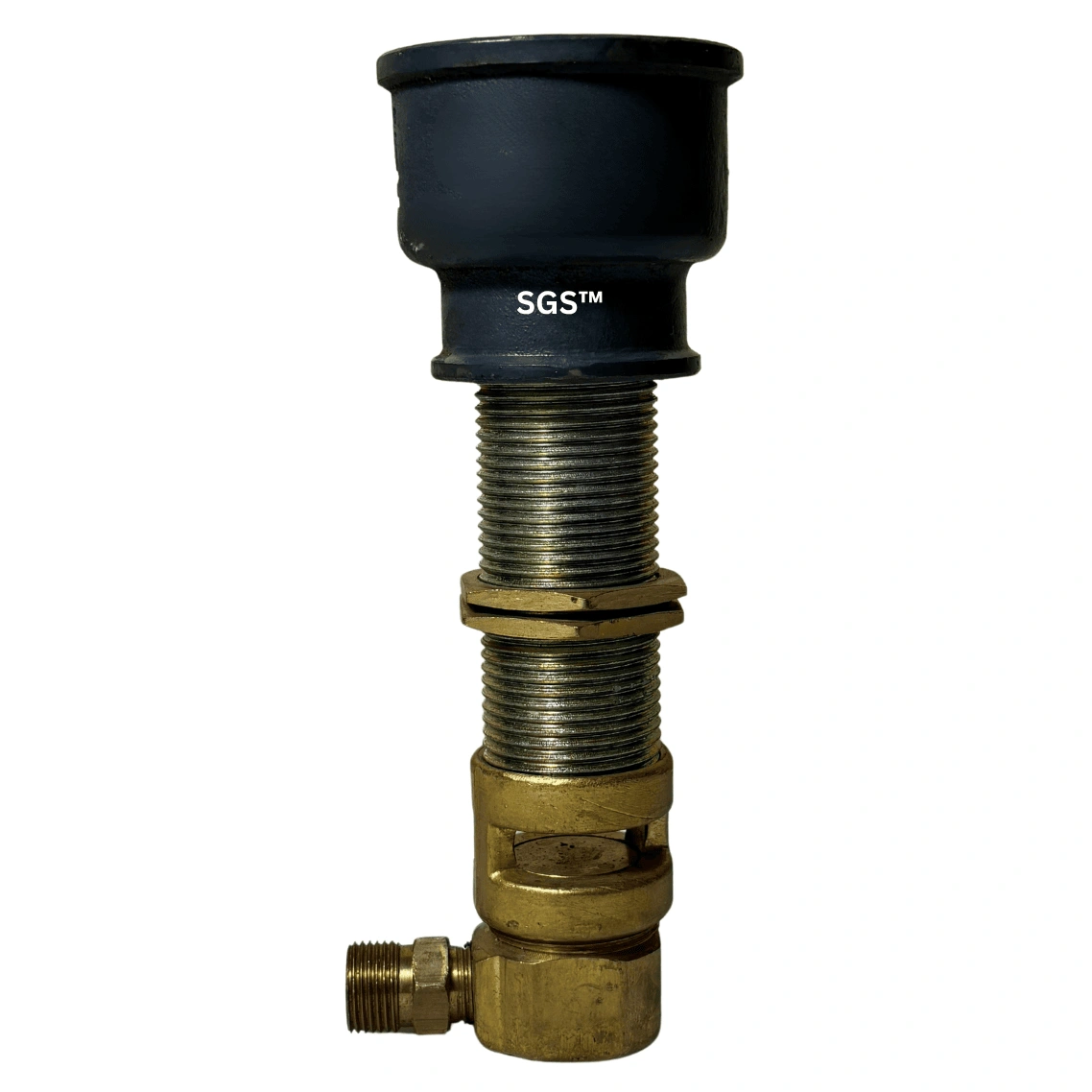

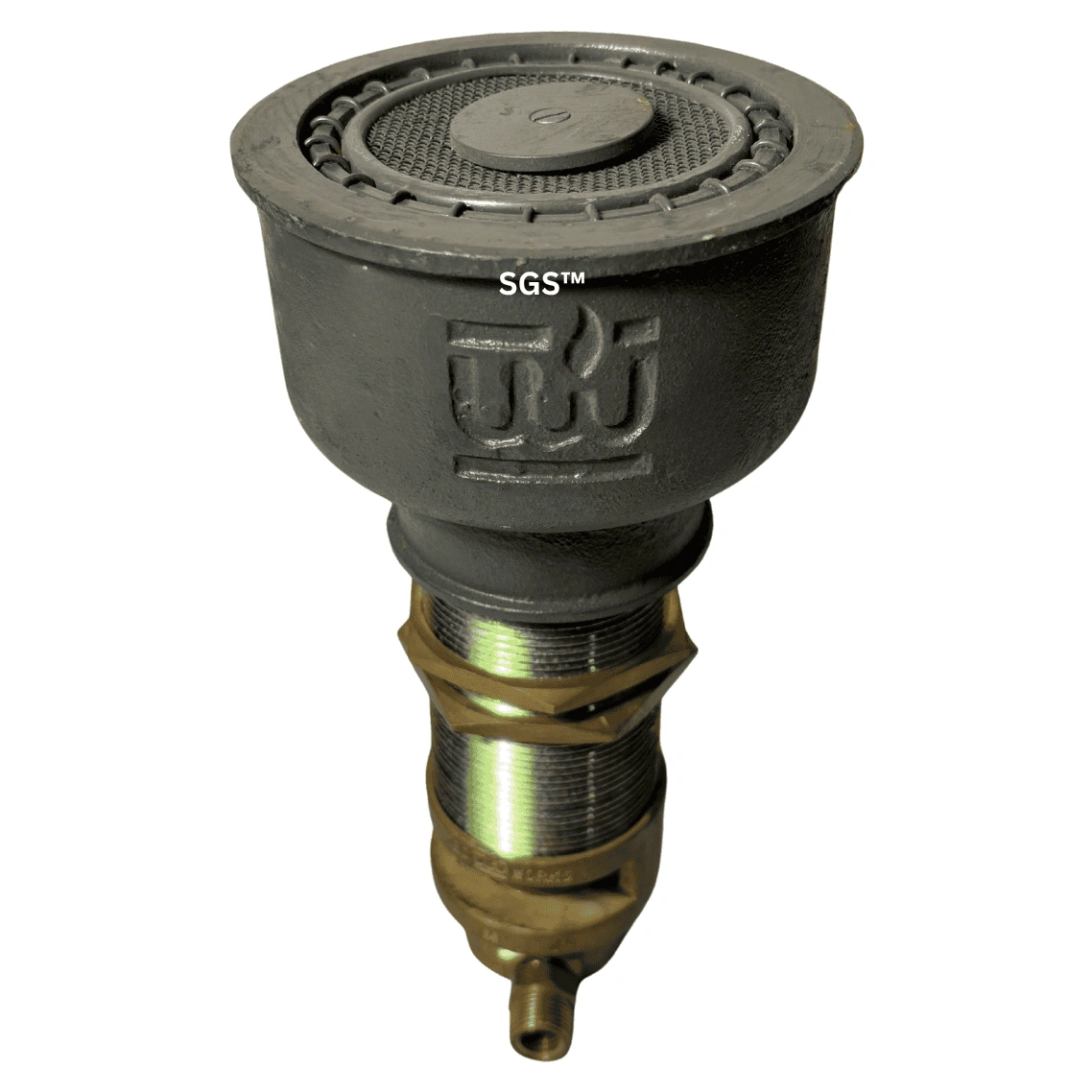

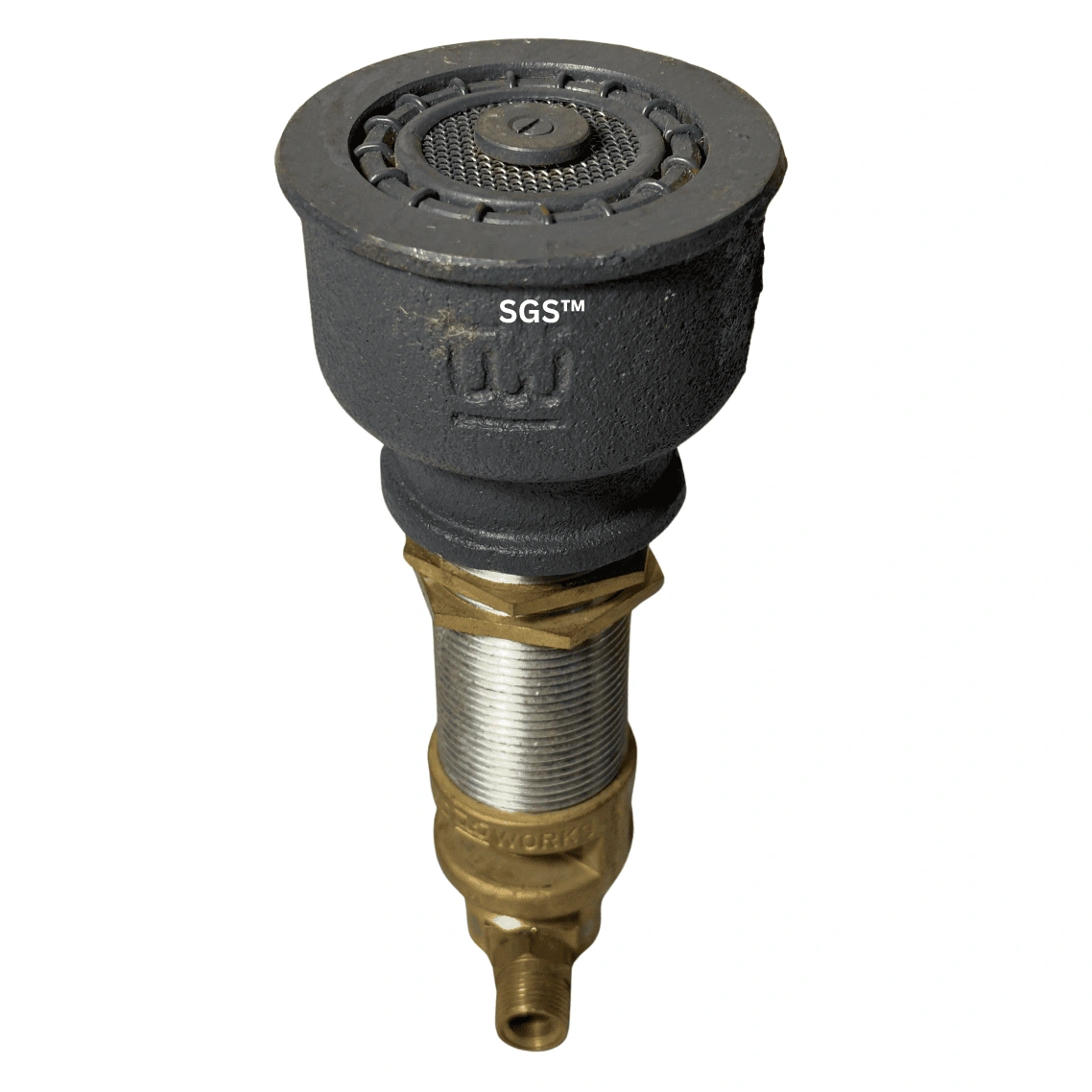

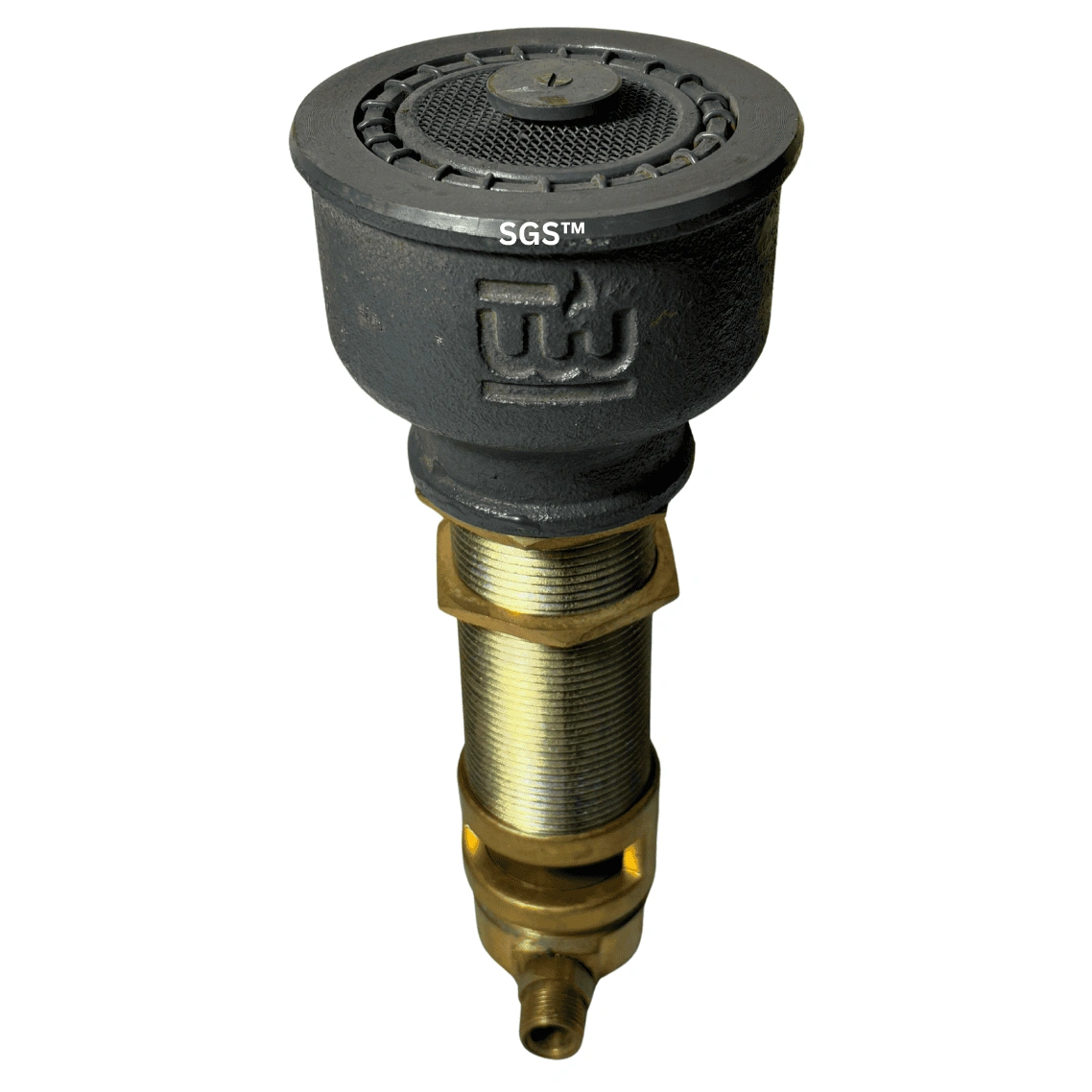

The United T-22 Burner is expertly designed for high-performance heating in industrial and commercial environments. Engineered with adjustable pressure settings and variable heat output, it ensures precise control and exceptional efficiency for a wide range of applications.
Recommended Pressure:
Adjustable Pressure Range:
Variable Heat Output:
Versatile Applications:
MODEL NO. | APPROX. WEIGHT | DIMENSIONS | OPTIMUM WORKING PRESSURE | CONSUMPTION PER HOUR | RATED HEATED OUTPUT | ||||||
LENGTH | HEAD DIAMETER | ||||||||||
kgs | mm | ins | mm | ins | kg/cm2 | psig | kgs | lbs | kcal/hr | btu/hr | |
T-22 | 1.00 | 185 | 7.28 | 63 | 2.48 | 0.3 | 4.5 | 0.9 | 2.0 | 10,100 | 40,000 |
T-35 | 1.62 | 200 | 7.87 | 83 | 3.27 | 0.3 | 4.5 | 1.58 | 3.5 | 17,650 | 70,000 |
T-50 | 2.00 | 230 | 9.05 | 96 | 3.78 | 0.3 | 4.5 | 2.24 | 5.0 | 25,200 | 1,00,000 |
T-78 | 3.02 | 245 | 9.65 | 115 | 4.53 | 0.3 | 4.5 | 3.56 | 7.8 | 40,350 | 1,60,000 |
