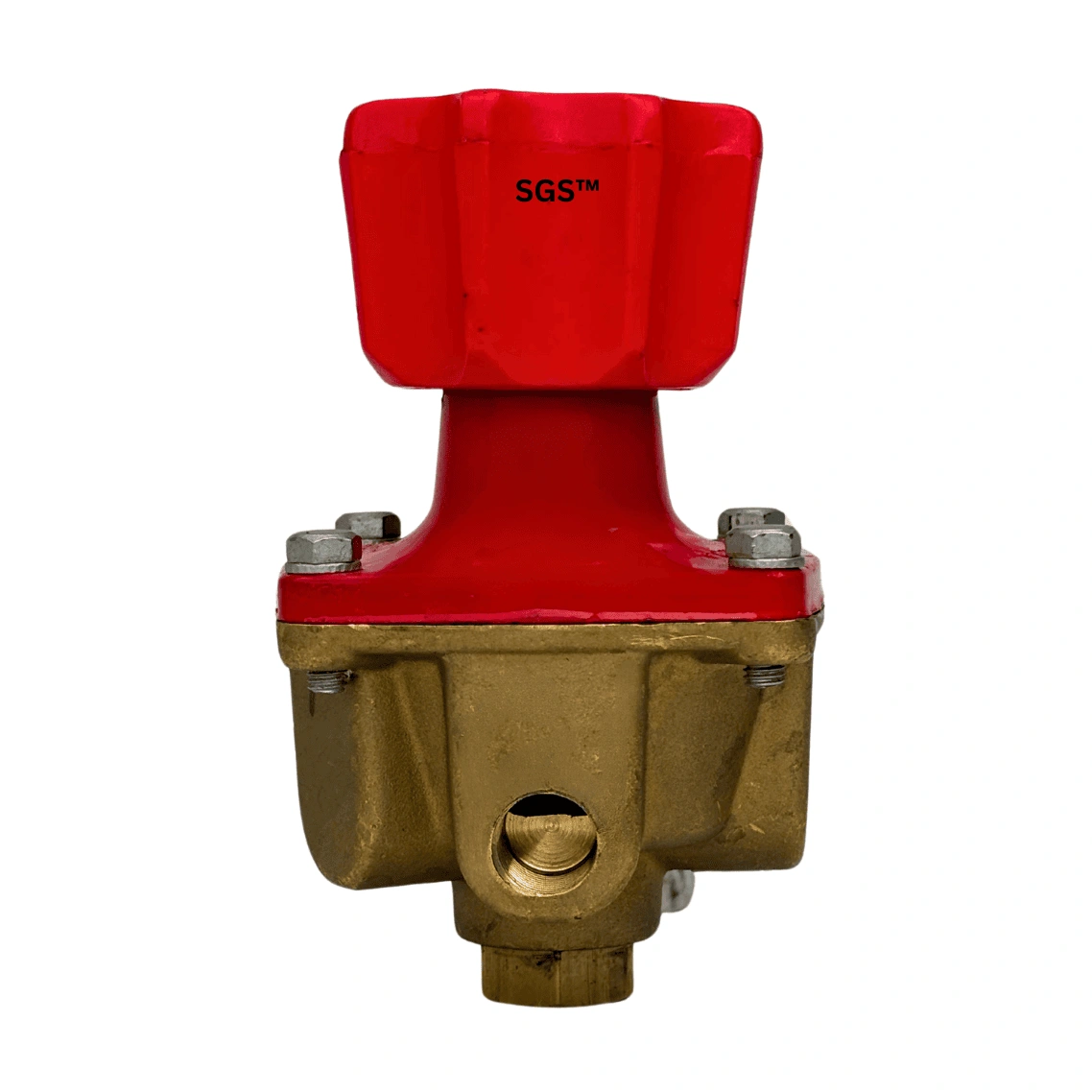

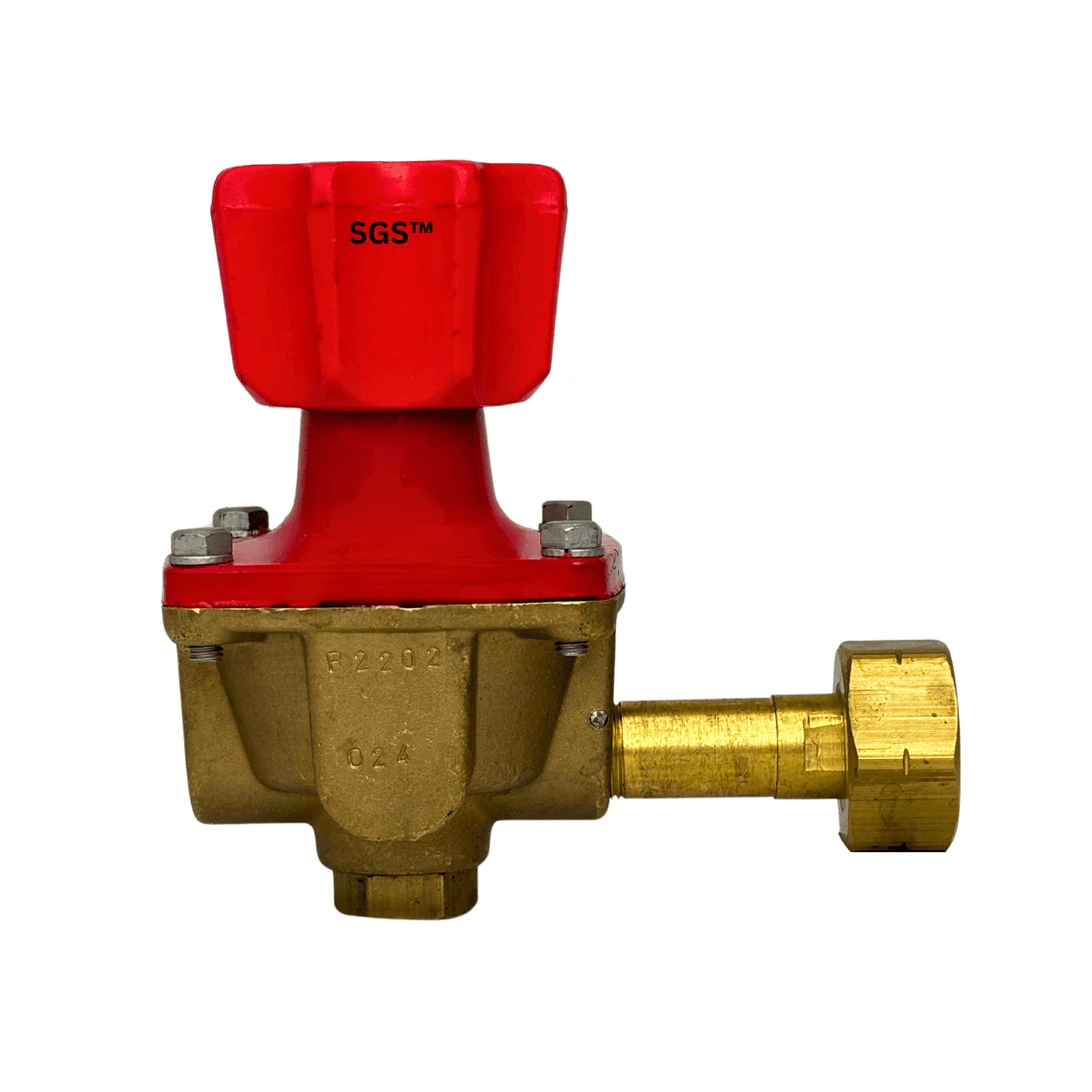

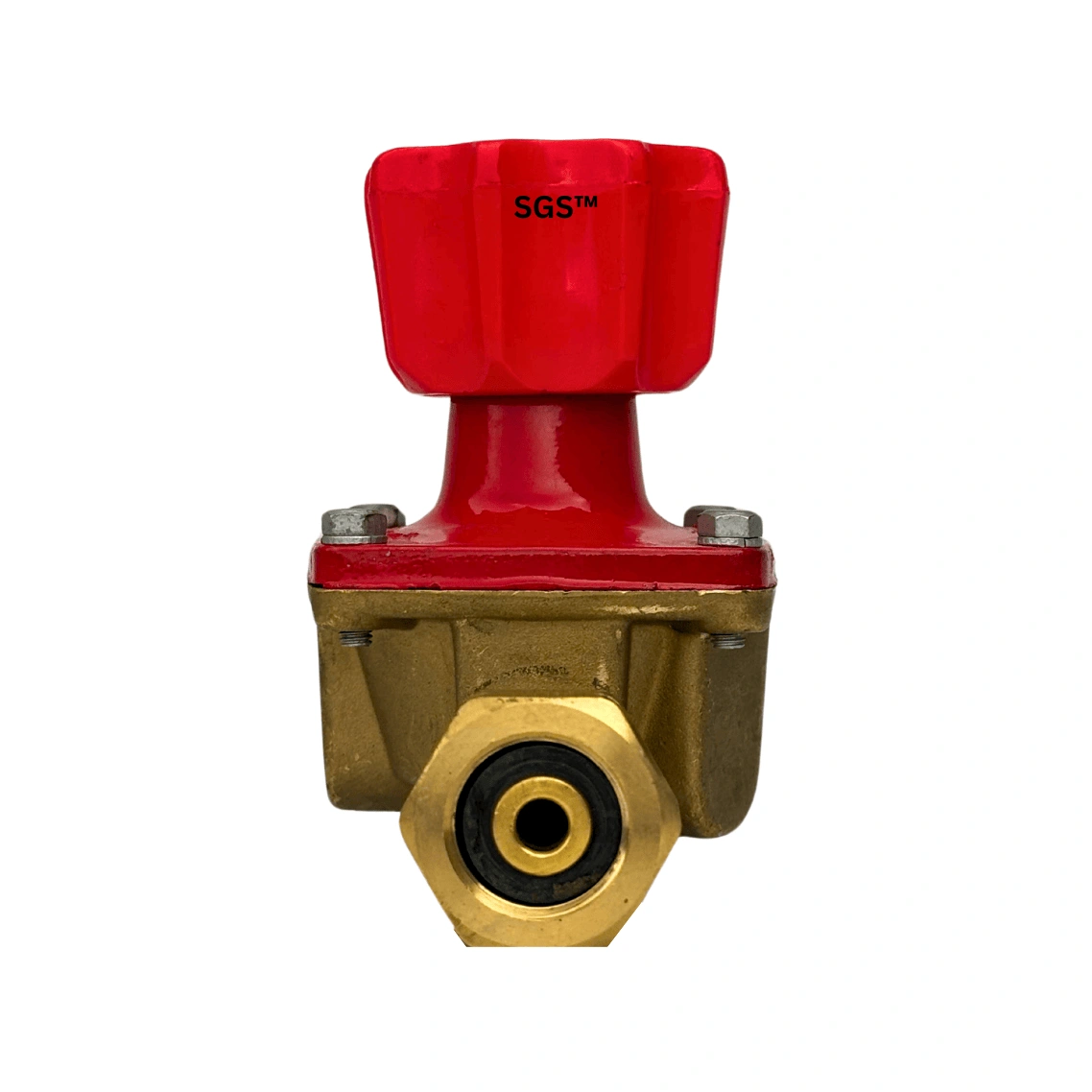

The Vanaz R-2202 B Brass Regulator is developed for applications requiring adjustable gas pressure control with low-flow operation across commercial and light industrial environments.
Designed with a wide outlet pressure adjustment range, the regulator allows users to control gas pressure conveniently using the spring adjustment mechanism. Pressure can be adjusted according to operational requirements by rotating the knob—anticlockwise to reduce outlet pressure and clockwise to increase outlet pressure.
Built with brass construction for dependable operation and durability, the regulator supports stable gas flow and controlled pressure management across compatible LPG and natural gas systems.
The Vanaz R-2202 B is commonly used where reliable pressure adjustment and efficient gas utilization are important for day-to-day operations.
Its application suitability makes it a practical choice for food service environments and smaller heating installations.
Supports flexible pressure control through an easy adjustment mechanism.
Designed for applications requiring controlled and stable gas supply.
Built for durability and dependable long-term performance.
Allows pressure settings to be tuned according to operational requirements.
Supports smooth downstream pressure performance.
The Vanaz R-2202 B Regulator is designed to combine flexible pressure adjustment with dependable low-flow gas management.
Its adjustable operation, stable gas delivery, and suitability for LPG and natural gas environments make it a reliable choice for commercial cooking and smaller heating applications.
It is used for adjustable gas pressure regulation in LPG and natural gas applications.
Yes, outlet pressure can be adjusted using the spring adjustment mechanism.
Rotate the knob anticlockwise to reduce pressure and clockwise to increase pressure.
It is commonly used in canteens, restaurants, and small furnace environments.
It is suitable for LPG and natural gas systems.
The inlet, outlet, and flow rate may be variable or available as per requirement.
Name | Inlet Pressure | Outlet Pressure | Flow Capacity | Gas | End Connection |
R-2202 | 0.5 - 17 Kg/cm2 (or as per requirement) | 0.2 - 2 Kg/cm2 (or as per requirement) | 25 Nm3/hr (or as per requirement) | LPG, Nitrogen, Natural, CO2, Argon | Inlet: 21.8x14 TPI L.H. Union Nut or 1/4" / 3/8" / 1/2" BSP (INT/EXT) Outlet: 1/4" / 3/8" / 1/2" BSP (INT/EXT) |
