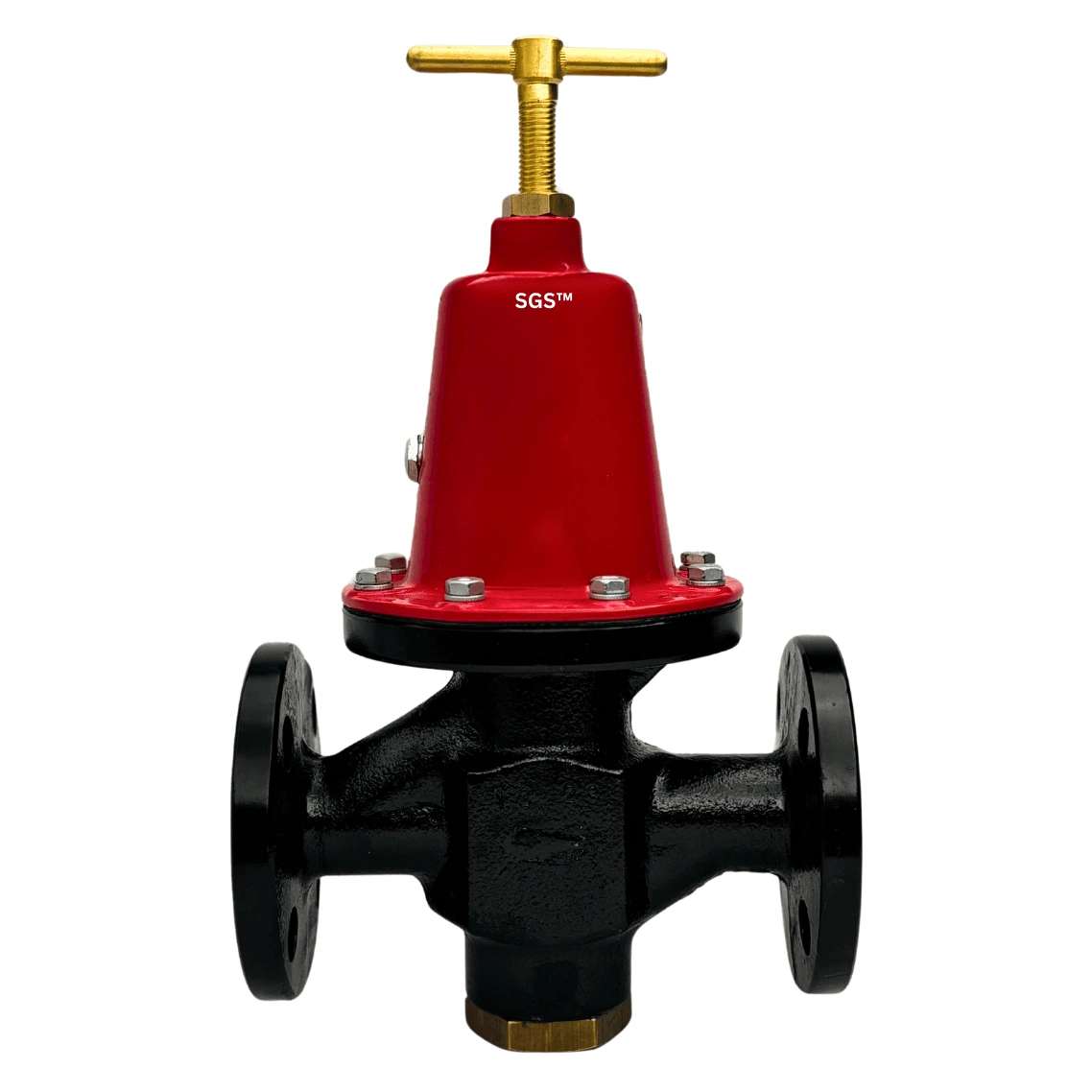

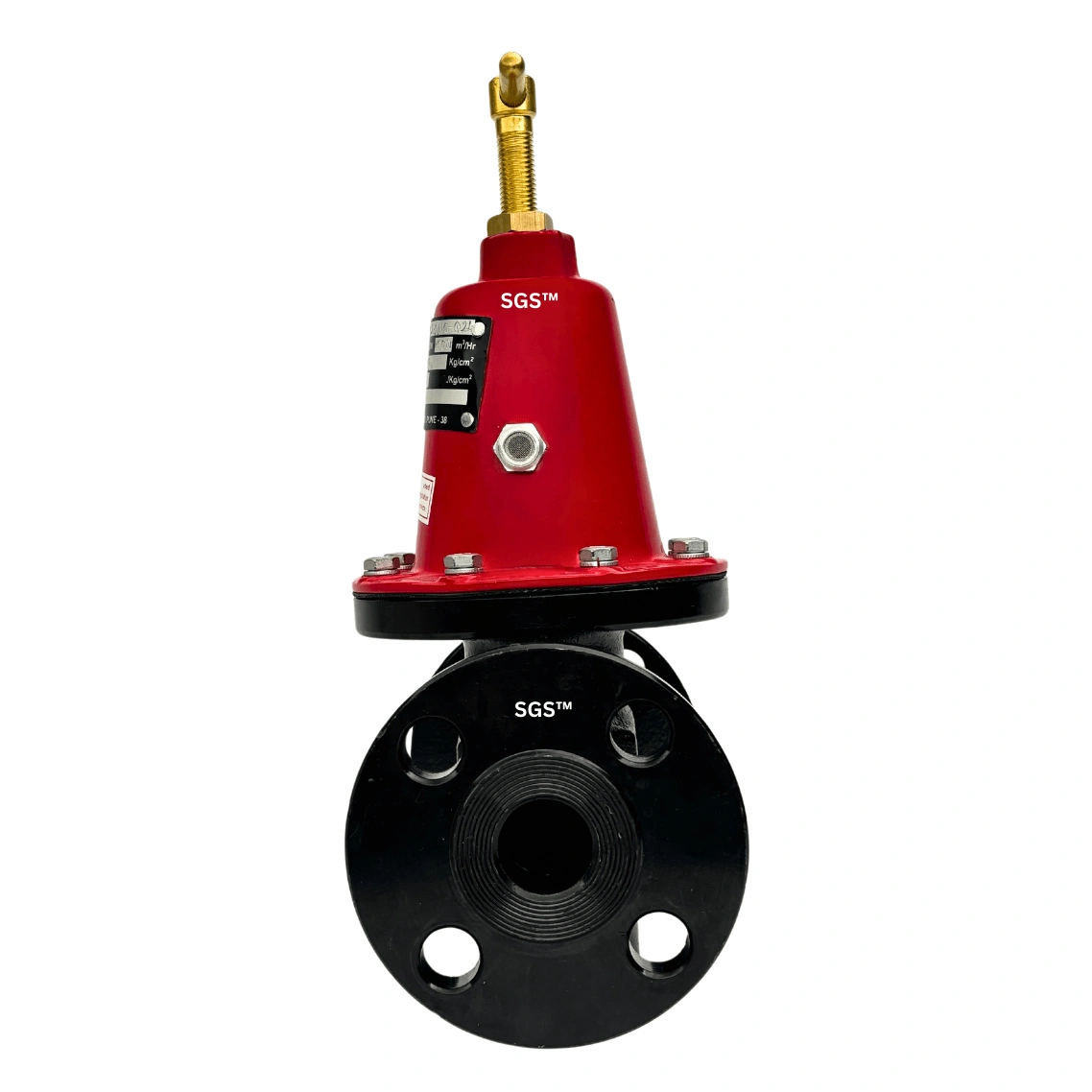

The Vanaz R-2323 Regulator is developed to deliver controlled gas pressure reduction and dependable gas flow management for industrial and commercial installations.
Designed as a first-stage pressure regulator, this model helps reduce higher inlet pressure before final gas distribution, supporting efficient downstream performance and system stability.
The regulator provides a wide outlet pressure adjustment range, allowing pressure to be configured according to operating requirements.
Pressure adjustment is performed using the spring adjustment mechanism—rotating the knob anticlockwise lowers outlet pressure while clockwise rotation increases outlet pressure, enabling practical pressure management.
Featuring a 25MM flange connection, the regulator supports secure installation and dependable integration into gas distribution systems.
Its design makes it suitable for applications requiring stable pressure control and efficient gas utilization across LPG and natural gas environments.
Helps regulate incoming gas pressure before final distribution.
Supports flexible pressure management for varying applications.
Allows dependable pressure configuration.
Provides secure and efficient system integration.
Built for long-term performance and dependable operation.
The Vanaz R-2323 combines dependable first-stage regulation with adjustable outlet pressure and secure flange installation.
Its controlled pressure performance and suitability for LPG and natural gas systems make it an effective solution for industrial and commercial gas applications.
It is used as a first-stage pressure regulator in LPG and natural gas systems.
Yes, pressure can be adjusted through the spring adjustment mechanism.
Rotate anticlockwise to reduce pressure and clockwise to increase pressure.
Yes, it features a 25MM flange connection.
It offers dependable gas regulation, flexible pressure adjustment, and durable performance.
The inlet, outlet, and flow rate may be variable or available as per requirement.
Name | Inlet Pressur | Outlet Pressure | Gas Flow Rate | Gas | End Connection |
R-2323 | 1 - 17 Kg/cm2 (or as per requirement) | 0.5 - 10 Kg/cm2 (or as per requirement) | 100 Nm3/hr (or as per requirement) | LPG, Natural, Nitrogen | 1" NB Flanged as per ANSI 150 # |
